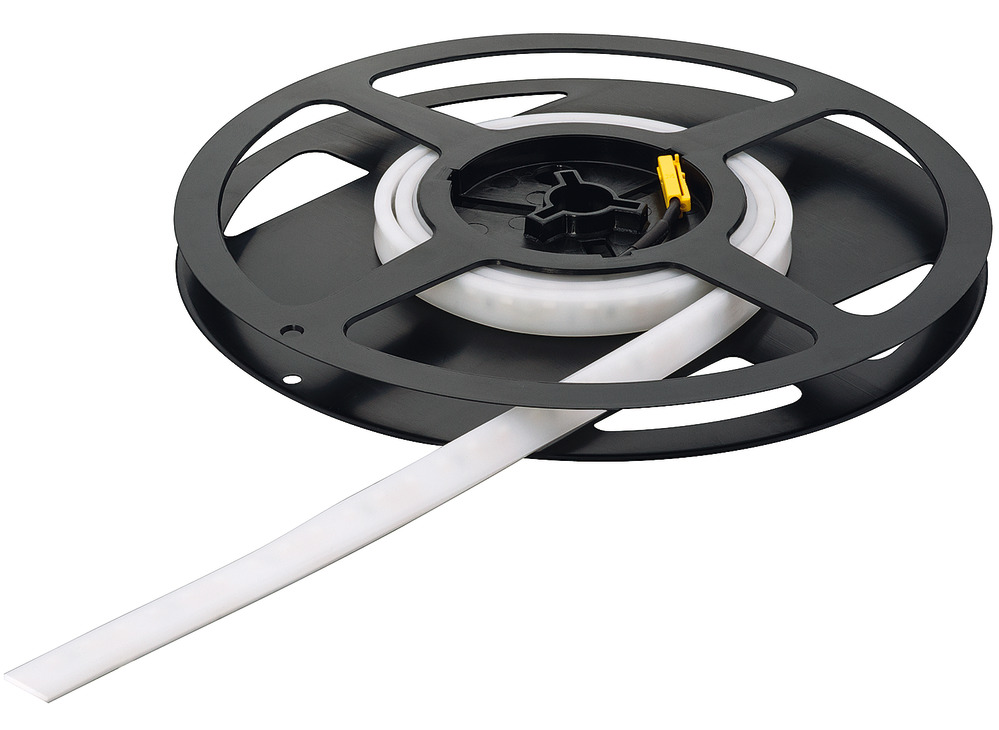

Hafele 833.74.262 Hafele Loox5 LED 2099 Flexible Edge Lit Silicone Strip Light, 12VHafele 833.74.262 Flexible Edge Lit Silicone Strip Light is designed to elevate your spaces with its innovative recessed installation capabilities. Ideal for display cabinets, working areas, and representative furnishings, this 3-meter LED strip light emits a cool white glow at 4000 K, ensuring a bright and inviting atmosphere. With a density of 120 LEDs per meter and a luminous efficacy of 56 lm/W, it offers an impressive luminous flux of 540 lm/m. This strip light features a flexible silicone design that allows for seamless integration into a 4 x 10 mm groove, enabling curved applications with a minimum bending radius of just 30 mm (1 3/16"). The light mounts flush with the panel, providing a sleek, modern aesthetic without visible LED dots. With an IP44 rating, it is suitable for various environments, ensuring durability and protection against moisture. Dimmable for versatile lighting scenarios, the Hafele 833.74.262 operates on a 12 V nominal voltage and consumes 9.6 W/m. It includes a 200 mm (8") lead cable on each end, allowing for easy installation. For enhanced mounting options, consider supplementing with Hafele silicone LED mounting clips (available separately). Transform your lighting solutions with this efficient, stylish strip light from Hafele.
Flexible Edge Lit Silicone Strip Light, Hafele Lighting LED 2099, 12 V
for groove 4 x 10 mm, 120 LEDs/m, 9.6 W/m, IP44, cool white 4000 K, 3 m, energy efficiency class G
The light emits from the edge of the ribbon, no LED dots visible Designed for recessed installation in a 4 mm wide groove Mounts flush with the panel Flexible silicone allows for curved applications (radius min. 30 mm (1 3/16")
Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A directly following strip section with a new infeed is noticeably lighter. Maximum wattage-dependent strip length on the driver, see Technical data for LED strip lights. A 200 mm (8") lead cable (3.5 A / 20 AWG) is soldered on each end of the roll. Strip can be divided into two sections.
Attributes

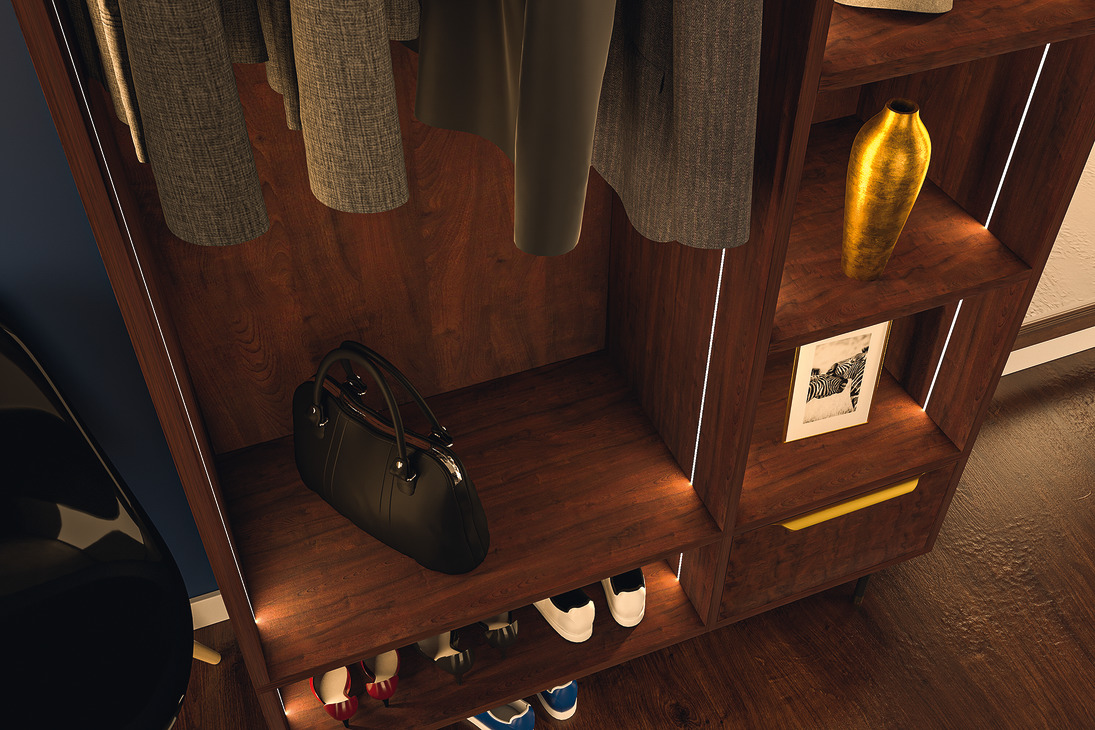

Area of application: Display cabinets and representative furnishing, Storage spaces, Working areas
Cable length: 200.00 mm
Color: White
Color temperature: 4,000 K
Contact surface length: 6.00 mm
Degree of protection: IP44
Dimmable: yes
Energy efficiency class: G
Height (inch): Silicone sleeve: (5/32")
Installation: For recess mounting, For press fitting
Installation reference: For embedding in routed channel
Light color: Cool white
Luminous efficacy: 56 lm/W
Luminous flux/m: 540 lm
Material: Silicone
Max. strip length (visual): 3.00 m
Min. bending radius: 30.00 mm
Nominal voltage: 12.00 V
Order reference: Silicone LED mounting clips, 824.19.423 are available for supplementing self-adhesive mounting for silicone LED strips or for securing cables to provide strain relief. Please order separately.
Routing depth: 10.00 mm
Routing width: 4.00 mm
Section length: 25.00 mm
Silicone hose height: 4.00 mm
Silicone tube finish: matt
Silicone tube width: 10.00 mm
Strip length: 3.00 m
Supplied with: 1 LED strip light with 2 x 0.2 m soldered lead 3.5 A/20 AWG (1 each on the left/right of the strip). Strip can be divided into 2 sections.
Wattage/m: 9.60 W
Width (inch): Strip: (5/16"); Silicone Sleeve: (3/8")
