Flexible Slim6 Silicone, Hafele Lighting LED 3084 24 V, Medium Intensity
COB 6.5 x 6 mm, 2-pin (monochrome), 320 LEDs/m, 9.6 W/m, IP44, cool white 4000 K, strip light length 3 m (118 7/64"), lead 2 x 1 m

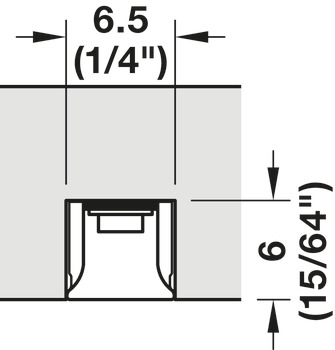

For recessed installation in a 6.5 mm (1/4") wide x 6 mm (15/64") deep channel Mounts plush with panel Flexible silicone allows for curved applications (radius min. 30 mm (1 3/16") LED dots are not visible

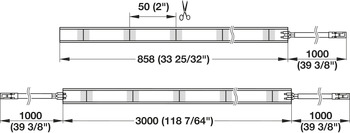

Cut marks visible on back of ribbon: - Can be shortened every 50mm (2") - 0.85 m (33 25/32") roll is supplied with a 1 m (39 3/8") lead cable soldered on one end - 3 m (118 7/64") roll is supplied with a 1 m (39 3/8") lead cable soldered on each end. The strip can be divided into two sections.
Ready to install. No additional profiles or leads required. Use 1/4" router bit
Maximum strip length (visual) 3.5 m (138") describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A directly following strip section with a new infeed is noticeably lighter. Maximum wattage-dependent strip length on the driver, see Technical data for LED strip lights.
Attributes

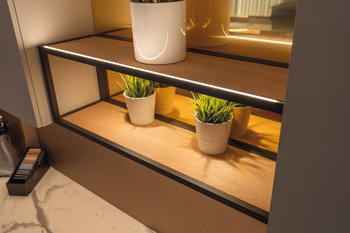

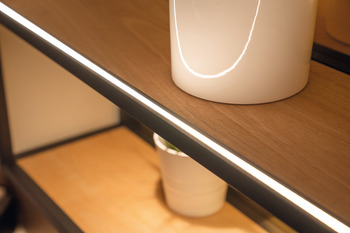

Area of application: Display cabinets, Storage spaces
Cable length: 1,000.00 mm
Color: White
Color temperature: 4,000 K
Contact surface length: 6.00 mm
Degree of protection: IP44
Dimmable: yes
Installation: For recess mounting, For press fitting
Installation reference: After cutting the silicone tube, a seal is required to restore the degree of protection IP44.
Length (inch): 118 7/64"
Light color: Cool white
Material: Silicone
Max. strip length (visual): 3.50 m
Min. bending radius: 15.00 mm
Routing depth: 6.00 mm
Routing width: 6.50 mm
Section length: 50.00 mm
Silicone hose height: 6.00 mm
Silicone tube finish: matte
Silicone tube width: 6.50 mm
Strip length: 3.00 m
Supplied with: 0.85 m (33 25/32") roll; 1 LED strip with one attached 1 m (39 3/8") lead 3 m (118 7/64") roll; 1 LED strip with two attached 1 m (39 3/8") leads
Wattage/m: 9.60 W
