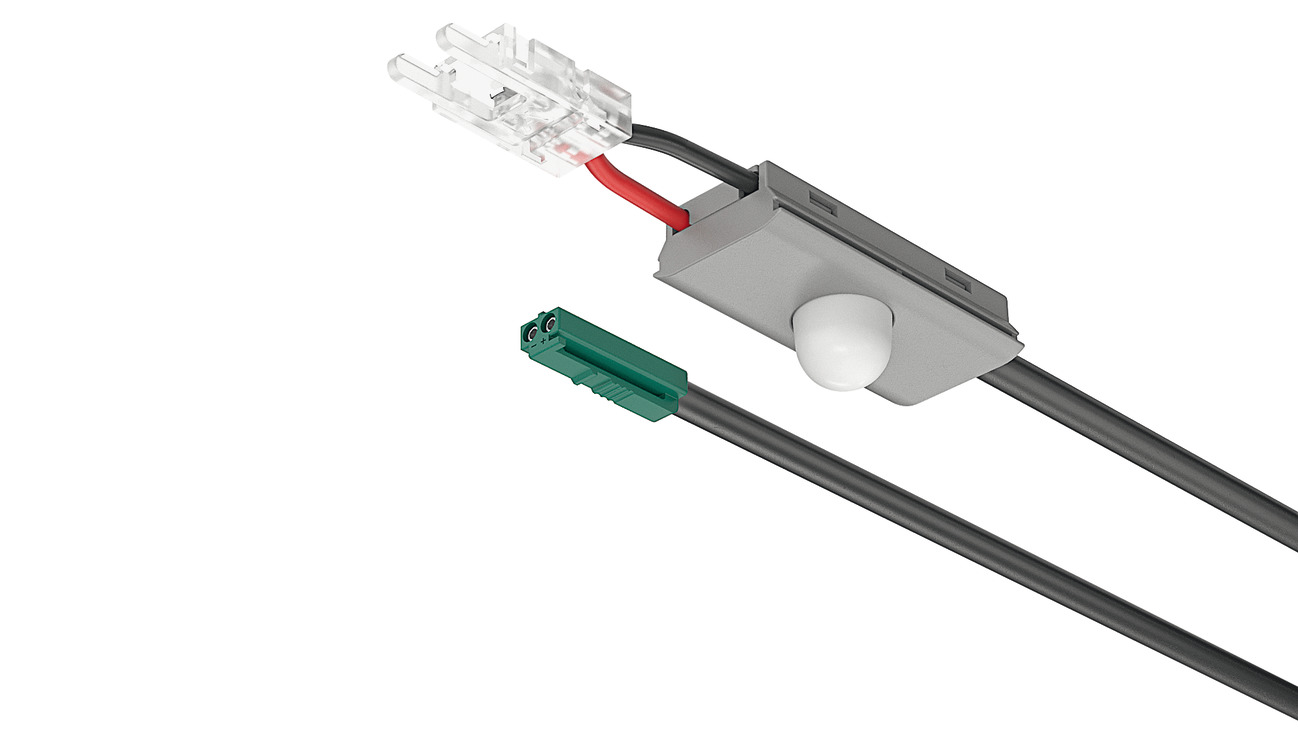

Hafele 833.77.835 Motion Detector is designed to enhance your lighting experience with its automatic on/off switching feature. Operating at a low voltage of 24 V, this reliable sensor can support a maximum connected wattage of 90 W, making it ideal for use with monochrome 8 mm (5/16") LED strip lights installed in aluminum profiles with a 16 mm (5/8") internal width. With a sensor range of up to 2,500 mm and a 90° sensor angle, this motion detector ensures efficient activation of your lighting, providing convenience and energy savings. The unit features a compact design, measuring 36 x 17 x 15 mm, and is crafted from durable plastic with a sleek silver finish. Installation is straightforward, utilizing clamp fixing without the need for complex setups. Included with the motion detector is a 2 m (78 3/4") lead and a switching function that operates automatically, eliminating the hassle of manual controls. The device comes with a plug for easy connectivity to Loox5 2-pin 24 V systems. Please note, the motion detector should not be combined with COB or tunable white LED strip lights or other dimmers for optimal performance. Enhance your lighting control with Hafele's innovative solution.
Motion detector, Hafele Lighting, Monochrome 8 mm (5/16") Strip Lights in Aluminum Profiles
Automatic on/off switching, Voltage 24 V, max. connected wattage 90 W
Cannot be used with COB or tunable white LED strip lights. Do not combine with other dimmers.
Area of application: For use with monochrome 8 mm (5/16") LED strip lights in aluminum profiles with 16 mm (5/8") internal width
Cable length: 2,000.00 mm
Color/finish: Silver colored
Connected output ports: 1 x Clip, Loox5 LED strip light 8 mm monochrome
Delay time: 30 s
Dim. ( L x W x H): 36 x 17 x 15 mm
Drill hole Ø: Plug 5/16"
Input ports: 1 x plug, Loox5 2-pin 24 V
Installation: For clamp fixing
Length: 36.00 mm
Low voltage plug: Loox5 2-pin 24 V
Material: Plastic
Memory function: No
Number of input ports: 1 x plug
Plug drill hole Ø: 8.00 mm
Power rating: 90.00 W
Sensor angle: 90.00 °
Sensor range: 0 – 2,500 mm
Suitable for: Profile 1190, Profile 1191, Profile 1192, Profile 1194, Profile 2190, Profile 2191
Supplied with: 1 switch with clip/plug and 2 m (78 3/4") lead
Switching function: automatic on/off
Version: Automatic on/off switching
Vertical sensor bracket: 110.00 °
Wattage: 90 W
