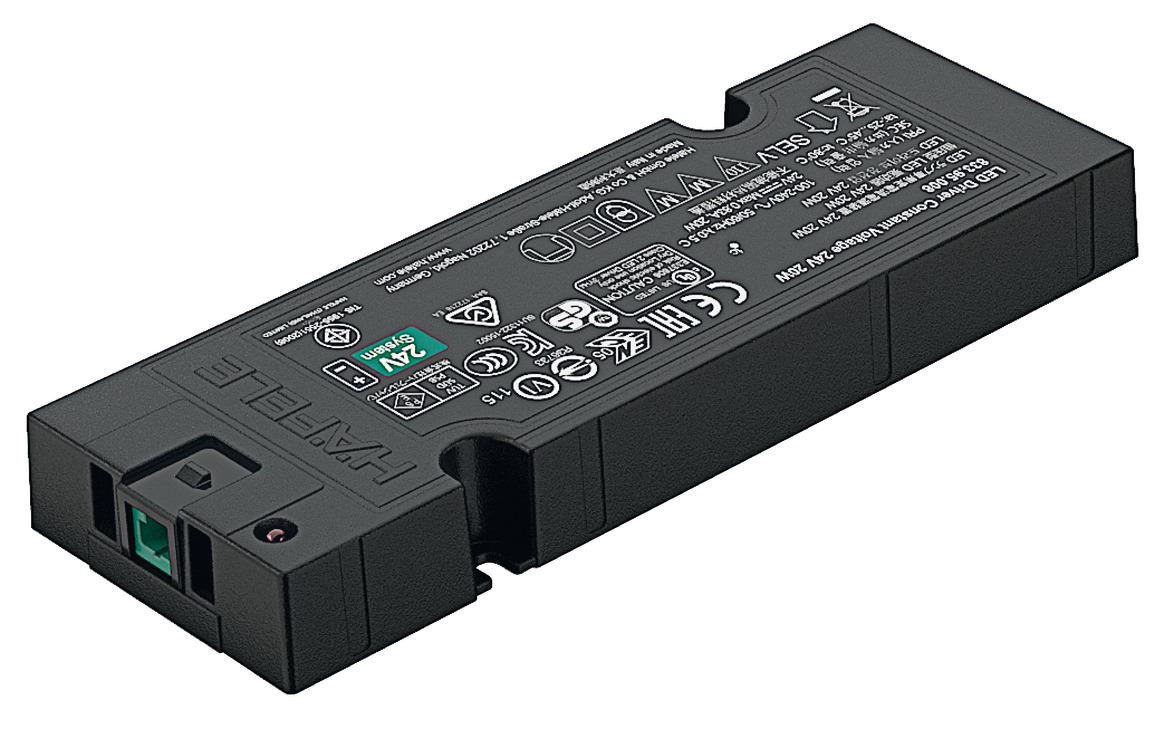

Hafele 833.86.559 Hafele 24V Constant Voltage Lighting Driver

Hafele 833.86.559 Driver offers a reliable and efficient power solution for your LED lighting needs. Designed with a constant voltage of 24 V, this driver delivers an output power of 20 W, ensuring optimal performance for various applications. Its compact profile, measuring only 16 mm in height, makes it easy to install in tight spaces while maintaining a sleek appearance. The driver features a 90° power cord with a C7 socket, promoting flexibility during installation. With a maximum lead length of 10,000 mm, it accommodates longer cable runs without compromising brightness, though users should be mindful of potential voltage losses with extensive setups. The driver operates within a safety Class 2 standard and has a degree of protection rated at IP20, ensuring it is suitable for indoor use. This driver is compatible with the Loox5 plug system, allowing for seamless integration with 24 V consumers. It operates efficiently across a mains voltage range of 100–240 V and is designed for ambient temperatures between -25 to 45 °C. Additionally, the Hafele 833.86.559 Driver is equipped with overload protection, enhancing its reliability and safety. Installation is straightforward with screws, ensuring a secure and efficient setup for your lighting projects.

Driver, Hafele Lighting, constant voltage 24 V

output power: 20 W, with 90 power cord with C7 socket

Maximum lead length from the Loox5 driver to the device is 10,000 mm (393 11/16"). Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver. (12V or 24V).

• Ensure that there is a sufficient air supply and circulation at the mounting location.
• Information on the ecodesign regulation (EU) No. 2019/1782 (external power supplies) Cat. No. 833.86.559 833.86.560 833.86.561 833.95.008 833.95.009 833.95.010 833.95.011 833.95.013 833.95.014 833.95.015 833.95.016 833.95.020 Mains voltage 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 220 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 220 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V Mains frequency 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz Output power 20 W 40 W 90 W 20 W 20 W 40 W 90 W 20 W 20 W 40 W 90 W 60 W Protection class II II II II II II II II II II II II Efficiency at 230 V full load 88 % 89 % 88 % 90 % 88 % 89 % 88 % 90 % 89 % Power consumption at 230 V no load 0.11 W 0.1 W 0.15 W 0.21 W 0.11 W 0.1 W 0.15 W 0.21 W 0.3 W Efficiency at 115 V full load 88 % 88 % 89 % 88 % 88 % 89 % 88 % Power consumption at 115 V no load 0.08 W 0.08 W 0.12 W 0.08 W 0.08 W 0.12 W 0.1 W Dimming capability not dimmable not dimmable not dimmable not dimmable Weight 100 g 84 g 182 g 353 g 100 g 84 g 182 g 353 g 248 g Disposal note Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations.
