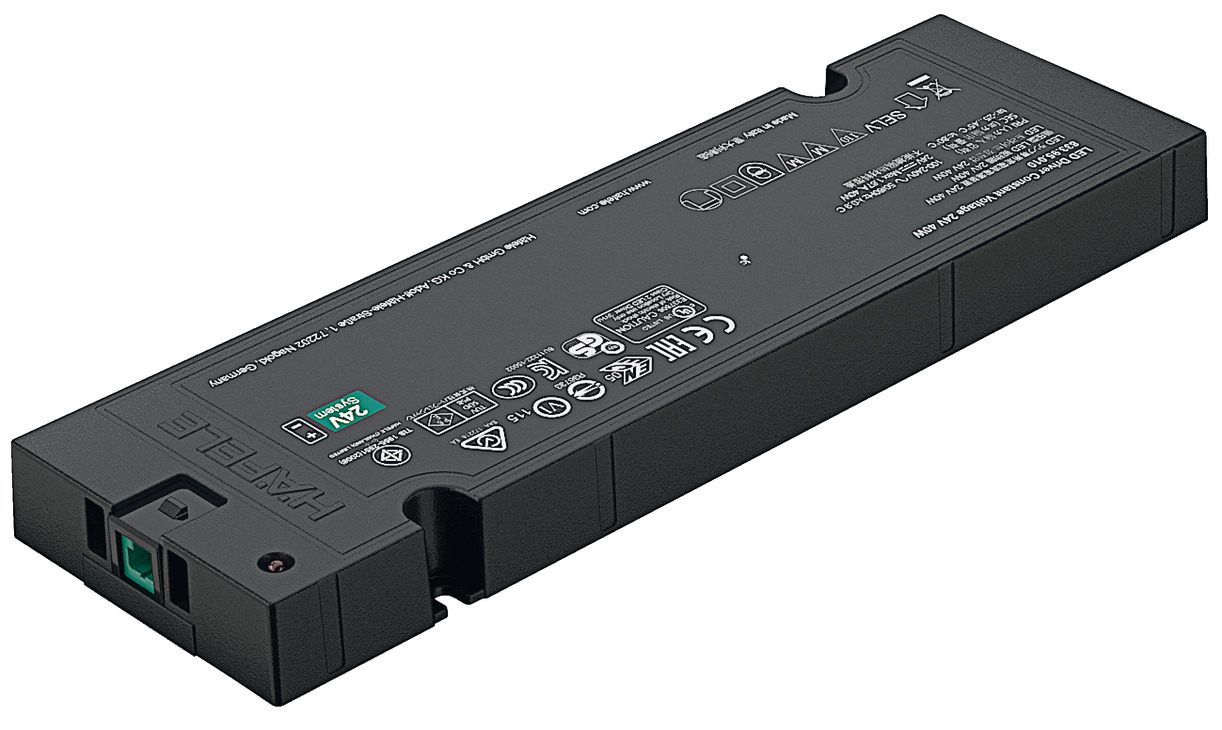

Hafele 833.86.560 Hafele 24V Constant Voltage Lighting Driver

Hafele 833.86.560 Driver is a powerful and efficient lighting solution featuring a constant voltage of 24 V and an output power of 40 W. This driver is designed with the innovative Loox5 generation plug system, allowing for seamless integration into your LED lighting setups. Measuring just 191 x 60 x 16 mm, its extremely flat profile makes it easy to install in various applications while maintaining a clean aesthetic. With a 90° power cord equipped with a C7 socket, the driver offers flexibility in positioning and ensures optimal connectivity. It operates within a mains voltage range of 100–240 V and a frequency of 50–60 Hz, making it suitable for diverse environments. The driver also features a safety class 2 rating and an IP20 degree of protection, ensuring reliable performance indoors. The maximum lead length from the Loox5 driver to connected devices is an impressive 10,000 mm (approximately 393 11/16"), though care must be taken with longer cable runs to prevent voltage loss and reduced brightness. This model includes overload protection, enhancing safety during operation. Designed for LED consumers with a Loox plug system, the Hafele 833.86.560 Driver is the ideal choice for lighting projects requiring reliability and efficiency.

Driver, Hafele Lighting, constant voltage 24 V

output power: 40 W, with 90 power cord with C7 socket

Maximum lead length from the Loox5 driver to the device is 10,000 mm (393 11/16"). Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver. (12V or 24V).

• Ensure that there is a sufficient air supply and circulation at the mounting location.
• Information on the ecodesign regulation (EU) No. 2019/1782 (external power supplies) Cat. No. 833.86.559 833.86.560 833.86.561 833.95.008 833.95.009 833.95.010 833.95.011 833.95.013 833.95.014 833.95.015 833.95.016 833.95.020 Mains voltage 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 220 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 220 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V Mains frequency 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz Output power 20 W 40 W 90 W 20 W 20 W 40 W 90 W 20 W 20 W 40 W 90 W 60 W Protection class II II II II II II II II II II II II Efficiency at 230 V full load 88 % 89 % 88 % 90 % 88 % 89 % 88 % 90 % 89 % Power consumption at 230 V no load 0.11 W 0.1 W 0.15 W 0.21 W 0.11 W 0.1 W 0.15 W 0.21 W 0.3 W Efficiency at 115 V full load 88 % 88 % 89 % 88 % 88 % 89 % 88 % Power consumption at 115 V no load 0.08 W 0.08 W 0.12 W 0.08 W 0.08 W 0.12 W 0.1 W Dimming capability not dimmable not dimmable not dimmable not dimmable Weight 100 g 84 g 182 g 353 g 100 g 84 g 182 g 353 g 248 g Disposal note Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations.
