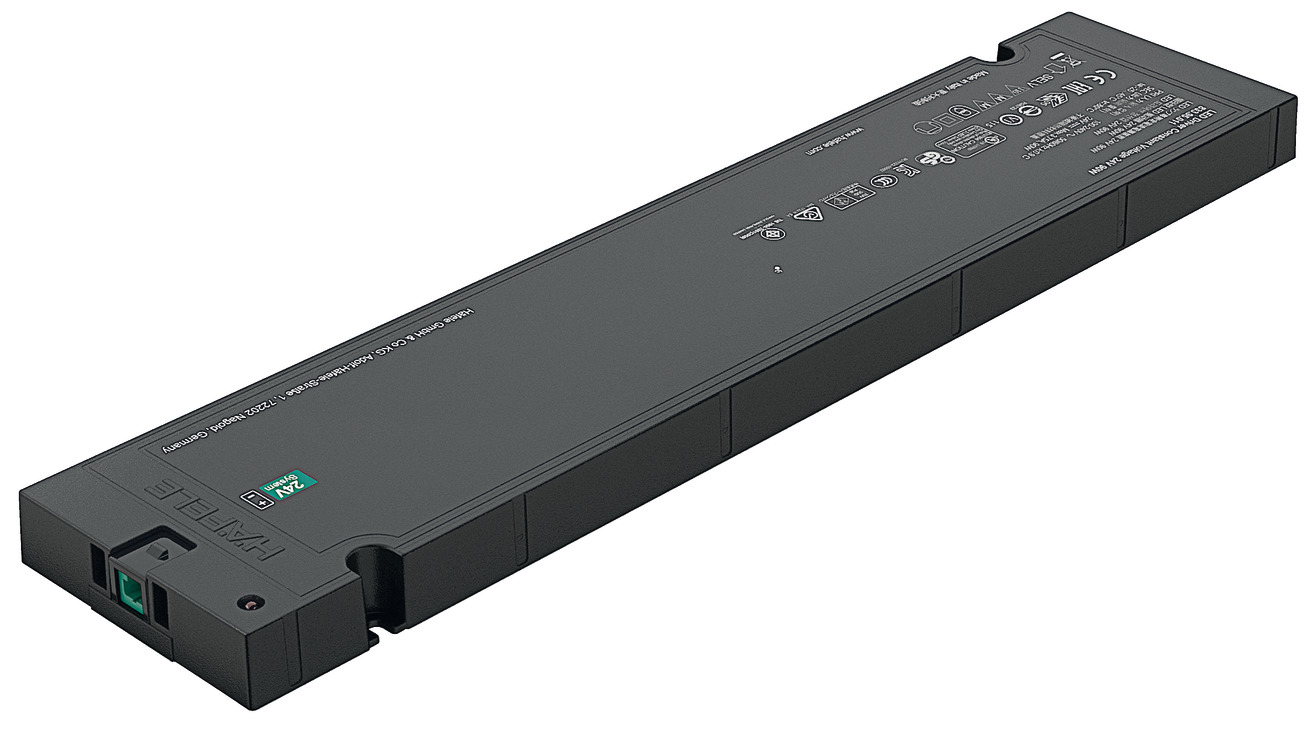

Hafele 833.86.561 Hafele Loox5 24V Constant Voltage Driver

Hafele 833.86.561 Driver offers an exceptional power solution for your lighting needs with its 90 W output. Designed specifically for the Loox5 generation plug system, this extremely flat driver measures just 16 mm in height, making it an unobtrusive addition to your installation. With a mains voltage range of 100–240 V and compatibility with a 90° power cord featuring a C7 socket, it ensures seamless integration into various setups. The driver operates within a safety class 2 and boasts an IP20 degree of protection, making it suitable for indoor applications. It supports a maximum lead length of 10,000 mm, allowing for flexibility in layout design. However, it is important to consider that longer lead lengths can impact voltage and brightness, particularly when using large loads, such as strip lights. Installation is straightforward with screws, and careful attention must be given to air supply and circulation at the mounting location to ensure optimal performance. The Hafele 833.86.561 Driver is not only reliable but also equipped with overload protection for added safety. With an ambient temperature range of -25 to 45 °C, this driver is built to perform in a variety of environments, making it an ideal choice for both professionals and discerning homeowners.

Driver, Hafele Lighting, constant voltage 24 V

output power: 90 W, with 90 power cord with C7 socket

Maximum lead length from the Loox5 driver to the device is 10,000 mm (393 11/16"). Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver. (12V or 24V).

• Ensure that there is a sufficient air supply and circulation at the mounting location.
• Information on the ecodesign regulation (EU) No. 2019/1782 (external power supplies) Cat. No. 833.86.559 833.86.560 833.86.561 833.95.008 833.95.009 833.95.010 833.95.011 833.95.013 833.95.014 833.95.015 833.95.016 833.95.020 Mains voltage 100 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 220 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V 220 – 240 V 100 – 240 V 100 – 240 V 100 – 240 V Mains frequency 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz Output power 20 W 40 W 90 W 20 W 20 W 40 W 90 W 20 W 20 W 40 W 90 W 60 W Protection class II II II II II II II II II II II II Efficiency at 230 V full load 88 % 89 % 88 % 90 % 88 % 89 % 88 % 90 % 89 % Power consumption at 230 V no load 0.11 W 0.1 W 0.15 W 0.21 W 0.11 W 0.1 W 0.15 W 0.21 W 0.3 W Efficiency at 115 V full load 88 % 88 % 89 % 88 % 88 % 89 % 88 % Power consumption at 115 V no load 0.08 W 0.08 W 0.12 W 0.08 W 0.08 W 0.12 W 0.1 W Dimming capability not dimmable not dimmable not dimmable not dimmable Weight 100 g 84 g 182 g 353 g 100 g 84 g 182 g 353 g 248 g Disposal note Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations.
