Hafele 833.94.119 Aluminum Profile, Hafele Loox5 Profile 2104 for LED strip lights is designed to elevate your lighting solutions with both functionality and style. Measuring 2500 mm (98 7/16") in length, this surface-mounted profile features an internal width of 11 mm (7/16"), making it compatible with LED strip lights up to 8 mm wide. The anodized silver finish adds a sleek touch, while the opal white diffuser ensures a uniform light distribution, effectively minimizing glare and eliminating visible points from 120 LEDs/m. The innovative asymmetrical design of the anti-glare shield allows for focused illumination, enhancing the ambiance of any space. For easy installation, slide-in 10 mm clips can be positioned from the side, with a maximum spacing of 500 mm between retaining clips. This profile is crafted from durable aluminum, paired with a polycarbonate diffuser, providing lasting quality and performance. Please note that mounting clips are mandatory and must be ordered separately to complete the installation. With a light permeability of 60-70%, the Hafele Loox5 Profile not only enhances aesthetics but also offers practical lighting solutions for both residential and commercial applications.

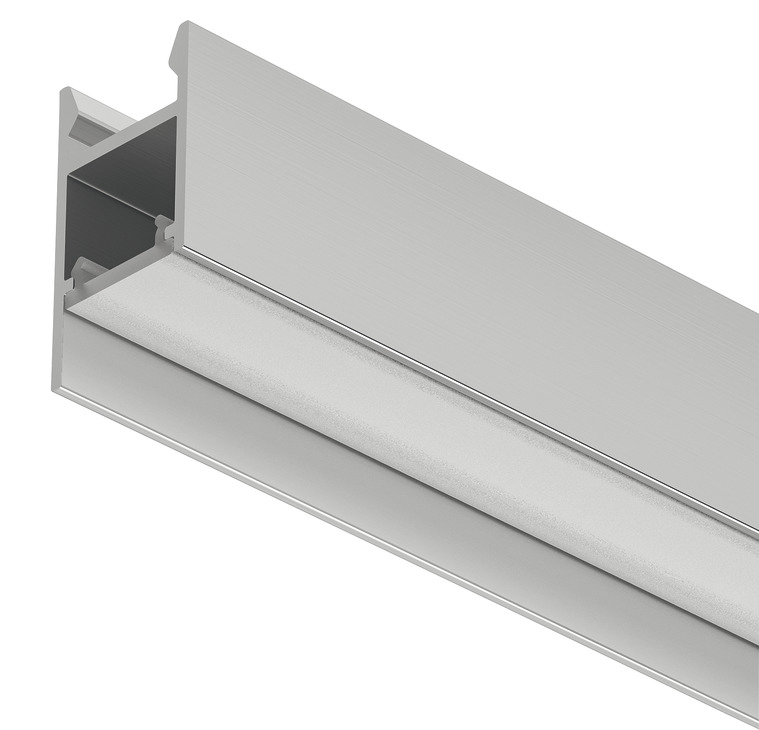

Aluminum Profile, Hafele Loox5 Profile 2104 for LED strip lights

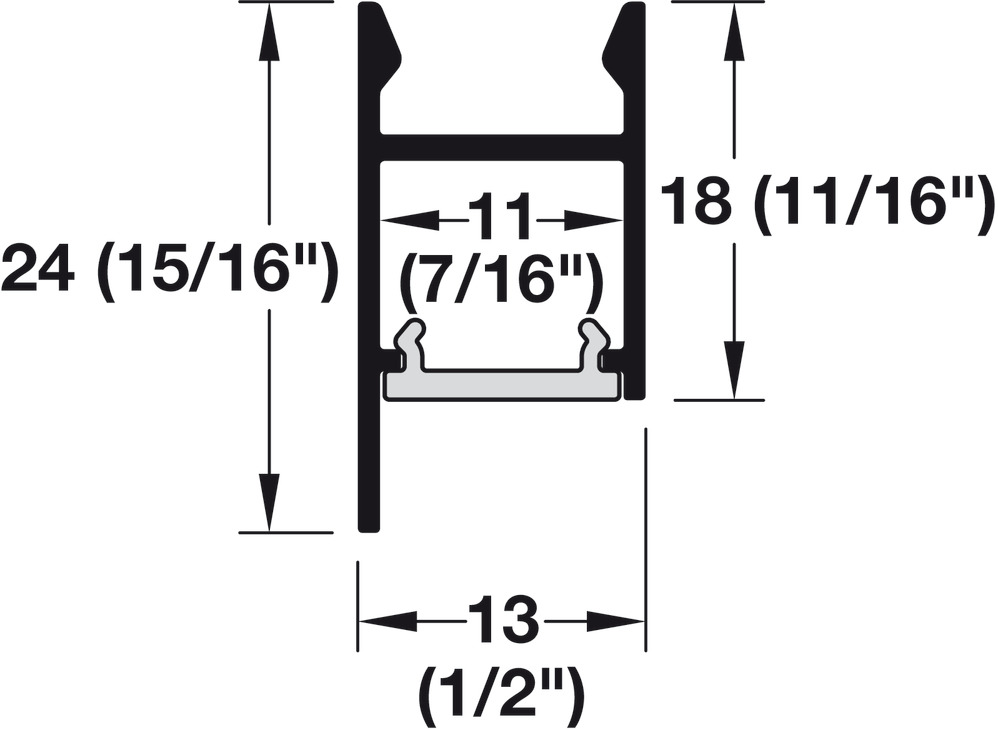

Internal width 11 mm (7/16"), Surface Mounted, Length: (98 7/16") 2500 mm, silver colored

For LED strip lights up to a width of 8 mm. Slide-in 10 mm wide clips from the side before installing the profile. Distance of retaining clips max. 500 mm. Diffuser The opal white diffuser creates a uniform light without points from 120 LEDs/ m. Points are visible with black version. If required, please order alternative diffusers in black or transparent separately.

Resources

• CAD data
• Loox – Electrical Code Compliance
