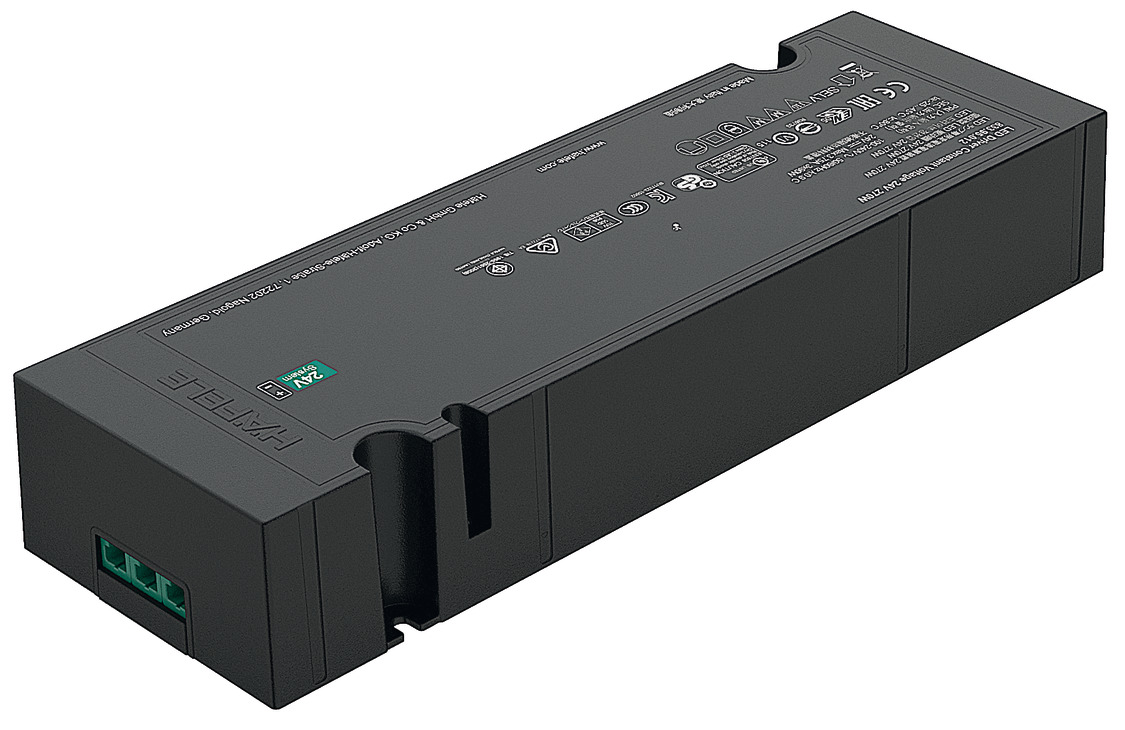

Hafele 833.95.022 Hafele Loox5 24V Constant Voltage Driver, No Mains LeadHafele 833.95.022 Driver is a robust 24 V constant voltage solution designed for seamless integration with the Loox5 generation plug system. Featuring three output sockets with a total power output of 270 W (3 x 90 W), this driver ensures reliable performance for your lighting needs. With a compact size of 234 x 75 x 38 mm (9 3/16" x 2 15/16" x 1 1/2"), it can fit discreetly into your installations. Safety is paramount, which is why this driver boasts a Safety Class 2 rating and an IP20 degree of protection. It operates efficiently within an ambient temperature range of -25 to 45 °C, with a maximum lead length of 10,000 mm (393 11/16") to connect to your devices. Keep in mind that long cable runs may result in voltage losses, impacting brightness. Installation is straightforward with screws, and the driver comes supplied with fixing material. Moreover, it features overload protection, enhancing its reliability in demanding environments. Ensure adequate air circulation at the mounting location to prolong the driver’s lifespan. The Hafele 833.95.022 Driver is an essential component for any professional seeking high-quality lighting solutions.
Driver, Hafele Lighting 24 V constant voltage without mains lead
Plug type: US, 270 W (3 x 90 W) watt output sockets
24 V driver with Loox5 generation plug system
Safety Class 2 Degree of protection IP20
Maximum lead length from the Loox5 driver to the device is 10,000 mm (393 11/16"). Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver. (12 V or 24 V). Distributors with integrated lead cables can connect directly to one of the 3 output sockets.
- Ensure that there is a sufficient air supply and circulation at the mounting location
- Information on the ecodesign regulation (EU) No. 2019/1782 (external power supplies) Cat. No. 833.95.012 833.95.017 833.95.022 Mains voltage 200 – 240 V 100 – 240 V 100 – 120 V Mains frequency 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz Output power 240 W, (2 x 120) 270 W, (2 x 120) 270 W, (2 x 120) Protection class II II II Efficiency at 230 V full load 94 % Power consumption at 230 V no load 0.42 W Efficiency at 115 V full load 92 % Power consumption at 115 V no load 0.48 W Dimming capability not dimmable not dimmable Weight 568 g 580 g Disposal note Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations.
Attributes
Ambient temperature: -25–45 °C
Area of application: LED
Color/finish: Black
Connections: 3 x sockets, Loox5 2-pin 24 V
Dim. ( L x W x H): 234 x 75 x 38 mm
Efficiency at 115 V full load: 92 %
Height (inch): 1 1/2"
Input ports: 1 x socket, Non-heating appliances
Installation: With screws
Installation reference: Ensure that there is a sufficient air supply and circulation at the mounting location. The lifetime is doubled with an ambient temperature of <86 °F. Distributors with integrated lead cables can connect directly to one of the 3 output sockets.
Length (inch): 9 3/16"
Mains frequency: 50 – 60 Hz
Mains voltage: 100 – 120 V
Order reference: Please pay attention to the regional input voltage when choosing the driver. An extension lead is required to connect box to box distributors with 270 W drivers. Please order separately.
Output current: 3.75 A
Output power: 270 W, (2 x 120)
Output voltage: DC
Plug mains voltage: C14 3-pin, 5-15P to C13 3-pin (US)
Power consumption at 115 V no load: 0.48 W
Secondary side circuit: Parallel connection
Standby power consumption: 0.48 W
Suitable for: 24 V consumer with Loox plug system
Supplied with: 1 driver with fixing material
Version: With overload protection
Weight: 580.00 g
Width (inch): 2 15/16"
