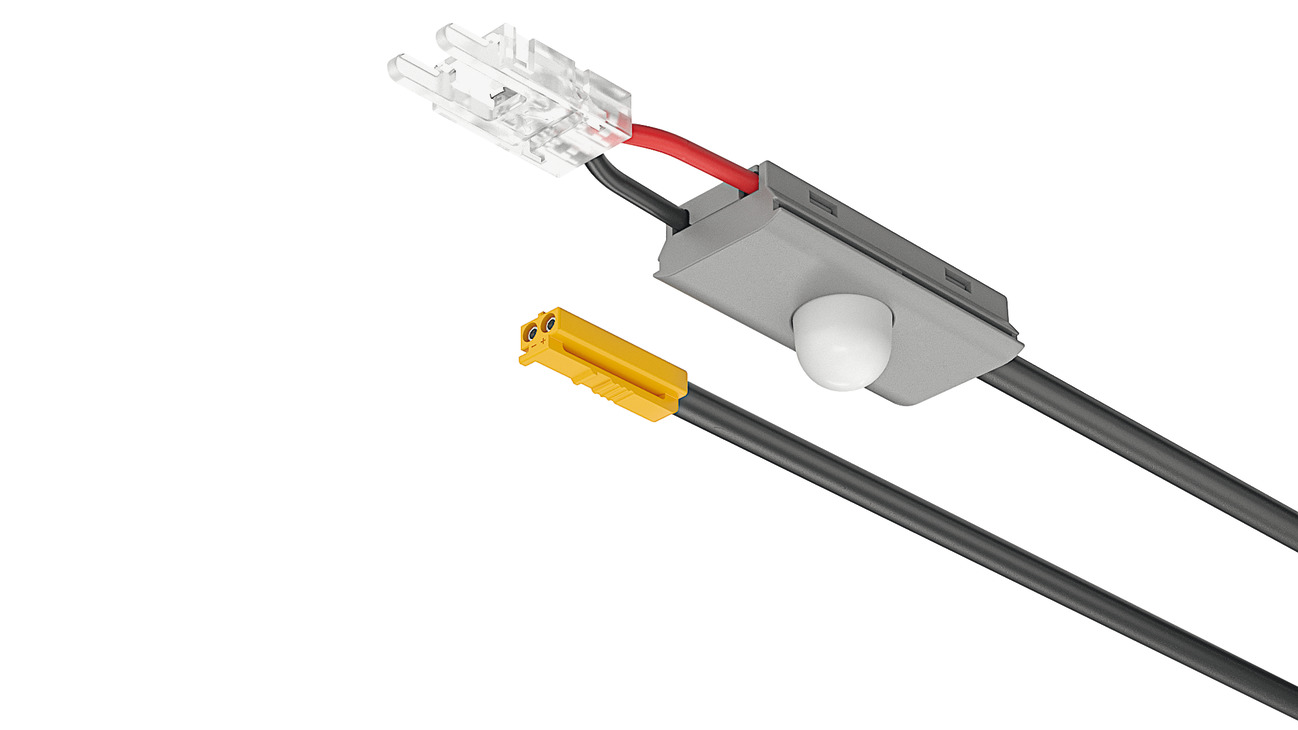

Hafele 833.95.750 Loox5 Monochrome 8mm Motion Detector Strip Lights in Aluminum ProfilesHafele 833.95.750 Motion Detector is designed for seamless integration with Loox5 monochrome 8 mm (5/16") LED strip lights in aluminum profiles. This innovative device features automatic on/off switching, ensuring energy efficiency and convenience in your lighting setup. With a 12 V operating voltage and a maximum connected wattage of 60 W, it delivers reliable performance for various applications. The motion detector boasts a sensor range of up to 2,500 mm and a 90° sensor angle, allowing for effective detection in a wide area. Its compact dimensions of 36 x 17 x 15 mm make it easy to install, while the clamp fixing installation method simplifies the process. The unit comes with a 2,000 mm pre-attached lead, ensuring flexibility in placement. Crafted from durable plastic with a sleek silver finish, this motion detector is not only functional but also visually appealing. It is specifically designed for compatibility with several Hafele profiles, including Profiles 1190, 1191, 1192, 1194, 2190, and 2191. Please note that this product cannot be used with COB or tunable white LED strip lights and should not be combined with other dimmers. Elevate your lighting experience with the Hafele 833.95.750 Motion Detector.
Motion detector, Hafele Lighting, Monochrome 8 mm (5/16") Strip Lights in Aluminum Profiles
Automatic on/off switching, Voltage 12 V, max. connected wattage 60 W
Cannot be used with COB or tunable white LED strip lights. Do not combine with other dimmers.
Attributes
Area of application: For use with monochrome 8 mm (5/16") LED strip lights in aluminum profiles with 16 mm (5/8") internal width
Cable length: 2,000.00 mm
Color/finish: Silver colored
Connected output ports: 1 x Clip, Loox5 LED strip light 8 mm monochrome
Delay time: 30 s

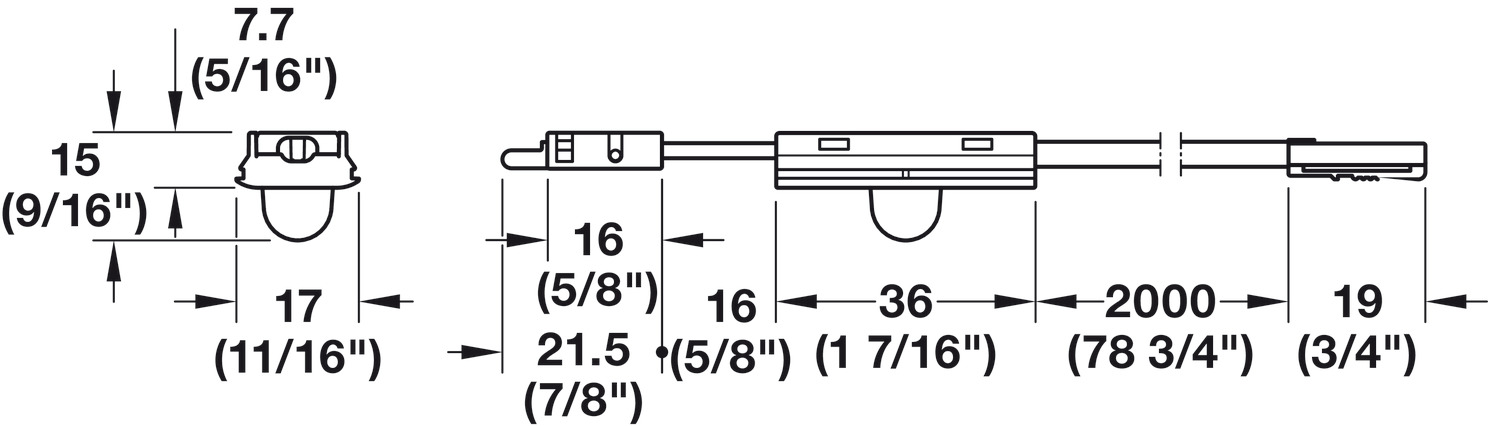

Dim. ( L x W x H): 36 x 17 x 15 mm
Drill hole Ø: Plug 5/16"
Input ports: 1 x plug, Loox5 2-pin 12 V
Installation: For clamp fixing
Length: 36.00 mm
Low voltage plug: Loox5 2-pin 12 V
Material: Plastic
Memory function: No
Number of input ports: 1 x plug
Plug drill hole Ø: 8.00 mm
Power rating: 60.00 W
Sensor angle: 90.00 °
Sensor range: 0 – 2,500 mm
Suitable for: Profile 1190, Profile 1191, Profile 1192, Profile 1194, Profile 2190, Profile 2191
Supplied with: 1 switch with clip/plug 2 m (78 3/4") pre-attached lead
Switching function: automatic on/off
Version: Automatic on/off switching
Vertical sensor bracket: 110.00 °
Wattage: 60 W
