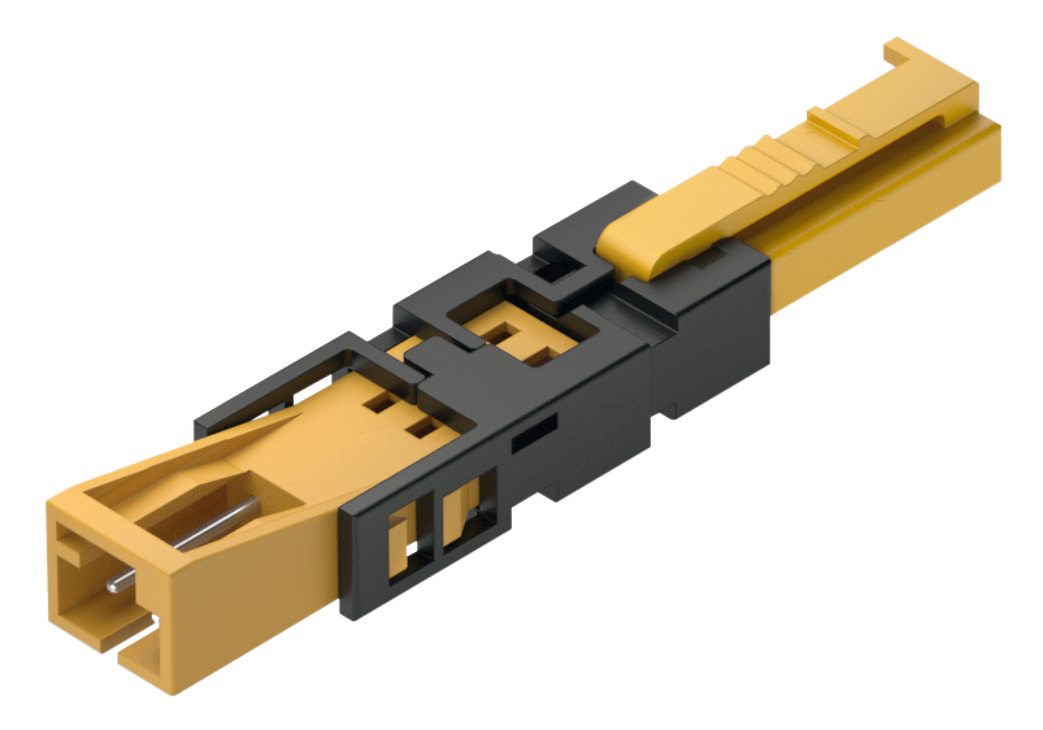

Hafele 833.95.753 Adapter, Loox device – Loox5 driver is expertly designed for seamless connectivity between Loox3 plugs and Loox5 drivers or distributors. This compact adapter measures 50 mm in length and operates on a nominal voltage of 12 V, making it an ideal solution for various lighting applications. With a maximum connected wattage of 42 W and a current carrying capacity limited to 3.5 A, it ensures reliable performance while adhering to safety standards. The adapter is specifically suitable for devices equipped with Loox3 plugs, providing a straightforward upgrade path for those looking to enhance their lighting systems. Its low voltage socket configuration caters to the needs of modern lighting solutions, ensuring that your installations are both efficient and effective. Installation is a breeze, requiring a drill hole of 12 mm in diameter, which simplifies the setup process for building professionals and knowledgeable homeowners alike. Please note that this adapter is not compatible with 3-wire Loox plugs (multi-white) or 4-wire Loox plugs (RGB), so it’s important to observe the maximum wattage for optimal performance. Supplied with one adapter, this solution is ready to integrate into your existing systems, enhancing functionality and convenience in your lighting design projects.
Adapter, Hafele Lighting Socket/Plug, 12 V
For connecting Loox3 plugs to Loox5 drivers and distributors, max. connected wattage: 42 W, length: 50 mm
Not compatible with tunable white 3-wire or RGB plugs. The current carrying capacity is limited to 3.5 A. Observe maximum wattage.

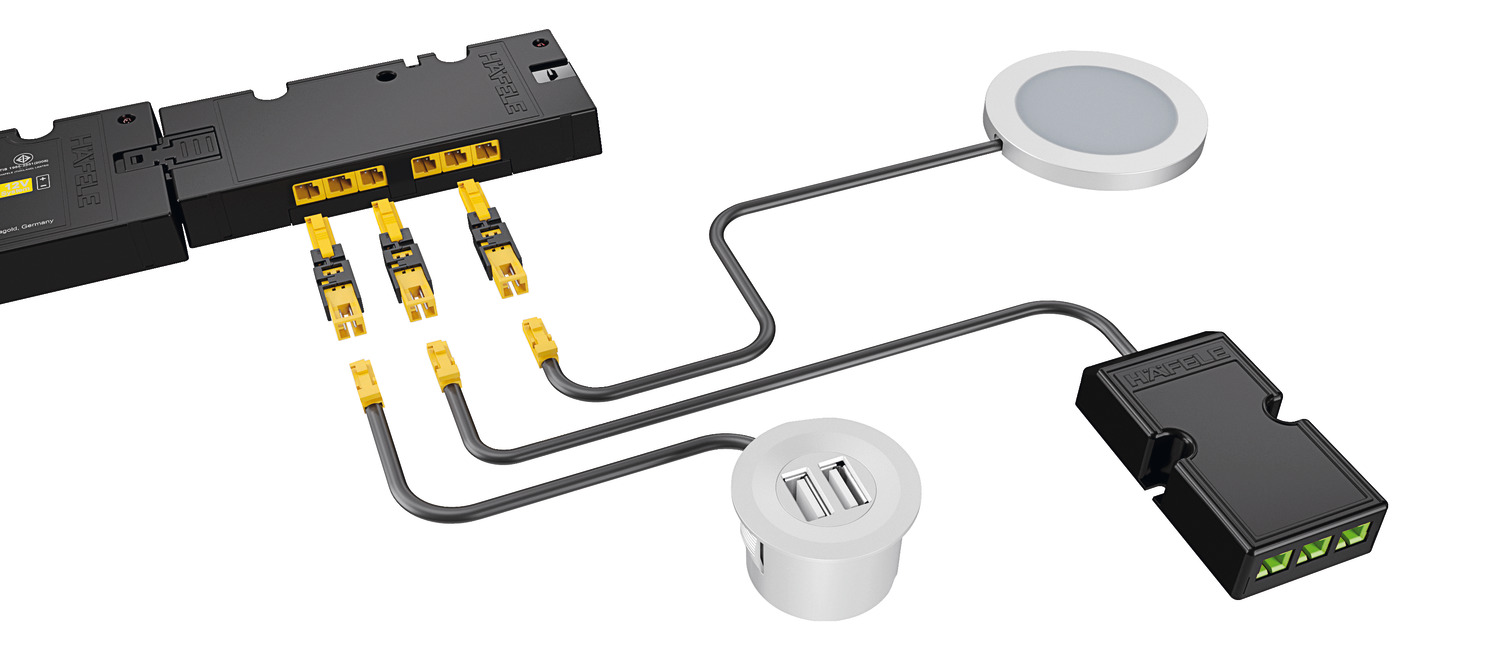

Area of application: For connecting Loox3 plugs to Loox5 drivers and distributors. Suitable for all devices with Loox3 plugs.
Current carrying capacity: 3.50 A
Drill hole Ø: 12.00 mm
Length: 50.00 mm
Length (inch): 2"
Low voltage socket: Adapter 12 V, Loox socket, Loox5 plug
Nominal voltage: 12.00 V
Supplied with: 1 adapter
