Hafele 833.95.794 Extension Lead for Hafele Loox5 24 V, 3-pin (multi-white) is designed to enhance your lighting installations with reliability and efficiency. This 500 mm extension lead, constructed from durable plastic, features a 20 AWG wire gauge with a 4-conductor, stranded copper configuration. With a current-carrying capacity of 3.5 A, it is ideal for connecting Loox5 multi-white lights, ensuring optimal performance in your lighting systems. The lead's design accommodates a maximum length of 10 meters from the Loox5 driver to the device, allowing flexibility in your setup. However, it’s important to note that longer cable runs, especially with larger loads like strip lights, may lead to voltage drops that can affect brightness. The nominal voltage of the lead is 24 V, suitable for Class 2 power applications. This extension lead includes one plug and socket connection for easy integration into your existing Loox5 system. It meets various installation codes, ensuring safety and compliance in your projects. With drill hole diameters of 9 mm for plugs and 13 mm for sockets, installation is straightforward. Enhance your lighting solutions with the Hafele 833.95.794 and experience seamless connectivity and performance.
Extension lead, Hafele Lighting 24 V, 3-pin (multi-white)
3.5 A, 20 AWG, Length: (19 11/16") 500 mm
Lead length from Loox5 driver to device max. 10 m. Long cable lengths in combination with large loads (strip light lengths) can result in voltage drop in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver(24 V).
Area of application: For Loox5 multi-white lights
Cable length: 500.00 mm
Color system: MW
Connections: 1 x socket, Loox5 3-pin MW 24 V
Current carrying capacity: 3.50 A
Drill hole Ø: Plug 3/8"; socket 1/2"
Input ports: 1 x plug, Loox5 3-pin MW 24 V
Length (inch): 19 11/16"
Material: Plastic
Nominal voltage: 24.00 V
Number of leads: 3.00

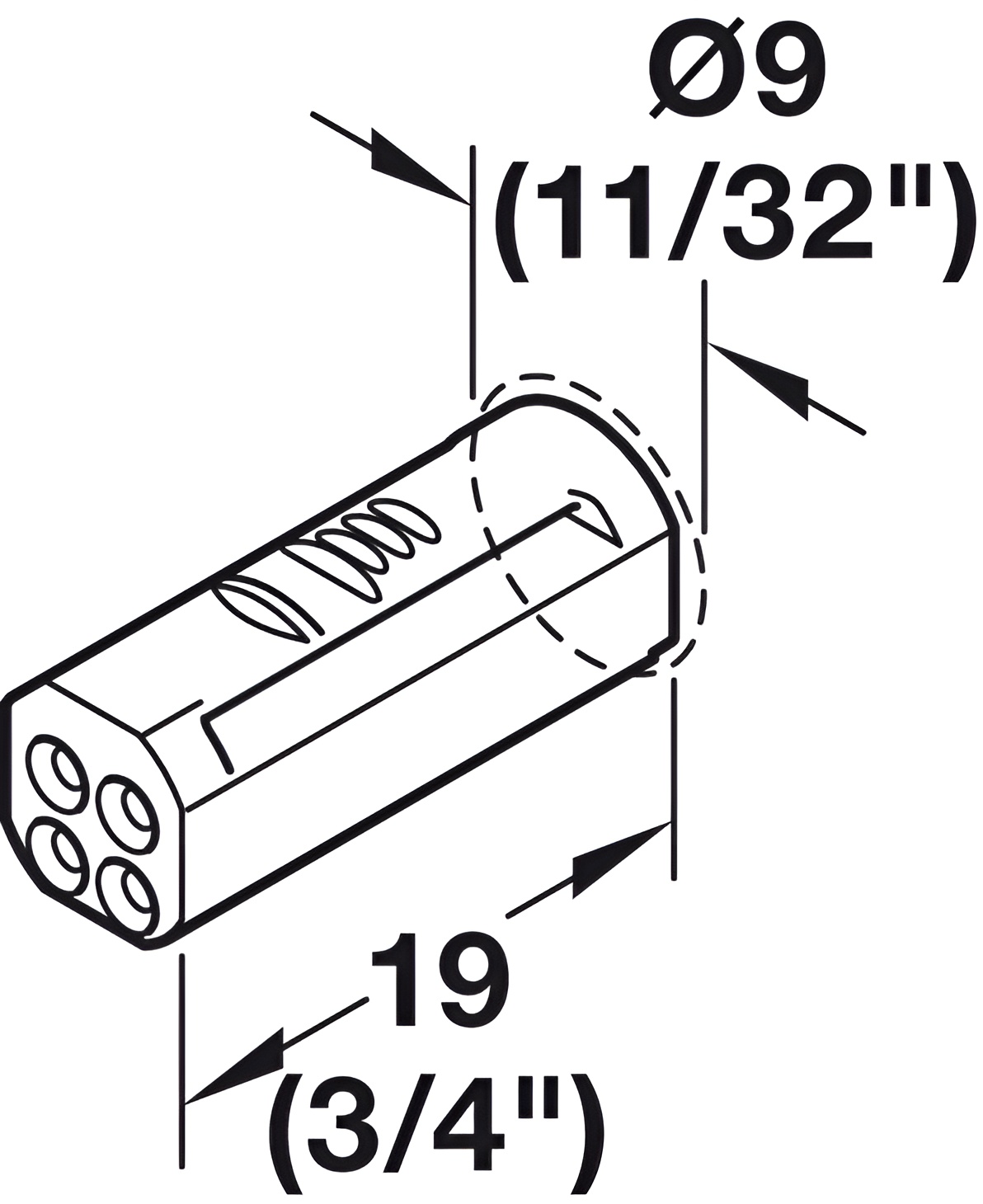

Plug drill hole Ø: 9.00 mm
Socket drill hole Ø: 13.00 mm
Supplied with: 1 extension lead plug/socket
Version: Meets the following codes for wire and cable locations: > NEC article 411 Lighting systems operating at 30 V or less attached to Class 2 power > NEC article 725.135 Installation of Class 2 cable > NEC article 411.5 Specific Location Requirements
Wire cross section AWG: 20.00
