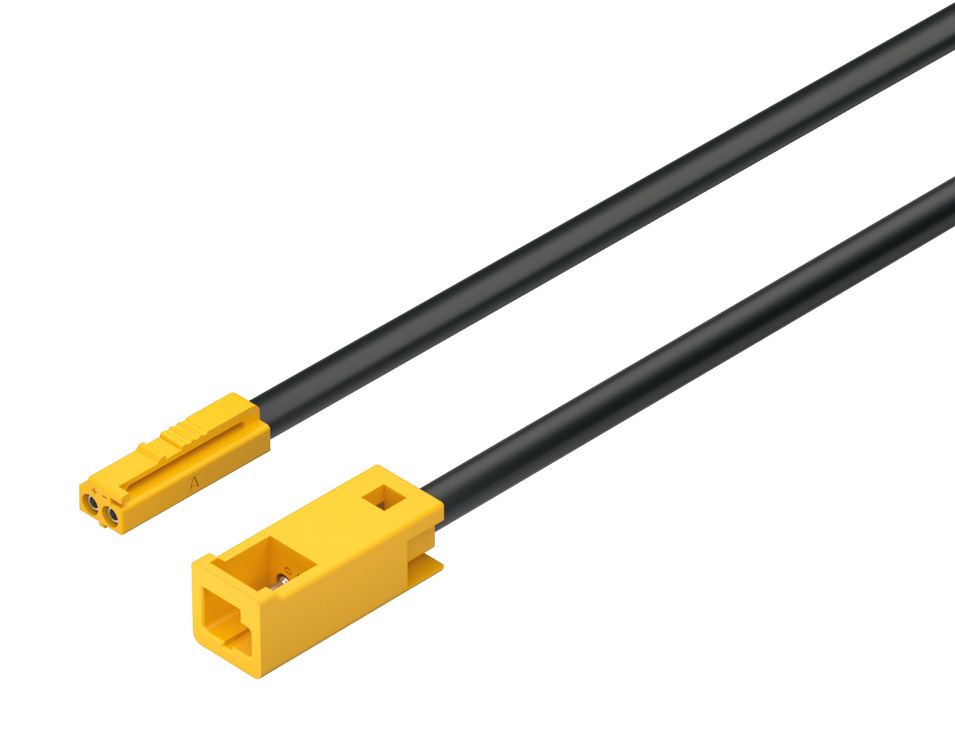

Hafele 833.95.914 Extension Lead offers a reliable solution for connecting your monochrome and tunable white 2-wire devices and distributors. With a robust length of 600 mm (23 5/8"), this extension lead is designed to support a current carrying capacity of 5 A, ensuring efficient power delivery for your lighting needs. Constructed from durable plastic, this class 2, double insulated lead is built to withstand daily usage while providing safety and performance. It features a 12 V nominal voltage and incorporates an easy-to-use Loox5 2-pin socket, allowing for straightforward connections. The lead is compatible with a maximum distance of 10 m (393 11/16") from the driver to the device, making it highly versatile. However, be mindful that longer cable lengths combined with large loads may cause voltage losses, potentially affecting the brightness of your lights. Installation is simplified with specific drill hole diameters-5/16" for the plug and 1/2" for the socket. Supplied with one extension lead that includes one plug and one socket, the Hafele 833.95.914 stands out as an essential component for any lighting setup, ensuring both functionality and ease of use in your projects.
Extension lead, Hafele Lighting Monochrome and Tunable White 2-wire, 12 V
5 A, 18 AWG, Length: (23 5/8") 600 mm
Maximum lead length from the driver to the device is 10 m (393 11/16"). Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable, leading to visible loss of brightness in the lights.
Area of application: For use with monochrome and tunable white 2-wire devices and distributors
Cable length: 600.00 mm
Color system: monochrome or MW 2-wire-Technology
Connections: 1 x socket, Loox5 2-pin 12 V
Current carrying capacity: 5.00 A

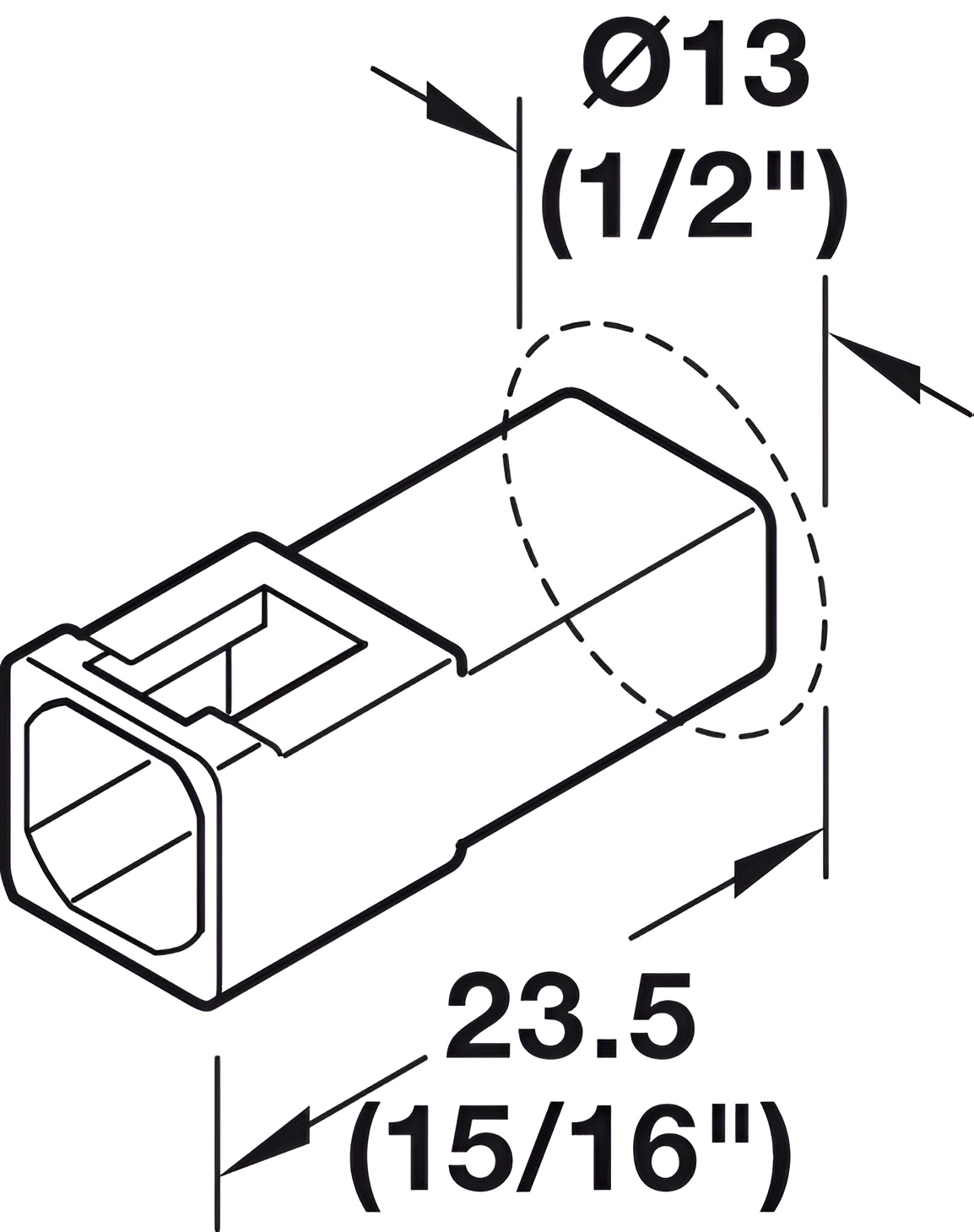

Drill hole Ø: Plug 5/16"; socket 1/2"
Input ports: 1 x plug, Loox5 2-pin 12 V
Material: Plastic
Nominal voltage: 12.00 V
Number of leads: 2.00
Plug drill hole Ø: 8.00 mm
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Socket drill hole Ø: 13.00 mm
Supplied with: 1 extension lead 1 plug/1 socket
Version: 2-wire 18 AWG
Wire cross section AWG: 18.00
