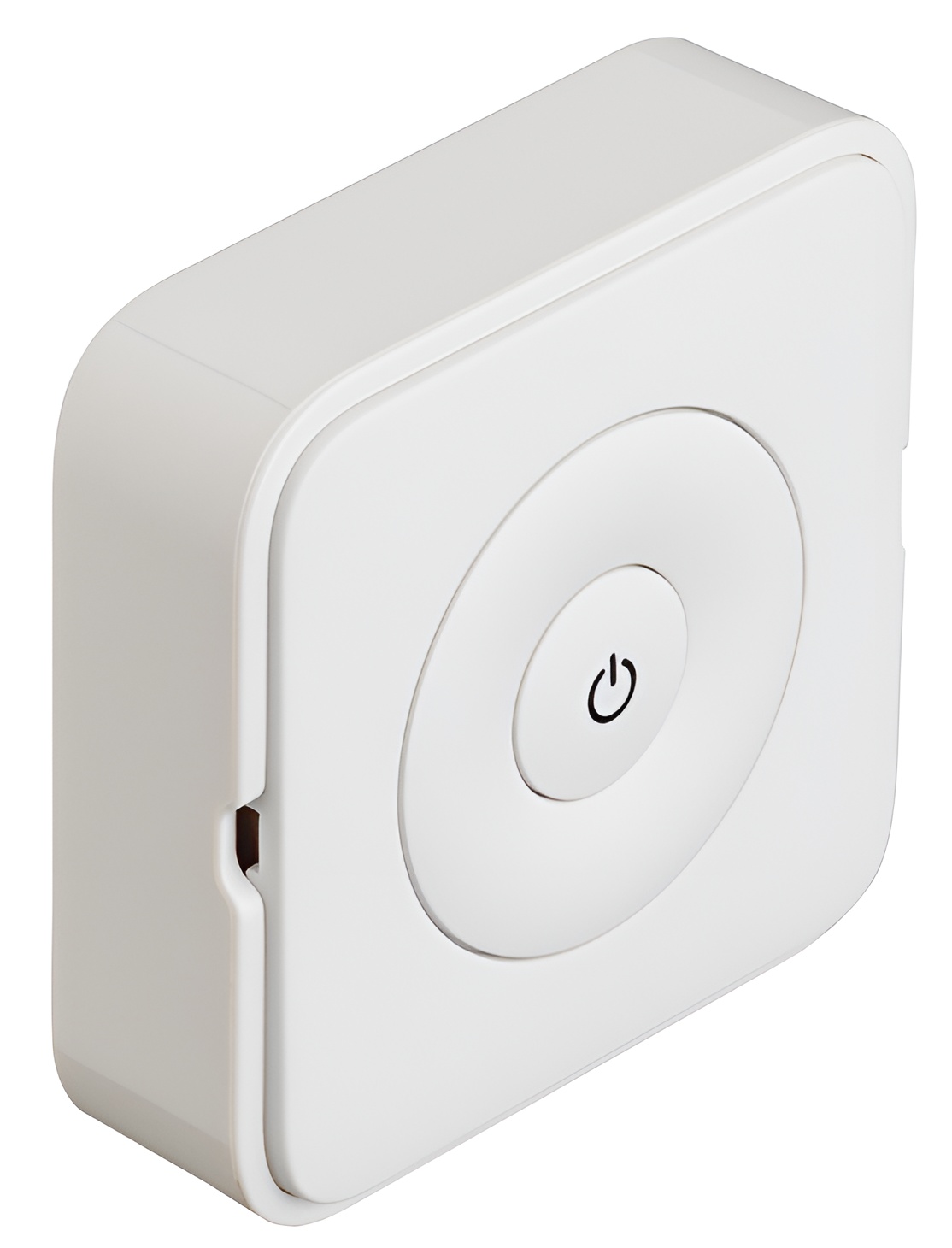

Hafele 850.00.252 Hafele Connect Mesh Radio Remote with Multi-Functional SwitchHafele 850.00.252 Radio Remote Control offers an innovative solution for managing lighting within your Häfele Connect Mesh network. This multi-functional control allows you to effortlessly operate monochrome, tunable white, and RGB lights with ease. Designed for Bluetooth® wireless control, it enables direct pairing with Häfele Connect Mesh distributors, ensuring a seamless user experience. The sleek, white frame complements any décor while providing essential functionality, including on/off switching, dimming, and color temperature adjustment. The remote offers an impressive battery service life of 1,800 duty cycles with a replaceable CR2032 lithium battery, which is sold separately. Measuring just 47 x 47 x 15 mm, the compact design can be conveniently installed recessed in drilled holes or surface-mounted using the supplied housing. With an IP20 degree of protection, this device is intended for use in dry, enclosed rooms, making it perfect for residential or commercial settings. Certified by independent testing institutes, including VDE and recognized internationally by FCC, JATE TELEC MIC, and UKCA, the Hafele 850.00.252 ensures reliability and performance. Transform your lighting control experience with this cutting-edge furniture switch, enhancing both functionality and aesthetic appeal in any space.
Radio Remote Control, Hafele Connect Mesh with multi-functional furniture switch
Multi-functional, white, frame white, please order 1 x CR2032 battery separately
Multi-functional control for monochrome, tunable white and RGB lights
EasyPairing enabled; allows direct pairing with Häfele Connect Mesh distributors Use Häfele Connect Mesh app 2.0 for full Connect Mesh functionality or for customizing network settings
On/off, dimming, change color (RGB) or color temperature (multi-white).
Attributes
Area of application: For Bluetooth® wireless control of lights in a Häfele Connect Mesh network
Battery service life: 1,800 duty cycles
Battery size: CR2032
Certification of independent testing institutes: VDE
Color/finish: White
Degree of protection: IP20
Design: Frame: plastic, white
Dim. ( L x W x H): 47 x 47 x 15 mm
Dimensions: Switch: (L x W): 43 x 43 mm (1 11/16 x 1 11/16")
Drill hole Ø: 1 5/8"
Embedded battery: replaceable
Height (inch): 9/16"
Installation: With screws, For mounting in drilled hole and for clamp fixing
Installation reference: Recessed in drilled hole or surface mounted with supplied switch housing
International certifications: USA FCC, Japan JATE TELEC MIC, Great Britain UKCA
Labels for correct purpose of use: Only to be used in enclosed, dry rooms.
Length (inch): 1 7/8/"
Material: Plastic
Order reference: Please order Häfele Connect Mesh distributor separately.
Product type: Furniture switch, multifunctional
Protection class: III
Signal transmission: Bluetooth®
Supplied with: 1 furniture switch 1 surface mounted housing 1 replaceable CR2032 button cell lithium battery (002.99.032)
Switching function: on/off, color change soft, Dimming
Type of battery: Lithium
Width (inch): 1 7/8"
Wireless technology: Bluetooth®, EasyPairing
