Hafele 850.00.847 Connect Mesh 2-Way Distributor, Hafele Connect Mesh, 2-pin (multi-white 2-wire technology) 24V, switchable wired-wireless switchingHafele 850.00.847 Product is a versatile and robust solution designed to enhance your furniture and architectural hardware needs. Specifically engineered for reliable performance, this product exemplifies Hafele's commitment to quality and innovation. One of the standout features of the 850.00.847 is its compatibility with various applications, making it an ideal choice for both building professionals and knowledgeable homeowners. The ability to ship via UPS ensures that you receive your order promptly, allowing for efficient project management and timely installations. This product is crafted to meet the high standards expected from Hafele, ensuring durability and long-lasting functionality in any environment. Whether you are upgrading existing fixtures or starting a new project, the 850.00.847 offers a seamless integration that enhances both aesthetic appeal and practical use. With Hafele's reputation for excellence, you can trust that the 850.00.847 will meet your expectations, providing a reliable solution that combines style and performance. Elevate your projects with this essential component, and experience the difference that quality hardware can make in your space. Take the next step in your design journey with the confidence that comes from choosing Hafele.

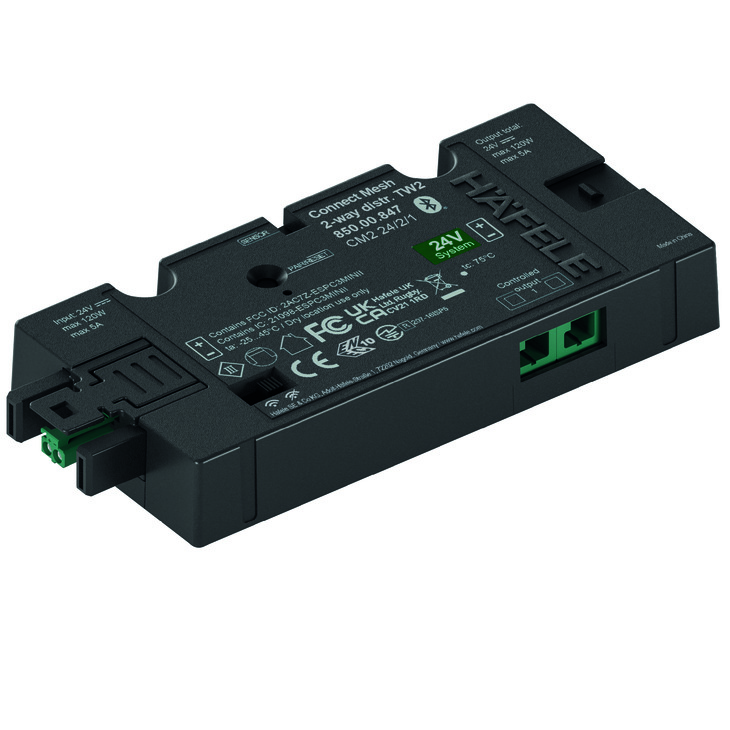

Connect Mesh 2-Way Distributor, Hafele Connect Mesh, 2-pin (multi-white 2-wire technology) 24 V, switchable wired-wireless switching
for tunable white 2-wire, 120 W / UL 90 W

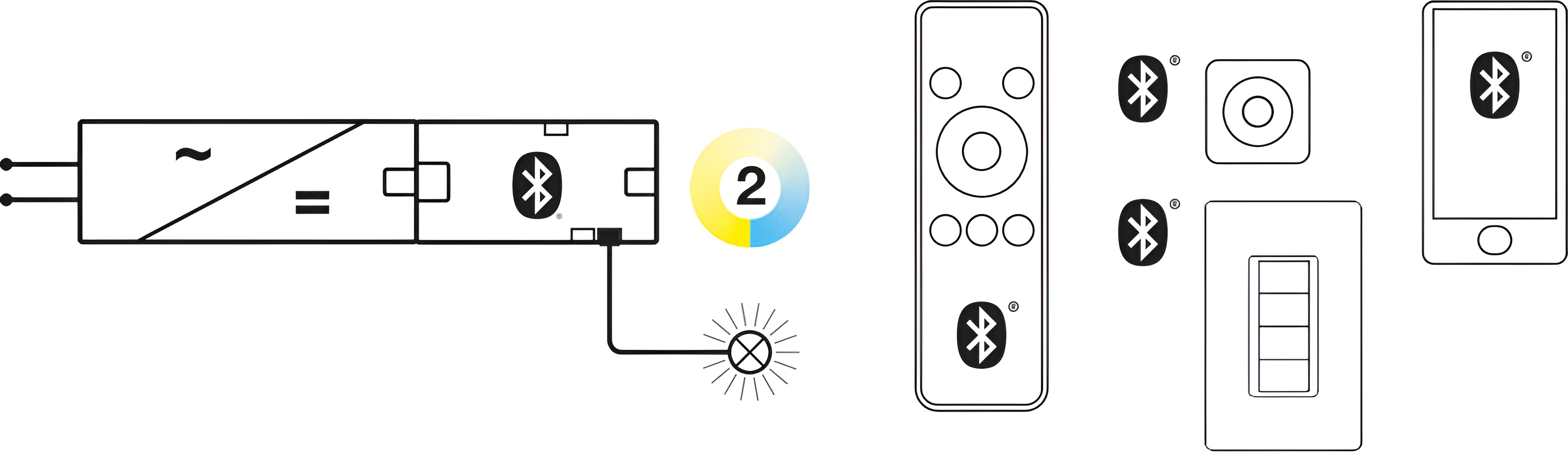

Switchable between wireless with Bluetooth® and manual control modes > Color temperature and dimming can be controlled wirelessly or manually > Switch port for wired switches/sensors can be used in either wireless or manual modes > 2 output ports; both output ports are controlled together. > EasyPairing enabled; allows direct pairing with Häfele Connect Mesh wireless switches and remotes
with Bluetooth® convertible to switching function
Wireless Bluetooth mode * Control Color temperature and light intensity wirelessly * Connect with any Hafele Connect Mesh wireless switch or remote with Easy Pairing. * Use Hafele Connect Mesh App2.0 for full functionality or for customizing network settings. Manual Control mode * Control Color temperature manually by pushing button on distributor. 4 selection options: 2700K, 3000K, 4000K and 5000K. * Connect a wired switch to the switch port to control On/Off and Dimming * For wireless control of On/Off/Dimming, attach Connect Mesh Receiver (850.00.860) to the switch port. Order separately.
Compatible with tunable white 2-wire LED strip and puck lights. These items are replacing 850.00.911, 850.00.912, 850.00.810, 850.00.811, 833.95.894 and 833.95.895.
Attributes
Area of application: for on/off switching, dimming (0-100%) and color change of 2-pin multi-white lights
Color system: MW 2-wire technology
Color/finish: Black
Connected output ports: 2 x sockets, Loox5 2-pin MW 24 V
Connections: 1 x socket, Loox5 2-pin 24 V box to box
Control input ports: 1 x socket, Loox switch
Dim. ( L x W x H): 115 x 50 x 16 mm
Distance between controls max.: 5.00 m
Height (inch): 5/8"
Input ports: 1 x plug, Loox5 2-pin 24 V box to box
Length (inch): 4 1/2"
Low voltage plug: Loox5 2-pin 24 V box to box
Material: Plastic
Power rating: 120.00 W
Standby power consumption: 90.00 W
Supplied with: 1 Connect Mesh 2-way distributor
Switching function: color change soft, on/off and dim
Width (inch): 2"
