Hafele 850.00.955 Radio Remote Control, Hafele Connect Mesh 24 V offers a seamless way to manage lighting within your Häfele Connect Mesh network. Designed to enhance your experience, this modular unit operates at 24 V and can be easily integrated using the free Connect Mesh app available on both Apple iOS® and Android™ devices. With the app, users can customize essential settings such as run-time, brightness threshold, and soft-off configurations, allowing for tailored control that perfectly suits your environment. The motion detector is specifically engineered to manage lights connected to the Häfele Connect Mesh network, ensuring efficient energy use and convenience. This product features a compact design with dimensions of 43 x 43 x 10 mm and an installation method that includes screws for mounting in drilled holes or clamp fixing. It operates at a power consumption of only 2.00 W and boasts an 80° sensor angle for optimal functionality. Certified by recognized independent testing institutes such as VDE and compliant with international standards, the Hafele 850.00.955 is protected with an IP20 rating, making it suitable for use in enclosed, dry rooms. Elevate your lighting control with this efficient and reliable solution from Hafele.
Use Connect Mesh App to customize: - Run-time - Brightness threshold - Soft-off settings
Motion detector can only control lights that are connected to a Häfele Connect Mesh network.
Attributes
Area of application: For controlling components of a Häfele Connect Mesh network
Battery voltage: 24.00 V
Certification of independent testing institutes: VDE
Color/finish: Black
Degree of protection: IP20
Design: Frame: plastic, white
Dim. ( L x W x H): 43 x 43 x 10 mm

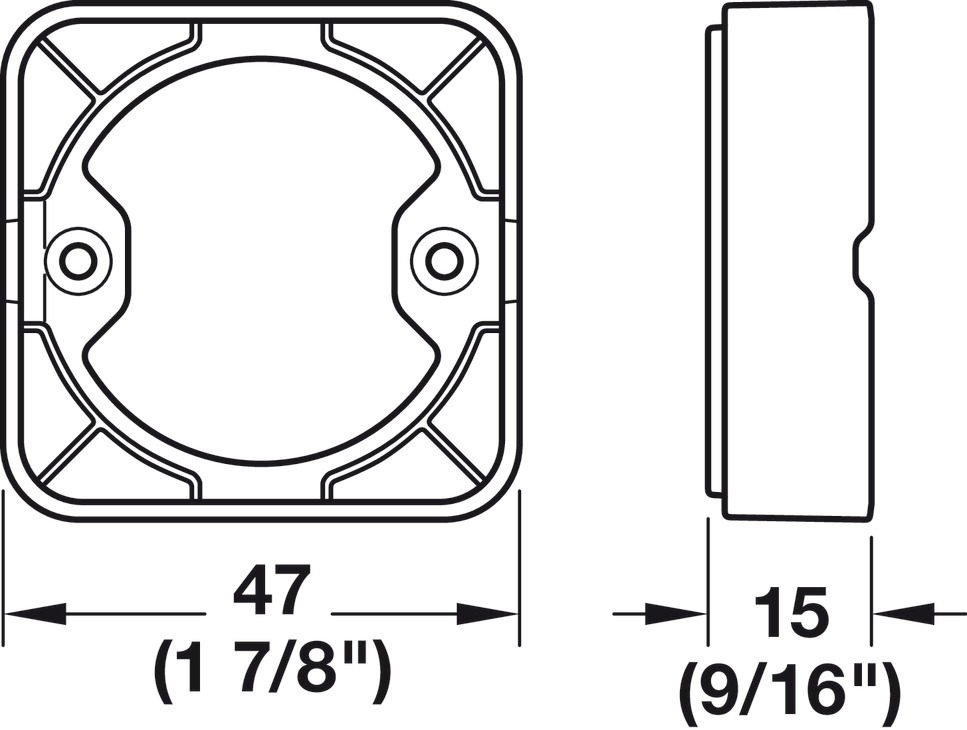

Dimensions: Switch: (L x W): 43 x 43 mm (1 11/16 x 1 11/16") and Housing: (L x W x H): 47 x 47 x 15 mm (1 7/8 x 1 7/8 x 9/16")
Drill hole Ø: 1 5/8"
Installation: With screws, For mounting in drilled hole and for clamp fixing
Installation reference: Recess in drilled hole or surface mount with supplied switch housing
International certifications: USA FCC, Japan JATE TELEC MIC, Great Britain UKCA
Labels for correct purpose of use: Only to be used in enclosed, dry rooms.
Low voltage plug: Loox 2-pin 24 V
Low voltage socket: Loox5 modular with snap-in connector 24 V
Material: Plastic
Order reference: Please order Häfele Connect Mesh distributor separately.
Power consumption: 2.00 W

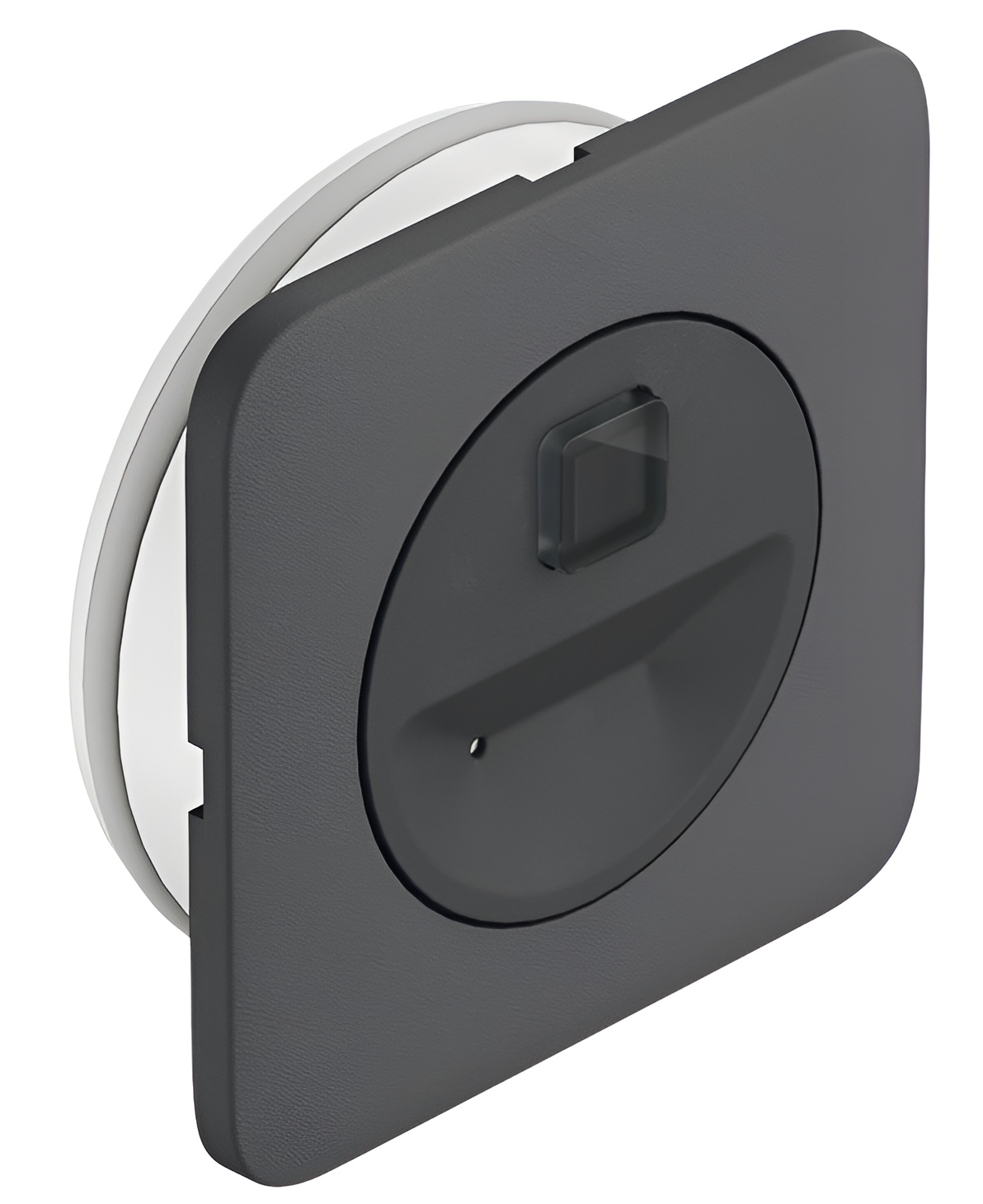

Product type: Motion detector
Protection class: III

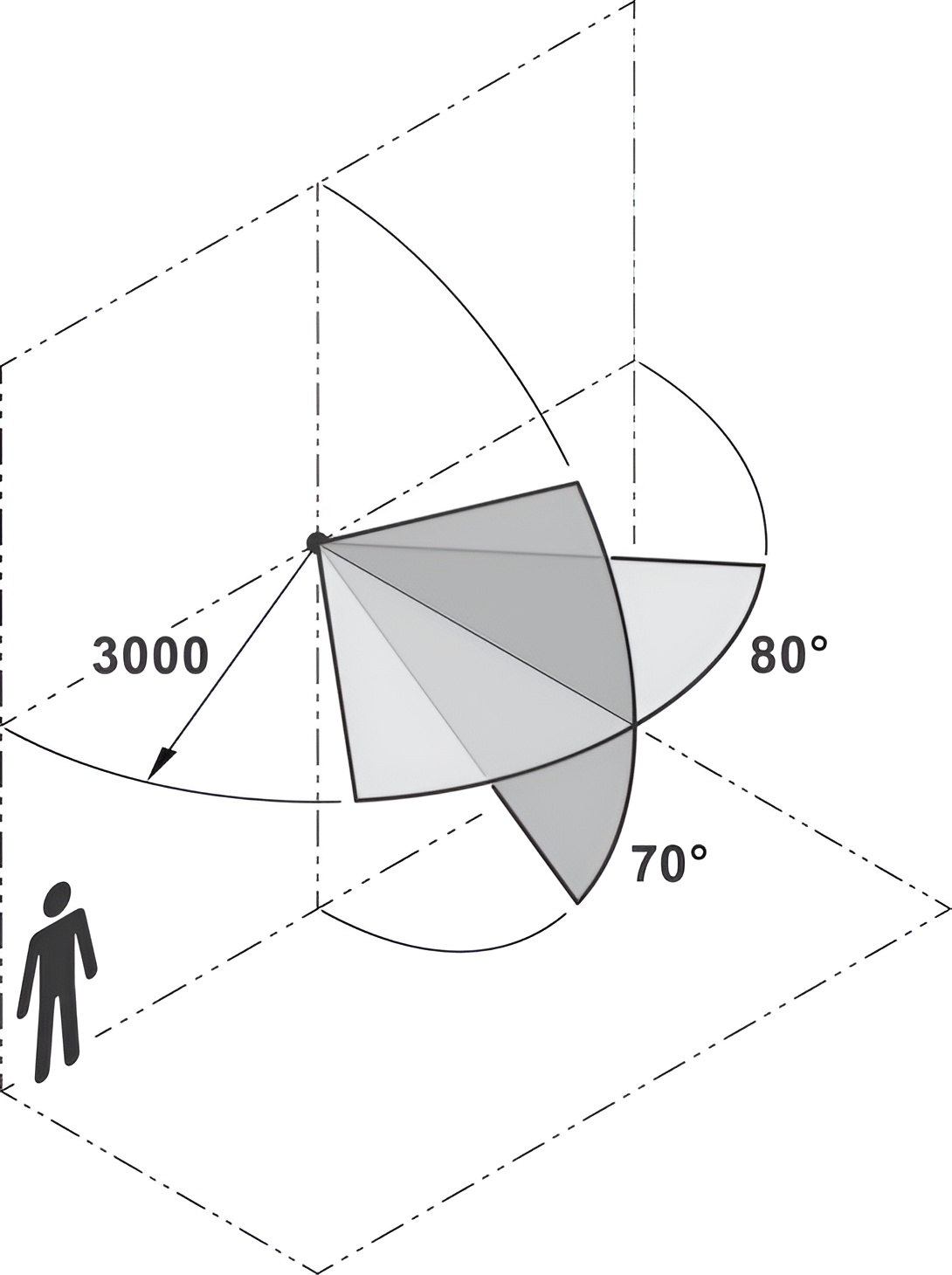

Sensor angle: 80.00 °
Signal transmission: Bluetooth®
Supplied with: 1 motion detector switch 1 surface mount housing 1 12 V or 24 V modular lead cable (833.95.788 or 833.95.791)
Switching function: on/off, Dawn threshold value
Version: Direct powered
Vertical sensor bracket: 70.00 °
Voltage: 24.00 V
Wireless technology: Bluetooth®, EasyPairing
