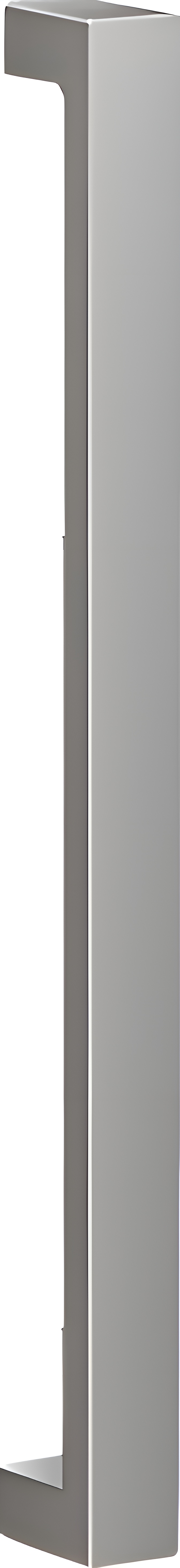

Hafele 903.00.078 Pull Handle, StarTec Stainless Steel offers a blend of functionality and modern design, making it ideal for a variety of applications. With a center-to-center distance of 39 3/8 inches, this pull handle is perfectly suited for both glass and wooden doors, allowing for a back-to-back installation that enhances accessibility and style. Crafted from high-quality stainless steel (AISI 304), the satin-finish not only adds visual appeal but also ensures durability and resistance to corrosion. The handle accommodates a range of door thicknesses-up to 9/16 inch for glass and 1 15/16 inches for wood-making it versatile for various projects. The pull handle is designed for glass thicknesses between 8 to 15 mm and wood thicknesses from 34 to 50 mm, ensuring a secure and snug fit. Featuring a drill hole diameter of 13 mm and a hole spacing of 1,000 mm, installation is straightforward with the supplied back-to-back mounting hardware. Whether you are enhancing a residential space or a commercial environment, the Hafele 903.00.078 Pull Handle is a reliable choice that combines practicality with a contemporary aesthetic.
Pull Handle, StarTec Stainless Steel
39 3/8" CTC
Area of application: For glass or wooden doors For back to back application
Color/finish: satin-finish

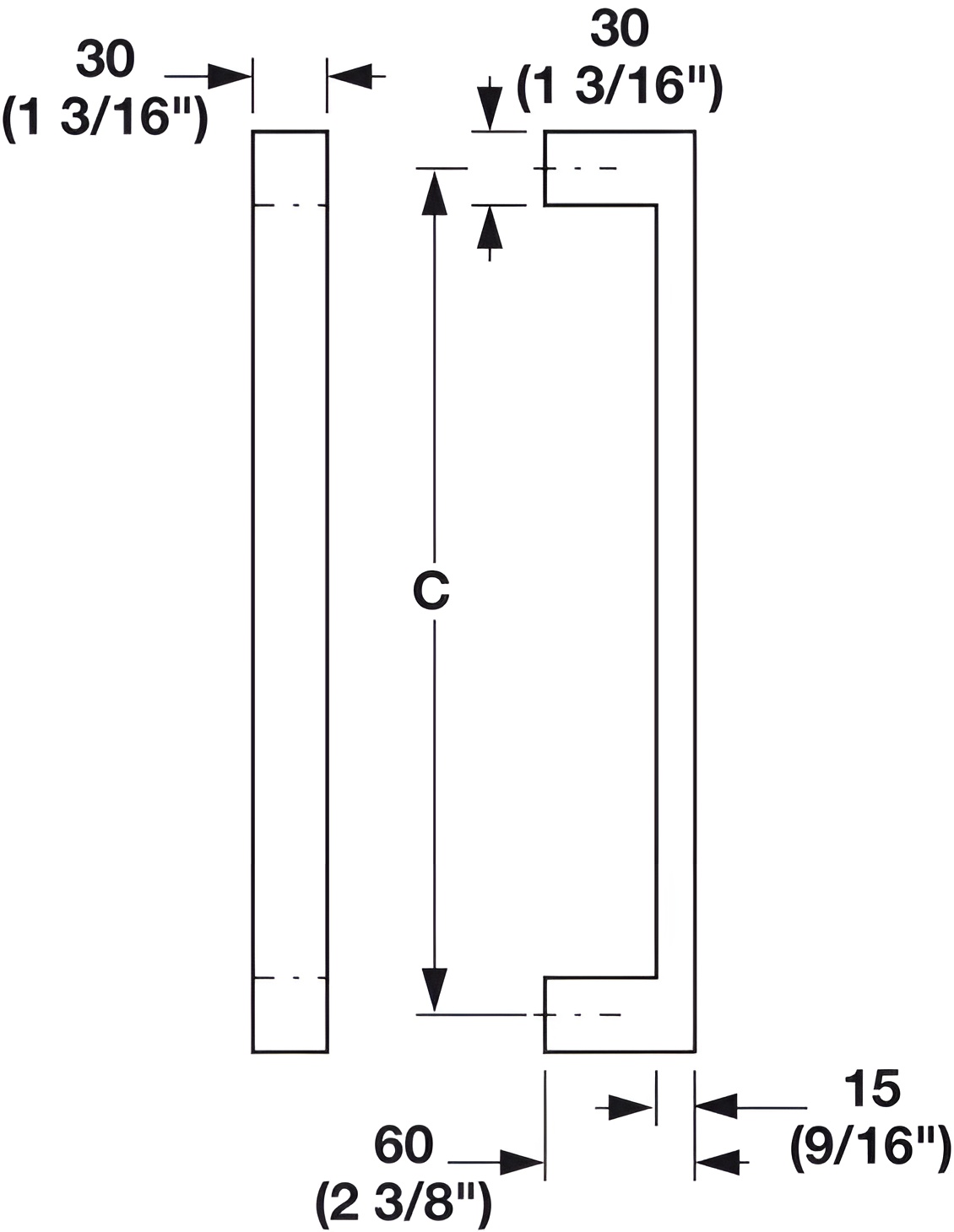

Dim. C: 39 3/8"
Door type: Wooden doors, Aluminum doors, Glass doors
Drill hole Ø: 13.00 mm
For door thickness max.: 9/16" for glass; 1 15/16" for wood
For door thickness min.: 5/16" for glass; 1 5/16" for wood
For glass thickness: 8 – 15 mm
For wood thickness: 34 – 50 mm

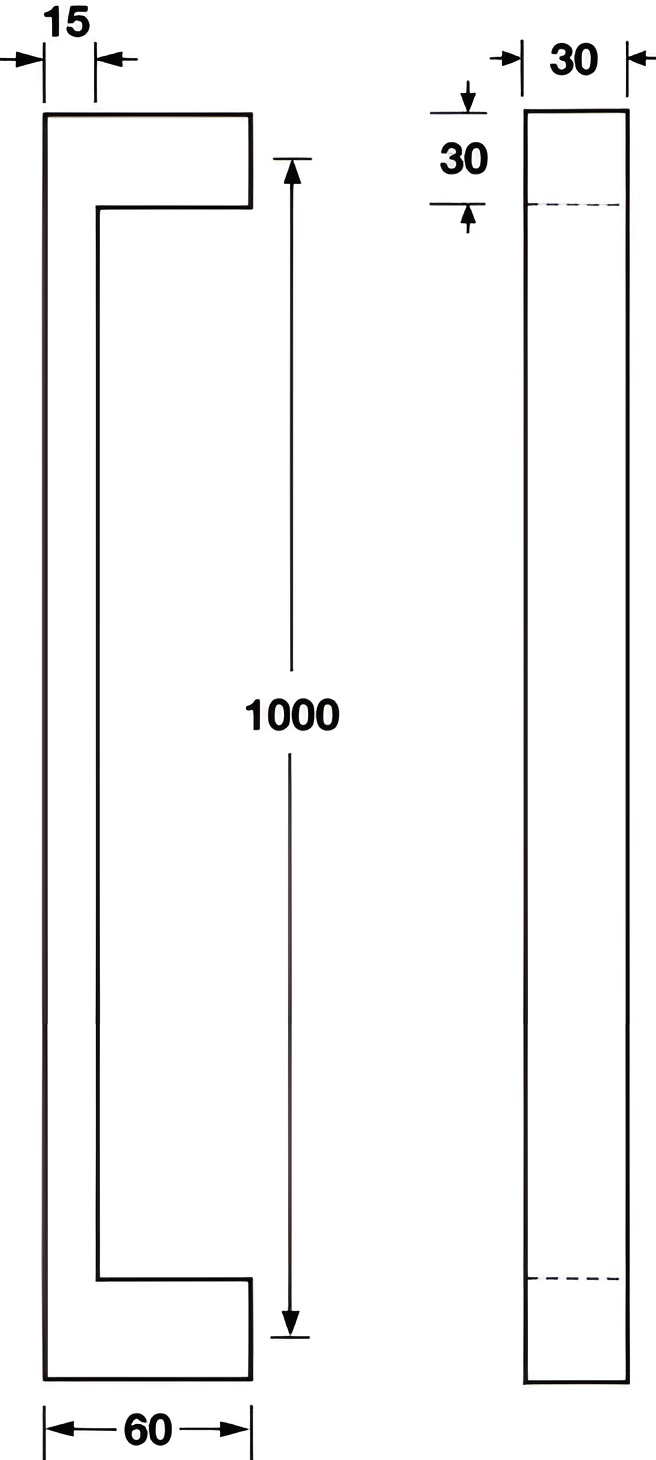

Hole spacing: 1,000.00 mm
Length: 1,030.00 mm
Material: Stainless steel, quality 1.4301/AISI 304
Supplied with: Back-to-back mounting hardware
