Hafele 909.03.879 One-Sided Mounting Set with Decorative Rose for Pull HandlesHafele 909.03.879 Mounting Set, One-Sided with Decorative Rose for Pull Handles offers a reliable solution for enhancing the functionality and aesthetics of wood doors. Designed to accommodate wood door thicknesses between 2 3/16" and 2 5/16" (55-59 mm), this mounting set ensures a secure and visually appealing installation. Each pull handle requires two mounting sets, making it ideal for both single and paired applications. The set includes square spindles and screws tailored for the specified door thicknesses, streamlining the installation process. Suitable for a variety of door types-wood, metal, and plastic-this versatile mounting solution supports pull handles with diameters of 25 mm (1") and 30 mm (1 3/16"). The installation is straightforward, as it is designed for one-sided application and remains visible from the opposite side. For optimal results, a 1/2" drill bit is recommended, with a drill hole diameter of 1/2". Notably, the Hafele 909.03.879 is compatible with a wide range of Häfele Startec door handle models, ensuring a perfect match for your design needs. Elevate your project with this dependable mounting set that combines functionality with elegant design.
Mounting Set, One-Sided with Decorative Rose for Pull Handles
Visible, straight support for wood doors, Wood Door Thickness (2 3/16 - 2 5/16") 55 - 59 mm
Each pull requires 2 mounting sets

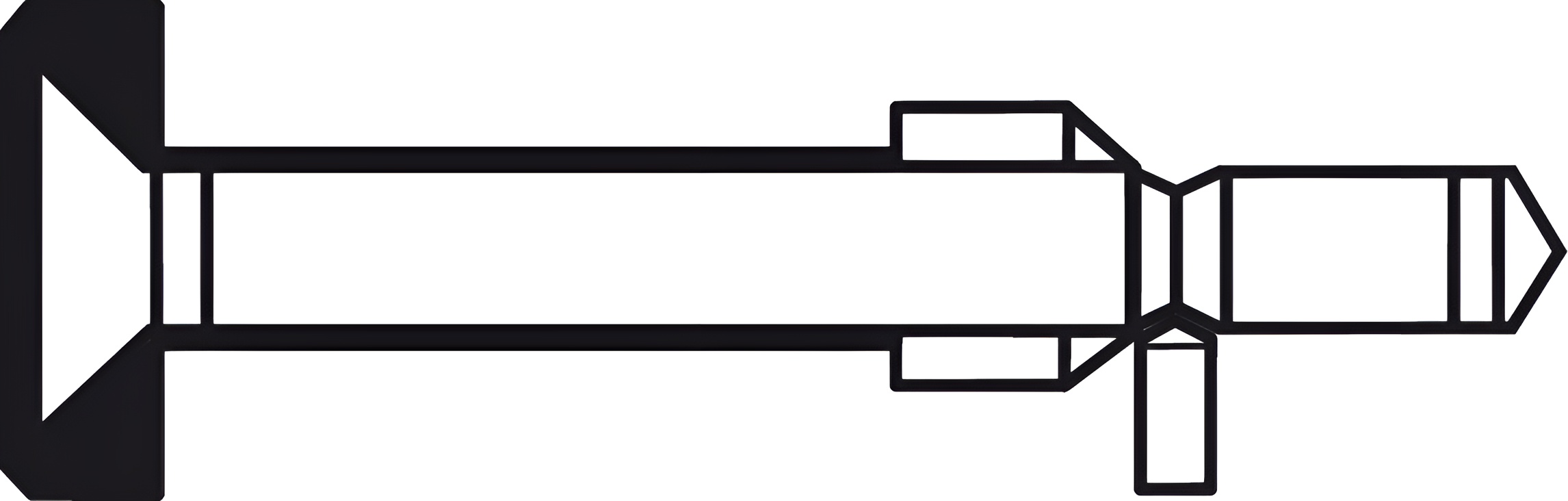

Square spindles and screws for the specified door thicknesses are supplied with the sets.
Attributes
Area of application: For Ø 25 mm (1") and Ø 30 mm (1 3/16") pull handles
Door type: Wooden doors, Metal doors, Plastic doors
Drill bit (inch): 1/2"
Drill hole Ø: Door drilling Ø: 1/2"
For door thickness: 35 – 40 mm
For door thickness max.: 1 9/16"
For door thickness min.: 1 3/8"
For support shape: for straight supports

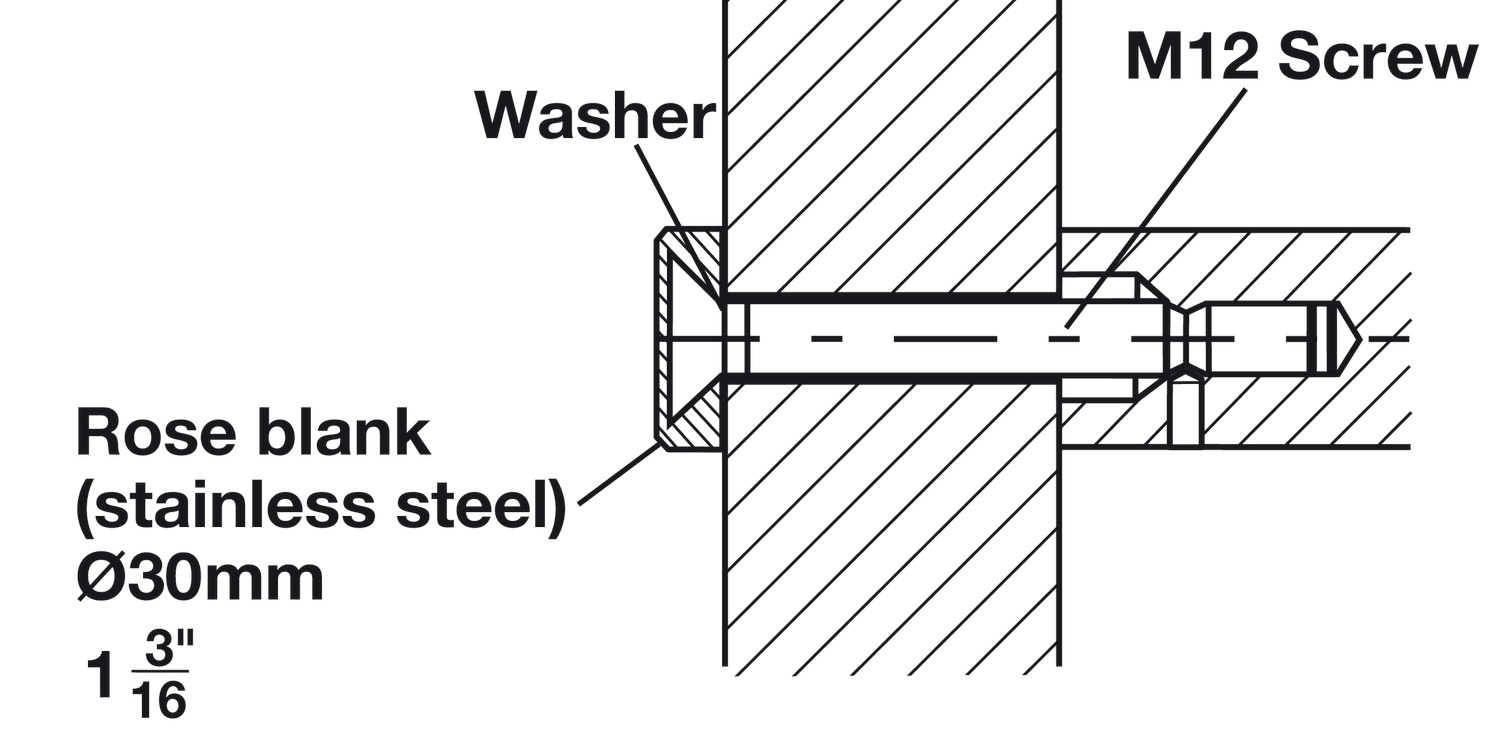

Installation: on one side, visible from opposite side
Order reference: One-sided applications require 2 mounting sets per pull. Back-to-back applications require 2 mounting sets for a pair of pulls.
Suitable for: Häfele Startec door handle model PH 1122, 2110, 2111, 2112, 2113, 2114, 2115, 2116, 2121, 2122, 2126, 2127, 2130, 2131, 2132, 2133, 2134, 2135, 2844, 2866
