Hafele 909.03.902 Mounting Set, One-Sided with Decorative Rose for Pull Handles offers an ideal solution for securing pull handles to glass doors with a sleek and modern aesthetic. This mounting set is designed for glass thicknesses ranging from 5/16" to 1/2" (8-12 mm), ensuring compatibility with various door styles while providing a sturdy installation. Each set includes square spindles and screws tailored for the specified door thicknesses, simplifying the installation process. For optimal results, two mounting sets are required for each pull handle, allowing for a secure and balanced support. The installation is straightforward, as it is designed for one-sided applications and remains visually appealing from the opposite side. Compatible with Ø 25 mm (1") and Ø 30 mm (1 3/16") pull handles, the Hafele 909.03.902 set ensures versatility in design choices. The recommended drill size is 5/8", with door drilling set to Ø 16 mm, making preparations effortless. This mounting set is particularly suited for straight supports, seamlessly integrating into your glass door installation. Upgrade your cabinetry or architectural projects with the reliability and elegance of Hafele's mounting solutions, and enjoy the blend of functionality and style.

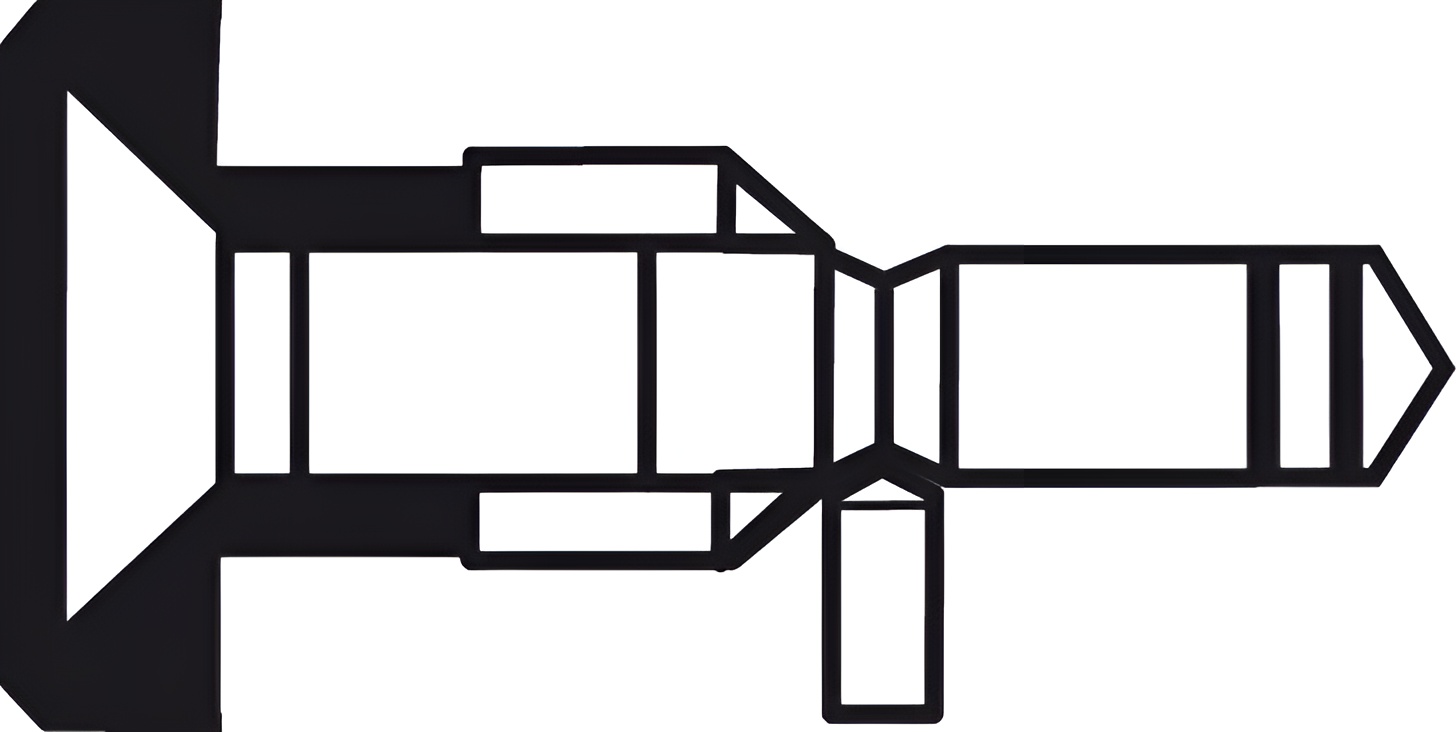

Square spindles and screws for the specified door thicknesses are supplied with the sets.
Attributes
Area of application: For Ø 25 mm (1") and Ø 30 mm (1 3/16") pull handles
Door type: Glass doors
Drill bit (inch): 5/8"
Drill hole Ø: Door drilling Ø (5/8") 16 mm
For door thickness: 8 – 12 mm
For door thickness max.: 1/2"
For door thickness min.: 5/16"
For glass thickness (inches): 5/16" – 1/2"
For max. glass thickness (inches): 1/2"
For min. glass thickness (inches): 5/16"
For support shape: for straight supports

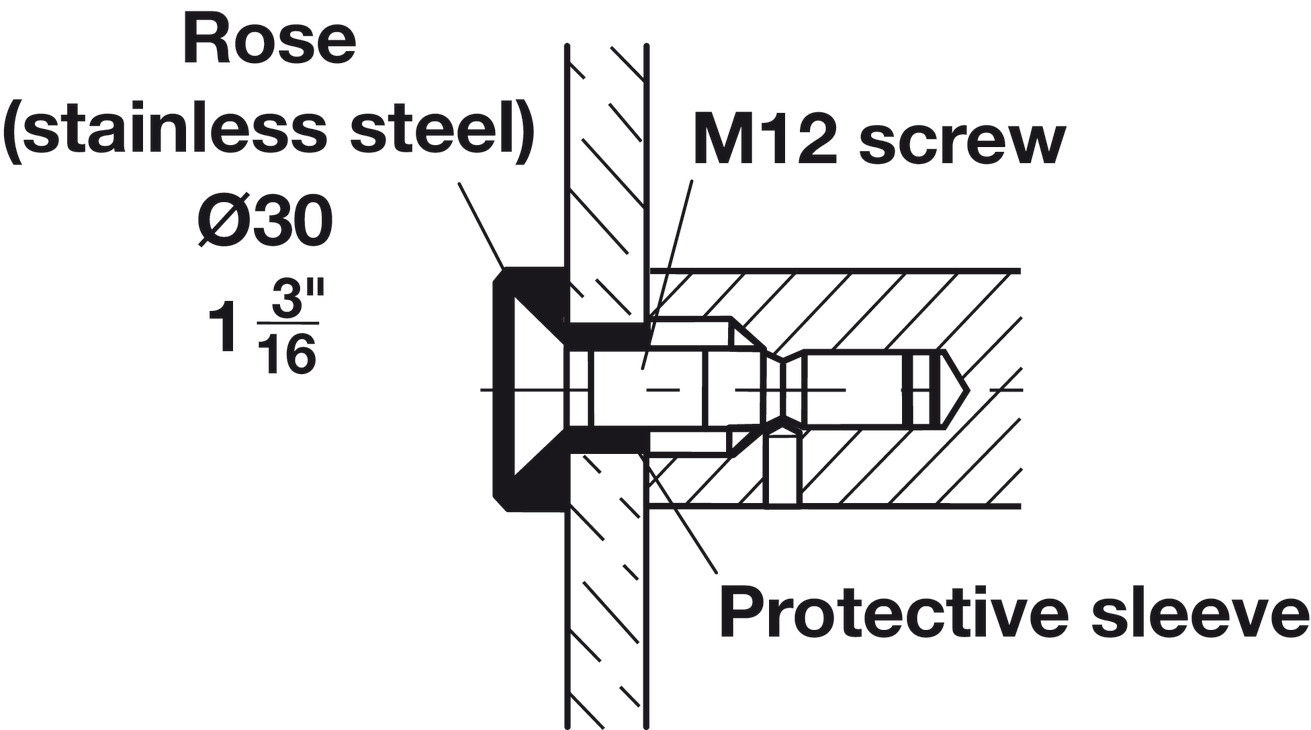

Installation: on one side, visible from opposite side
Order reference: One-sided applications require 2 mounting sets per pull. Back-to-back applications require 2 mounting sets for a pair of pull
Suitable for: Startec door handle, model PH 2110, 2111, 2112, 2113, 2114, 2115, 2116, 2117, 2118, 2119, 2120, 2121, 2122, 2123, 2126, 2127, 2130, 2131, 2132, 2133, 2134, 2135
Supports: for straight supports
Thread diameter (inch): M12
Thread Ø: M12
