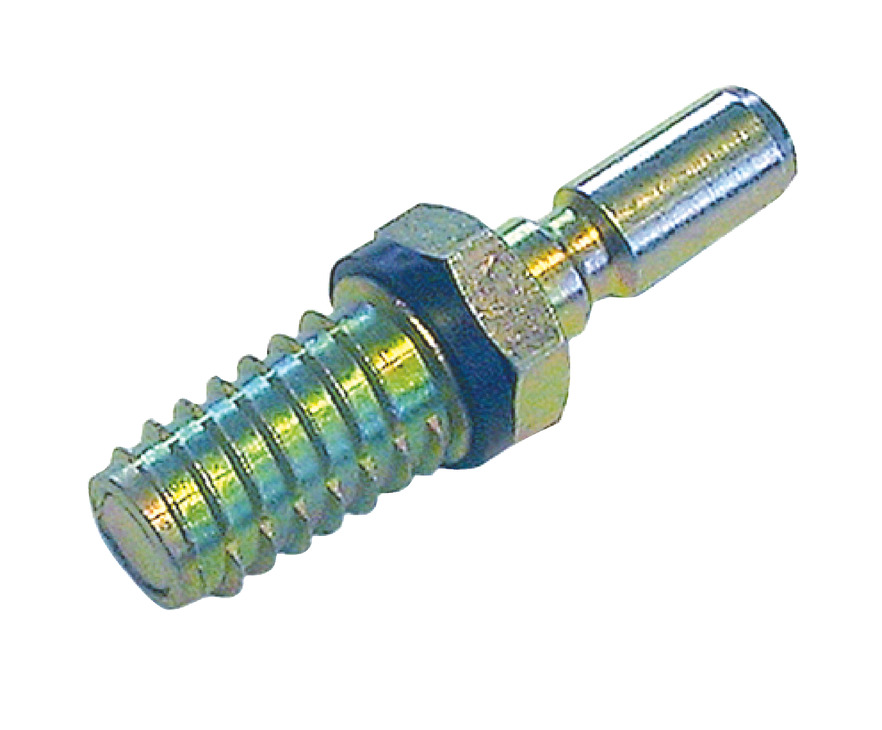

Hafele 909.03.910 Mounting Set, One-Sided for Pull Handles Invisible is expertly designed for wooden doors, providing a sleek solution for mounting pull handles with concealed fittings. This set includes Rampa sleeves, ensuring a seamless installation that maintains the aesthetic integrity of your doors. Each pull handle requires two mounting sets, making it easy to achieve a uniform and polished look. The mounting set is compatible with pull handles measuring Ø 25 mm (1") and Ø 30 mm (1 3/16"), allowing for versatility across various applications. Each set comes complete with square spindles and screws tailored for specified door thicknesses, ensuring a secure fit. The installation process is straightforward, utilizing a screw-in sleeve on one side, and requires a door drilling Ø of 9/16". Designed for straight supports, this mounting set is ideal for use with Hafele's Startec door handles, ensuring compatibility with a wide range of models, including PH 2110 through PH 2135. With a screw length of 25 mm and M10 thread diameter, this product guarantees reliability and durability. Ship via UPS for convenient delivery, making it a practical choice for building professionals and knowledgeable homeowners alike.
Mounting Set, One-Sided for Pull Handles Invisible
for Wood Doors (Concealed), With Rampa Sleeve
Square spindles and screws for the specified door thicknesses are supplied with the sets.
Area of application: For Ø 25 mm (1") and Ø 30 mm (1 3/16") pull handles
Door type: Wooden doors
Drill bit (inch): 9/16"
Drill hole Ø: Door drilling Ø: 9/16"

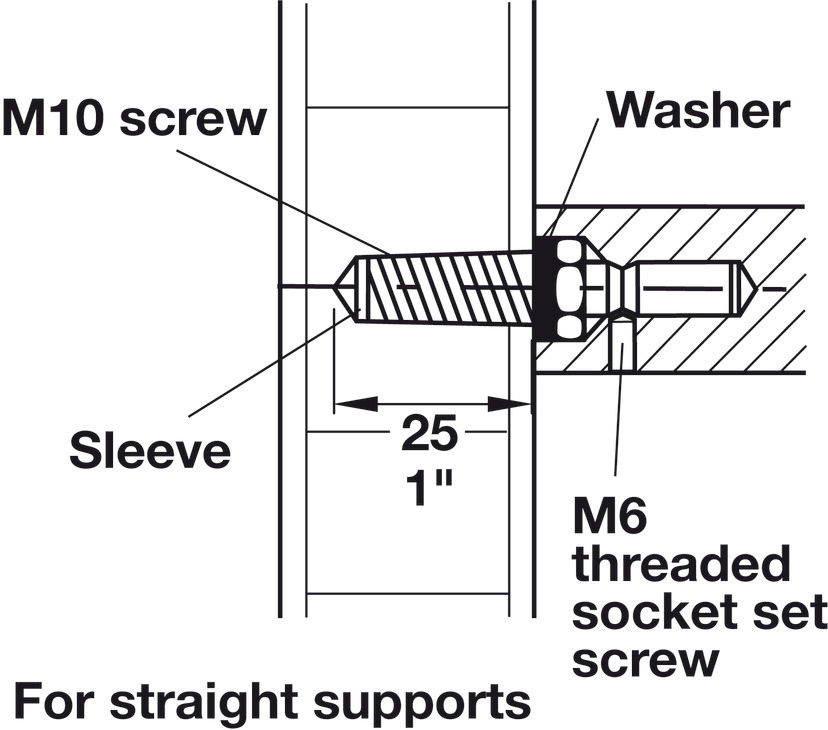

For support shape: for straight supports
Installation: with screw-in sleeve on one side
Order reference: Two mounting sets are required for each door handle when installed on one side.
Screw length: 25.00 mm
Suitable for: Startec door handle, model PH 2110, 2111, 2112, 2113, 2114, 2115, 2116, 2117, 2118, 2121, 2122, 2126, 2127, 2130, 2131, 2132, 2133, 2134, 2135, 2844, 2866
Supports: for straight supports
Thread diameter (inch): M10
Thread Ø: M10
