Hafele 910.51.084 Multi-Lock Adapter MLA 8Hafele 910.51.084 Multi-Lock-Adapter, MLA 8 offers a sophisticated solution for electronic access control in various indoor applications. Designed for use with Dialock's EFL furniture locks, this multi-lock adapter accommodates up to 16 MLA 8 units operating in a keyed alike configuration, or a single unit in a keyed to differ setup, providing flexibility to suit your security needs. Featuring a light grey plastic housing, the adapter operates within an input voltage range of 9.6 to 14.4 V, with a nominal voltage of 12 V, ensuring compatibility with a variety of systems. It supports a temperature range of 0 to 50 °C, making it suitable for diverse environments. The included mounting block and 0.5 m power supply cable facilitate quick and cost-effective installation, while LED function monitoring aids in troubleshooting, enhancing operational efficiency. This adapter is also equipped with multiple socket options: an RJ10 for EFL 3 and EFL 3C locks, an AMP socket for EFL 1, EFL 1C, EFL 6, EFL 41, and EFL 7 locks, and an RJ11 for FT 120 and FT 130 furniture terminals. For optimal performance, please consult Hafele staff regarding compatibility with older furniture terminals. Enhance your access control system with the Hafele Multi-Lock-Adapter, MLA 8.
Multi-Lock-Adapter, MLA 8
Dialock, Gray
up to 16 MLA 8 possible with keyed alike operation max. 1 MLA 8 possible with keyed to differ operation LED for function monitoring separate power supply quick and cost-effective installation
Unsuitable FT furniture terminals may be installed in old installations. If this is the case, please contact your appropriate Häfele member of staff.
Attributes
Area of application: electronic output extender for indoor use: For keyed alike and/or keyed to differ EFL furniture locks
Color/finish: Housing: Light grey
Input voltage: 9.6 – 14.4 V
Material: Housing: Plastic
Nominal voltage: 12.00 V
Operating temperature: 0 – 50 °C
Power supply cable length: 0.50 mm
Product Category: Multi-Lock-Adapter
Product type: Multi-Lock-Adapter
Suitable for Dialock device: EFL 3, EFL 3C, EFL 1, EFL 1C, EFL 6, EFL 41 and EFL 7 furniture lock, FT 120, FT 130 furniture terminal
Supplied with: Mounting block 0.5 m (11/16") Cable Instructions
Temperature max.: 122.00 °F
Temperature min.: 32.00 °F
Type of voltage supply: Power supply unit

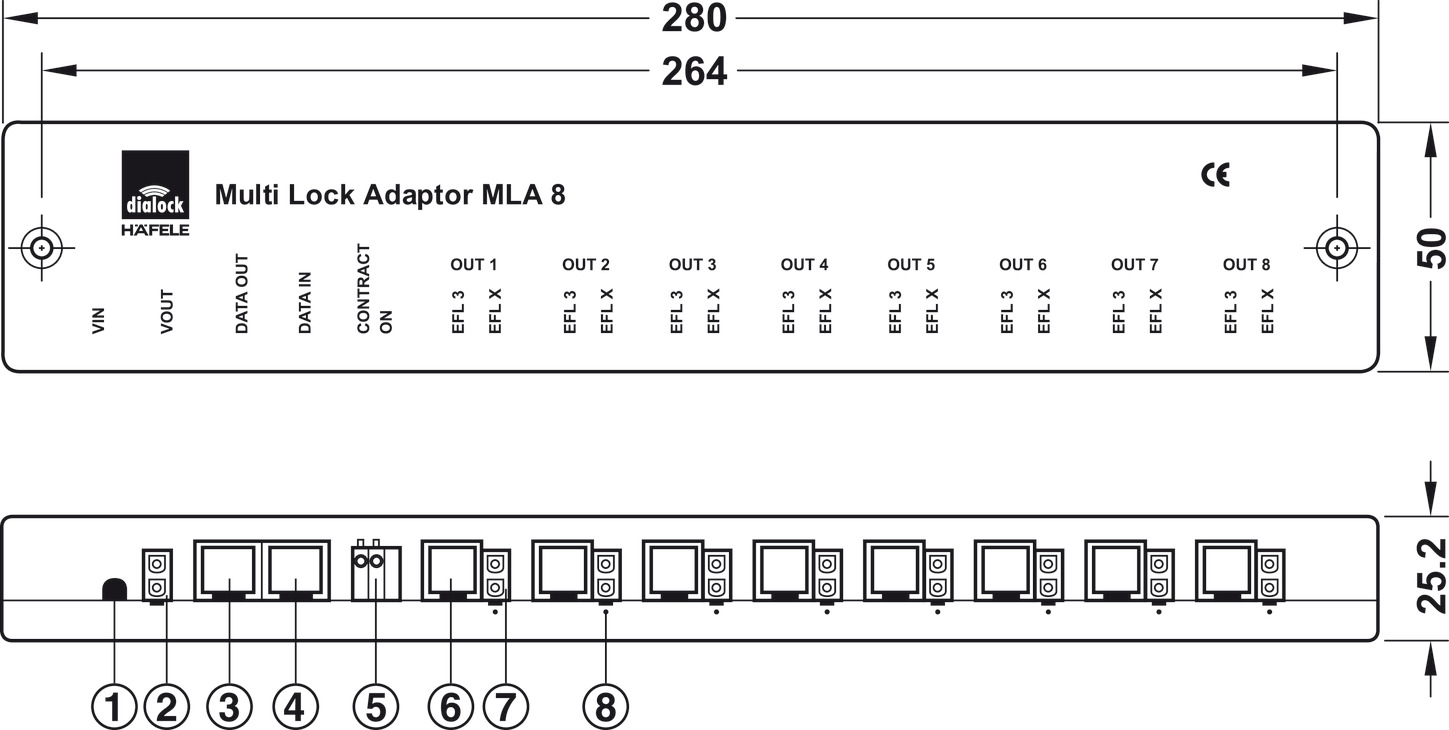

Version: with RJ10 socket for EFL 3 and/or EFL 3C furniture lock with AMP socket for EFL 1, EFL 1C, EFL 6, EFL 41 and/or EFL 7 furniture locks with RJ11 socket for FT 120, FT 130 furniture terminal with power and data cable Programming takes place outside the furniture, and there are LEDs for function monitoring and troubleshooting next to each of the 8 outputs
