Hafele 917.91.071 Controller, WTC 200, Dialock is designed for both indoor and outdoor use, offering a robust solution for electronic access control. With an IP30 degree of protection when installed in a sheet steel housing, this controller operates efficiently in ambient temperatures ranging from 0 to 50 °C and humidity levels of 10 to 95%. Utilizing advanced transponder technology including Tag-it™-ISO®, MIFARE Classic® EV1, and MIFARE® DESFire® EV2, this controller supports mains operation and provides intelligent online capabilities. Its features include selective actuation of up to two electrical devices, an integrated real-time clock for time-restricted locking rights, and logging of all procedures for enhanced security oversight. The WTC 200 facilitates easy installation with Plug & Play connectivity and allows for configuration modifications and online firmware updates using Dialock 2.0 software. It also includes four inputs for evaluating signals, making it ideal for monitoring systems such as master key setups. Designed to work seamlessly with WRU 200 and WRU 220 wall readers, the WTC 200 controller is a powerful component in any modern electronic locking system, ensuring efficient access management and security control.

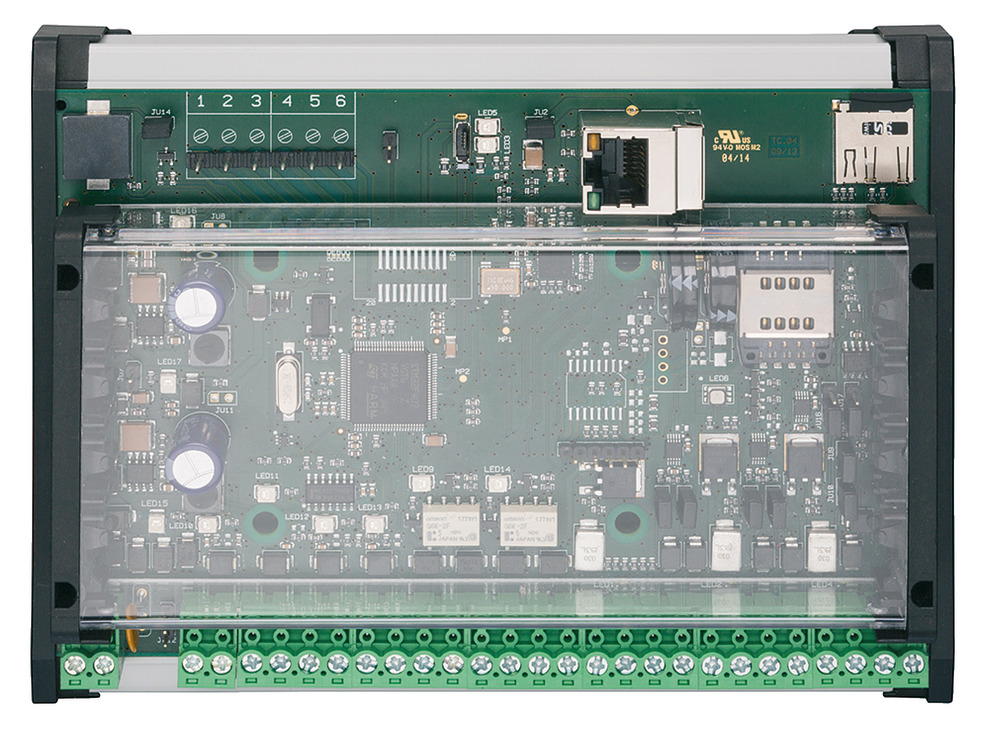

Controller, WTC 200, Dialock for indoor or outdoor use
Degree of protection IP 30 when installed in sheet steel housing. When installed on a top hat rail: depends on the housing
Functionality: Mains-operated, intelligent controller for online operation Use as authorisation writer and/or wall terminal, block lock function Selective actuation of up to 2 electrical devices Plug & Play installation, creation of all system parameters on an SD card by the software Authorisation writer for updating the authorisations at offline terminals Display of operating statuses in the Dialock 2.0 software Just-in-time change of authorisations With integrated real-time clock for programming time-restricted locking rights (setting of time zones) With logging of all procedures With 4 inputs for evaluating input signals (e.g. reed contact for door monitoring). In combination with an electric strike or mortice lock with feedback contact, this allows visual overall monitoring of the status of, for example, the master key system Configuration modifications and online firmware update with the Dialock 2.0 software
Installation reference: Connection between WRU 200/WRU 220 and WTC 200 electronic control unit with 4-core installation cable in accordance with VDE 0815: Type J-Y (St) Y 2 x 2 x 0.8 mm (twisted pair, shielded), max. length 100 m, please contact a Dialock specialist if deviating from this.
Material: Plastic
Order reference: Please order separately: WTX 200 module I/O expansion with 3 relay outputs and 4 analogue input ports 8-way relay module with 8 relay outputs and 1 analogue input port Please order supplementary and optional components such as energy control terminals, voltage supplies and voltage locks separately.
Product Type: Controller
Product type: Controller
Suitable for: for combination with WRU 200 and WRU 220 wall reader
Transponder technology: Tag-it™-ISO ®, MIFARE® DESFire® EV2, MIFARE Classic® EV1
Version: CPU: 32 bit 168 MHz Cortex M4 with slot for WTX 200 I/O expansion Storage media: 1 x Micro SD card (optionally encrypted with 128 bit SSL), 512 kB Flash, 128 KB S-RAM
