Hafele 917.91.088 Wall Terminal, WT 210, Dialock for indoor or outdoor use, offers a versatile solution for secure access control. With its compact design, the WT 210 is engineered for installation in flush-mounted or cavity wall back boxes, making it ideal for various environments including car parks, gates, and doors. This mains-operated terminal features an open Bluetooth interface, allowing seamless integration into modern security systems. Equipped with red/green LEDs, the WT 210 provides clear indications for locking and unlocking actions. Its digital input port can connect to a push button, enhancing user accessibility. The integrated real-time clock allows for programming time-restricted locking authorizations, ensuring controlled access according to specific time zones. For added security, a sabotage sensor triggers an alarm relay when the reader head is tampered with, reinforcing its reliability. Rated IP65, the WT 210 withstands harsh environments, operating efficiently between -25 to 70 °C with a relative humidity range of 10–95%. The terminal is compatible with advanced transponder technologies including Tag-it™-ISO®, MIFARE® DESFire® EV2, and MIFARE Classic® EV1. Please note that the power supply and electric strike must be ordered separately, ensuring a customized and secure installation for your specific needs.

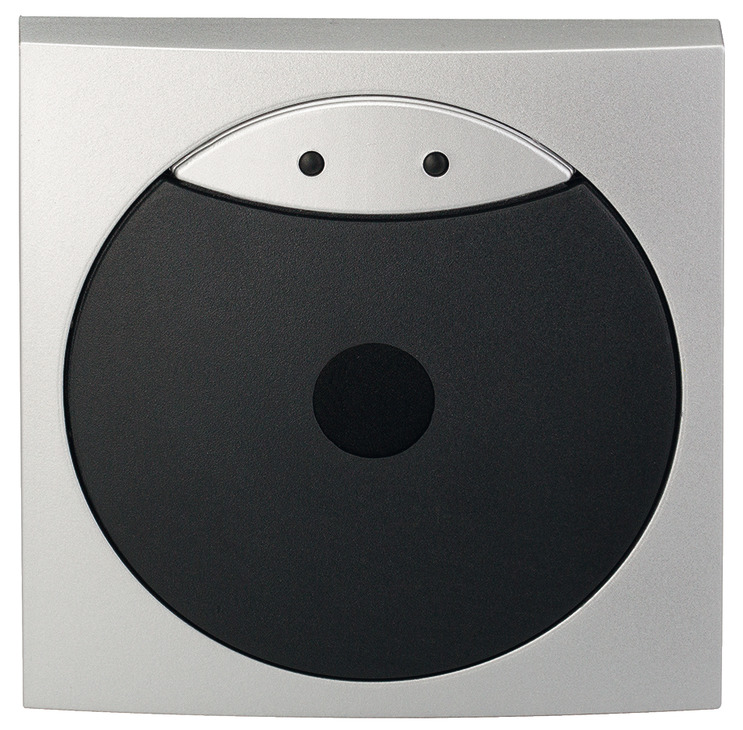

Wall terminal, WT 210, Dialock for indoor or outdoor use
With open Bluetooth interface

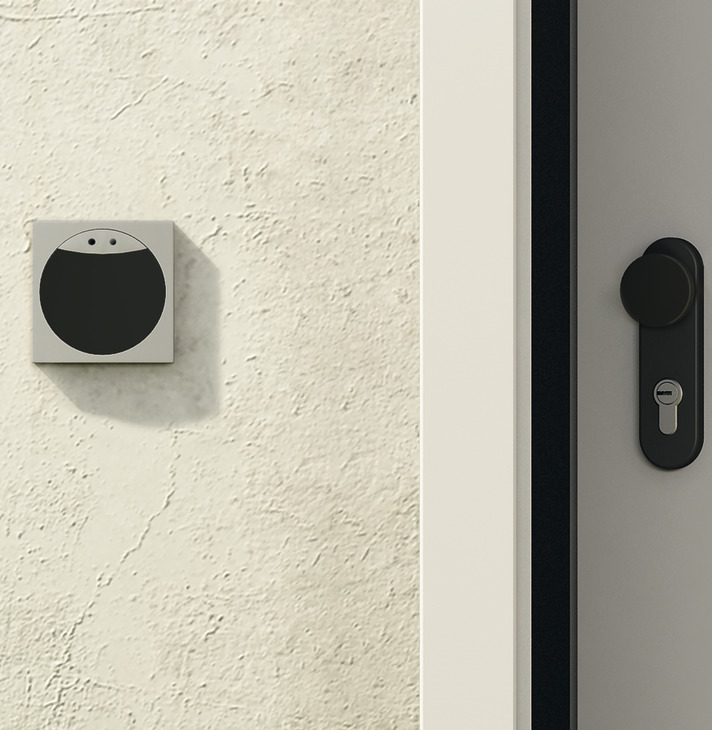

Area of application: For controlling car park barriers, gates, any type of door, furniture and furnishings, lights, alarm systems and video surveillance.
Color/finish: Anthracite coloredSilver colored

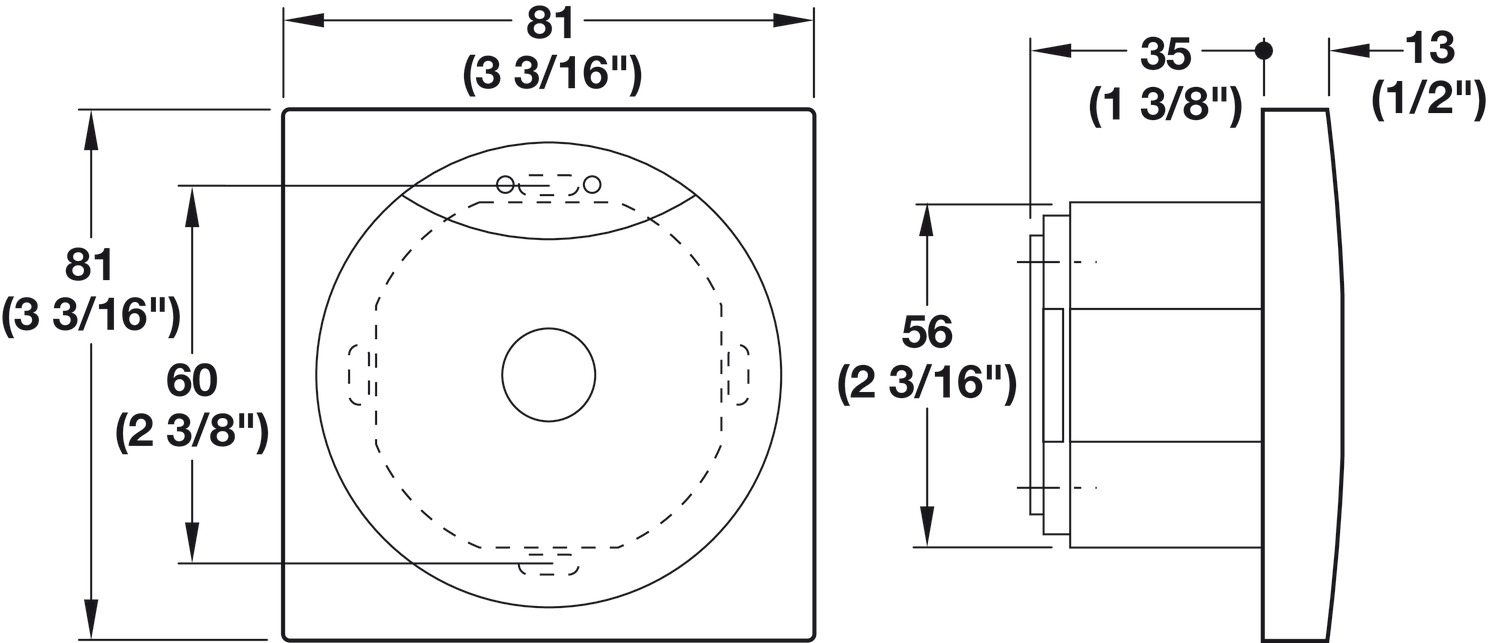

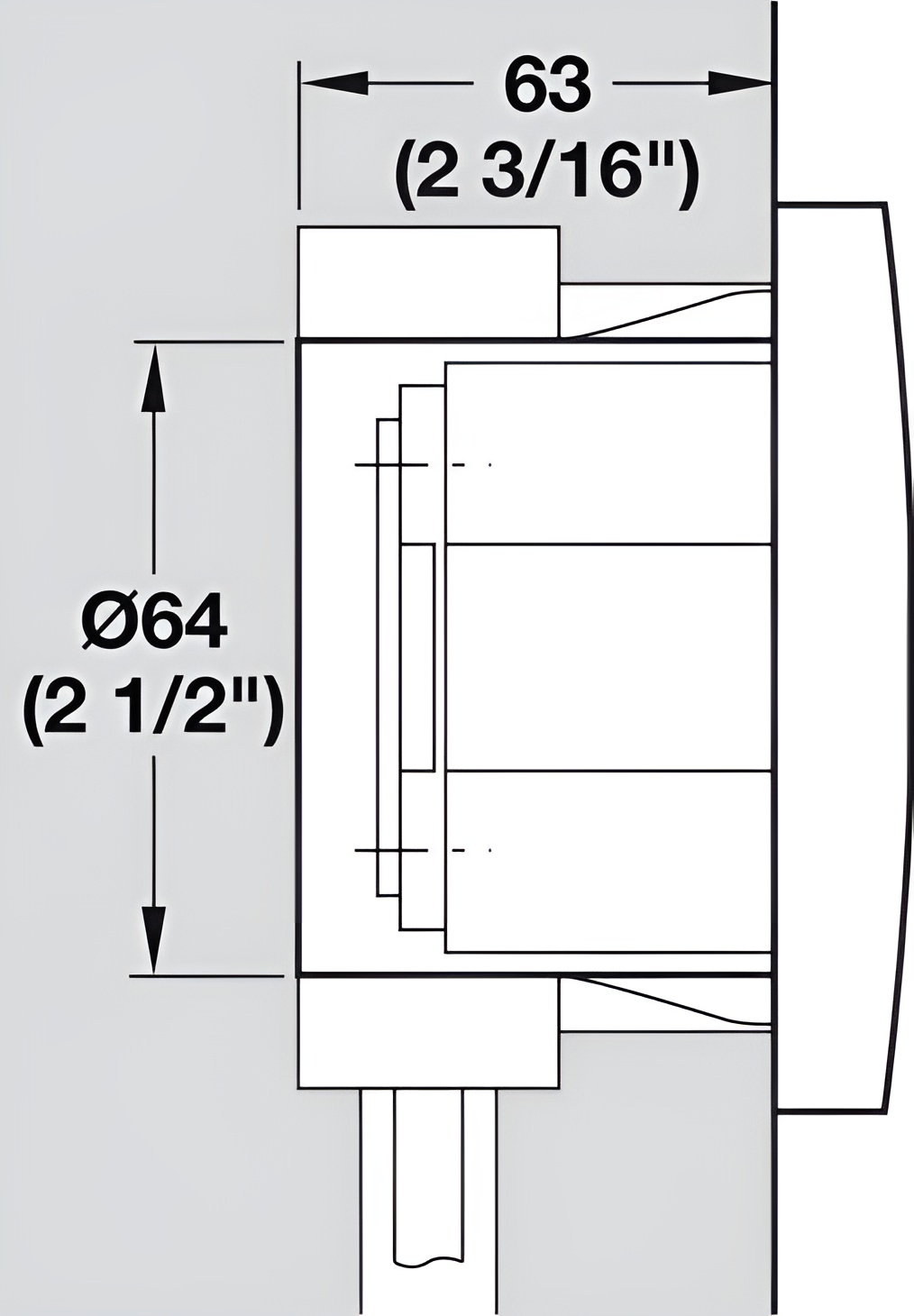

Installation reference: Notes on operation and installation Installation of wall reader in flush-mount socket with 2 device fastening screws (60 mm in accordance with DIN). Ensure horizontal screw points. Minimum distance between 2 wall readers 250 mm. Installing the wall reader in a metal environment requires planning.
Material: Plastic
Order reference: Please order power supply and strike separately.
Product Type: Wall terminal set
Product type: Wall terminal set
Supplied with: 1 WT 210 wall terminal with open Bluetooth interface (SPK)
Transponder technology: Tag-it™-ISO ®, MIFARE® DESFire® EV2, MIFARE Classic® EV1
