Hafele 917.91.113 Hafele Dialock WT 300 Wall Terminal Set, 81 x 81 mmHafele 917.91.113 Wall Terminal Set combines sleek design with advanced functionality, offering a modern solution for access control. Measuring 81 x 81 mm, this flush-mounted wall terminal is suitable for indoor use and compatible with standard switch boxes (60 mm diameter, 47 mm depth). It integrates MIFARE Classic, MIFARE DESFire, and Tag-it™ Iso RFID technologies, facilitating contactless access via RFID transponders or mobile devices using low power wireless technology. This all-in-one device incorporates both a wall reader and electronic control unit, streamlining installation and operation. Power supply requirements range from 12–24 V DC, with a maximum current consumption of 0.2 A at 12 V. It features a modular design, allowing for flexible applications including lift controls, parking barriers, and turnstiles. With an IP rating suitable for various environments, the terminal boasts tamper protection through an integrated sensor. Visual and acoustic signaling is provided via LED indicators and a piezo signal generator. The unit supports multiple operating modes, including stand-alone functionality and integration into the Häfele Dialock ecosystem through the My Dialock Manager app. Experience enhanced security and convenience with the Hafele 917.91.113 Wall Terminal Set, perfect for modern access management needs.

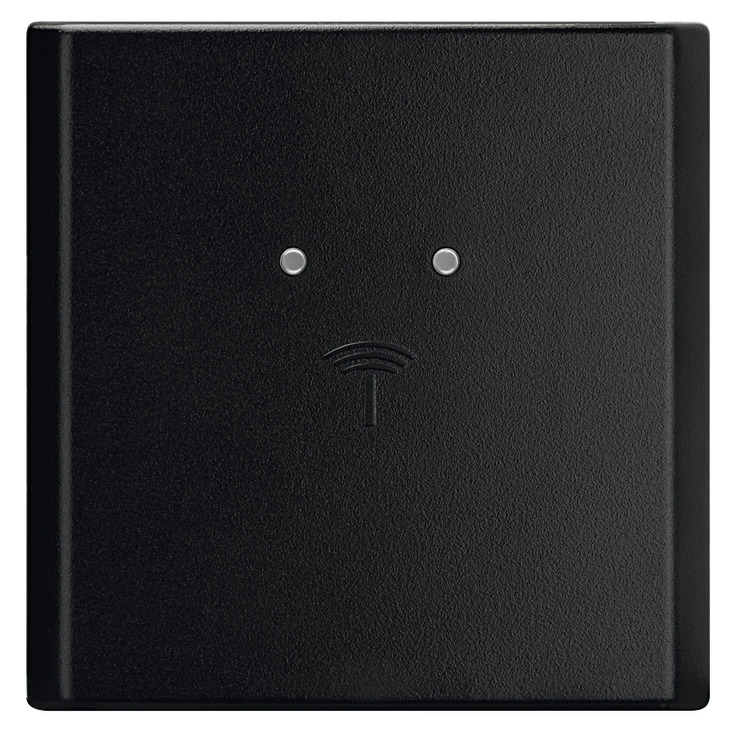

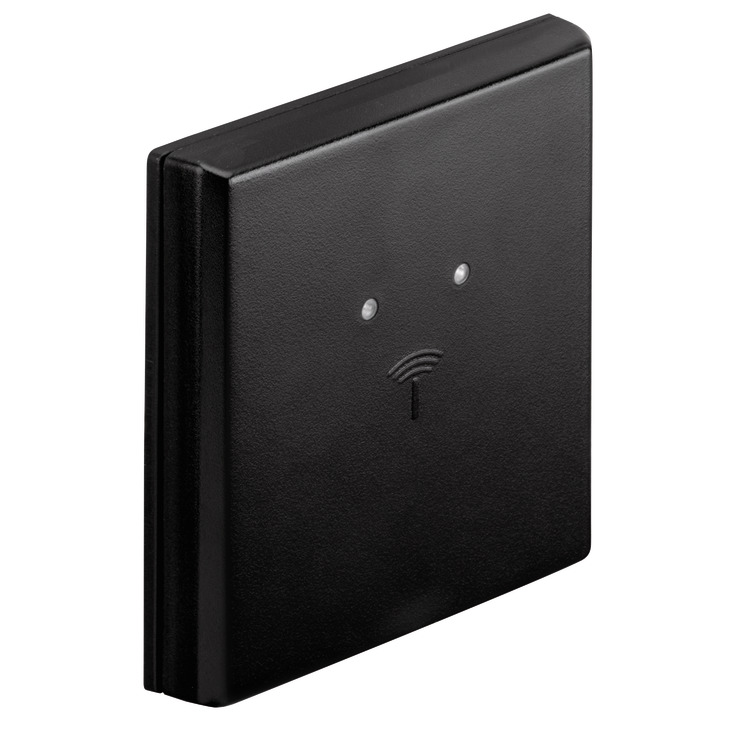

Wall terminal set, Hafele Dialock WT 300, Hafele design, 81 x 81 mm

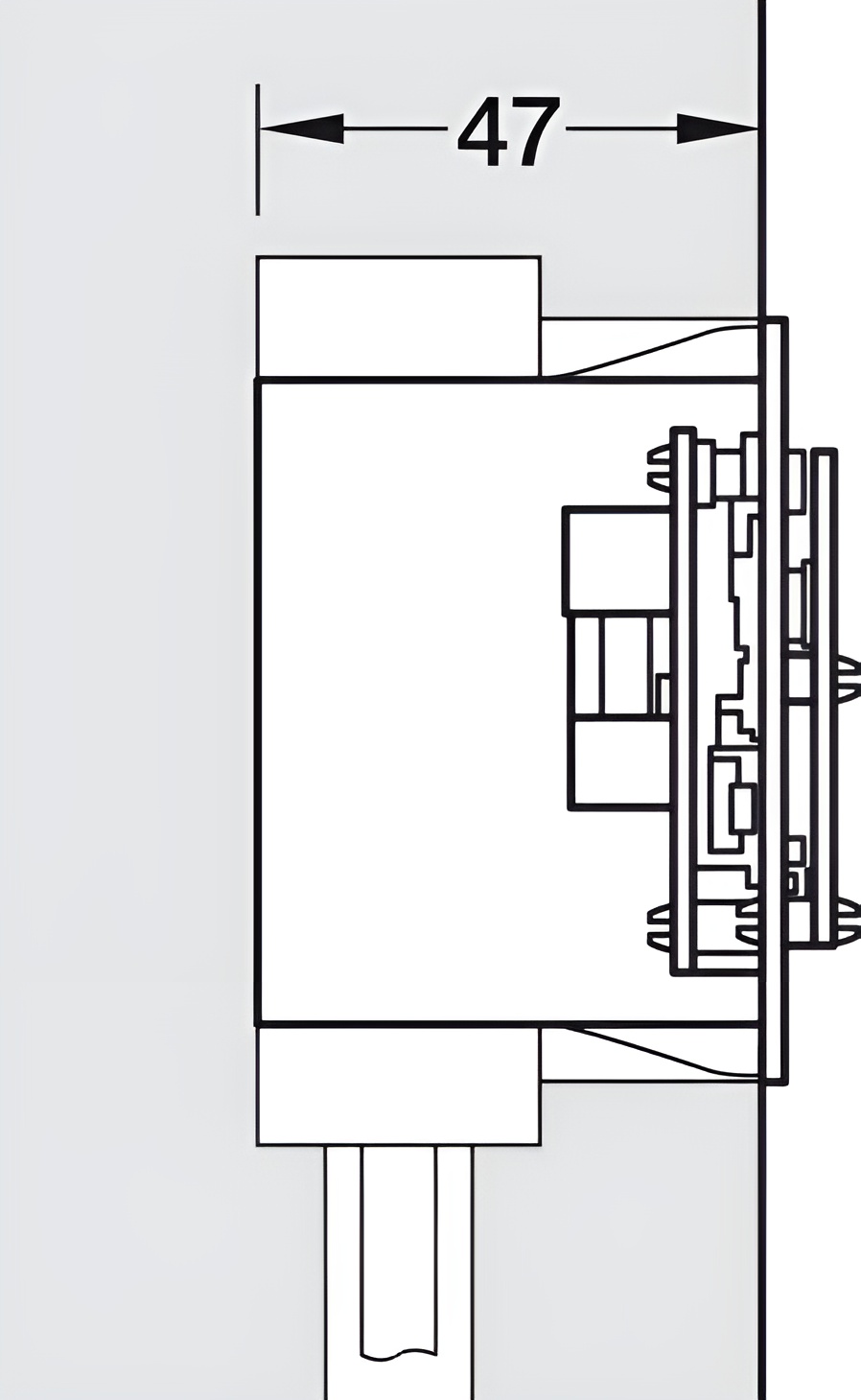

MIFARE Classic / MIFARE DESFire / Tag-it™ Iso / Low Power Wireless technology, suitable for switch boxes (Dia. 60 mm, depth 47 mm), For indoor use, flush-mounted, black
All-in-one wall terminal with Häfele design (wall reader and electronic control unit in one device). Modular design for indoor and outdoor use, as well as flush-mounted and surface-mounted applications. Connect Modular Core (CMC) including Bluetooth integrated.

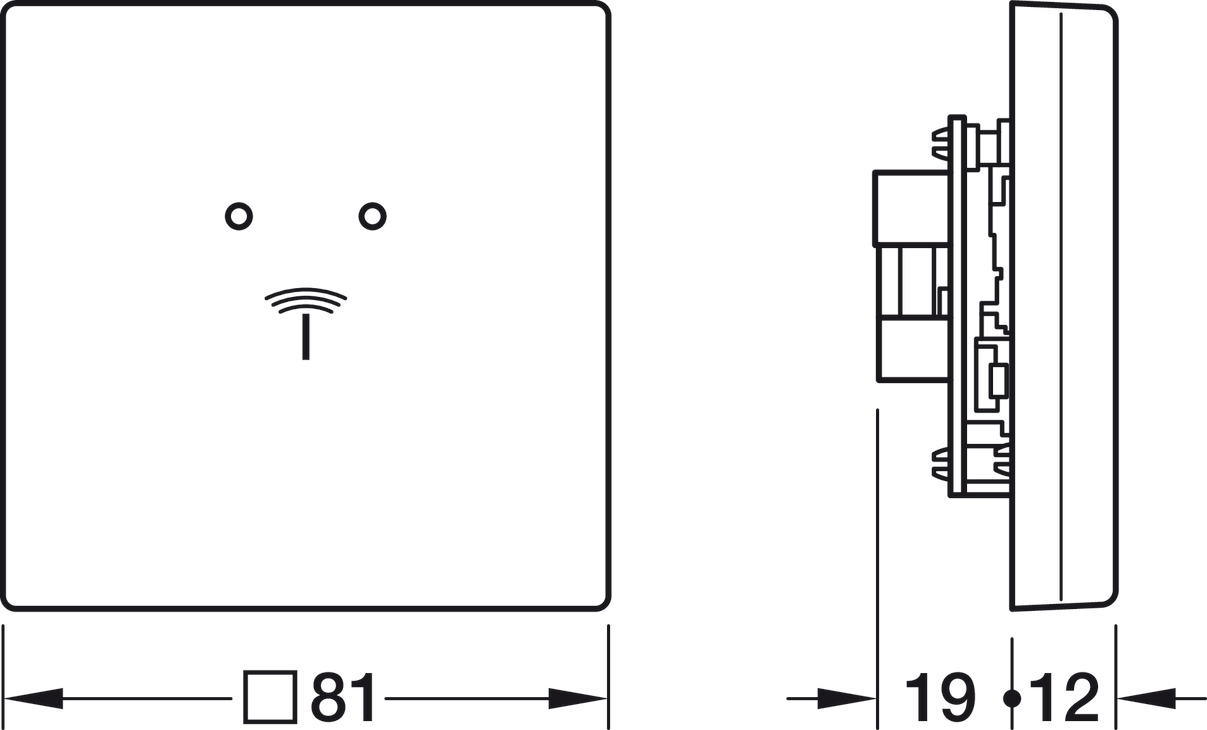

- Technical data Power supply voltage 12–24 V DC (±15 %) Current consumption max. (12 V) 0.2 A Power Consumption max. 2.4 W Output relais (NO, NC, COM) max. 48 V AC/DC, 5 A, 48 W Alarm relais (AL1, AL2) max. 48 V DC, 1 A, 25 W Digital input (N+, IN-) 5 V DC, 12 mA Serial interface (A, B) RS-485 Cable type J-Y(St) Y2 x 2 x 0.8 Usable wire cross-section 0.08 – 1.3 mm² Cable length max. (12 V) 100 m Cable length max. (24 V) 400 m Relative humidity 10 – 95 % not condensed Signalling 1x LED red, 1x LED green Piezo signal generator Dimensions 81 x 81 mm Installation depth 19 mm
Attributes
Configuration and administration: Stand-alone, Häfele My Dialock Manager app, Dialock software 2.0

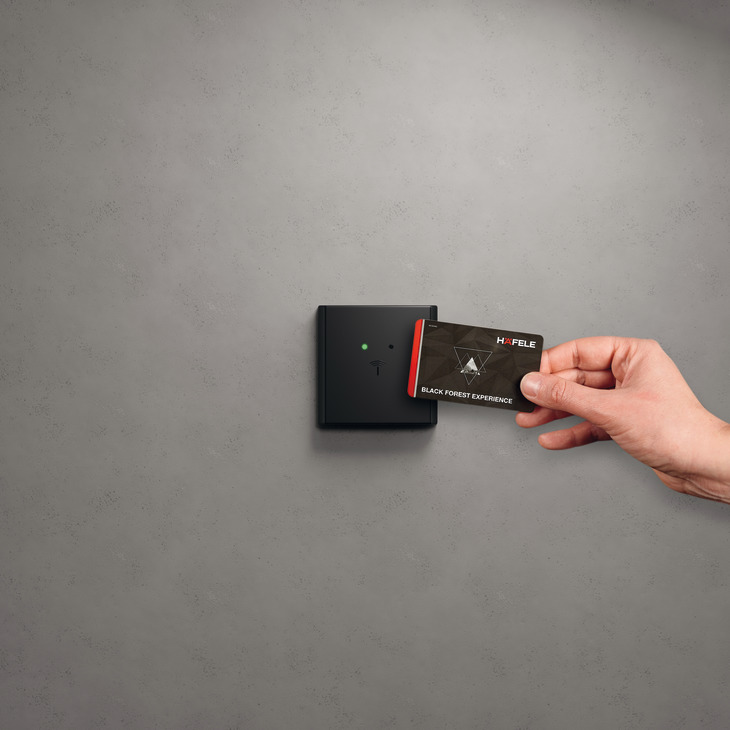

Features: modern design with LED display, contactless opening of the access point with RFID transponder or with a mobile terminal device via low power wireless technology, Operating modes: Dialock software 2.0, Häfele My Dialock Manager app, stand-alone, Integration into the Dialock system landscape, Offline functionality, Wireless online functionality with appropriate infrastructure, Tamper protection provided by integrated sensor, visual and acoustic signalling
Input: 1 switching input/pushbutton input
Interfaces: RS-485
Low power wireless technology: Bluetooth Low Energy, Thread
Order reference: Detailed information on the product and range of functions is available in the online shop or from your local Dialock technician.
Output: 1 relay output port, 1 alarm output
Power supply voltage: 12–24 V DC (±15 %)
RFID technology: MIFARE Classic EV1, MIFARE DESFire EV1 / EV2, Tag-it™ Iso
Relative humidity: 10 – 95 % not condensed
Scope of application: Lift control, Parking space barriers, Gates, Hinged and sliding doors, Turnstiles and separation systems
Shape: Häfele
Supplied with: 1 wall terminal
Transmission technology: RFID (13.56 MHz) / compatible with ISO 14443, ISO 15693, Bluetooth (2400-2483.5 MHz)
