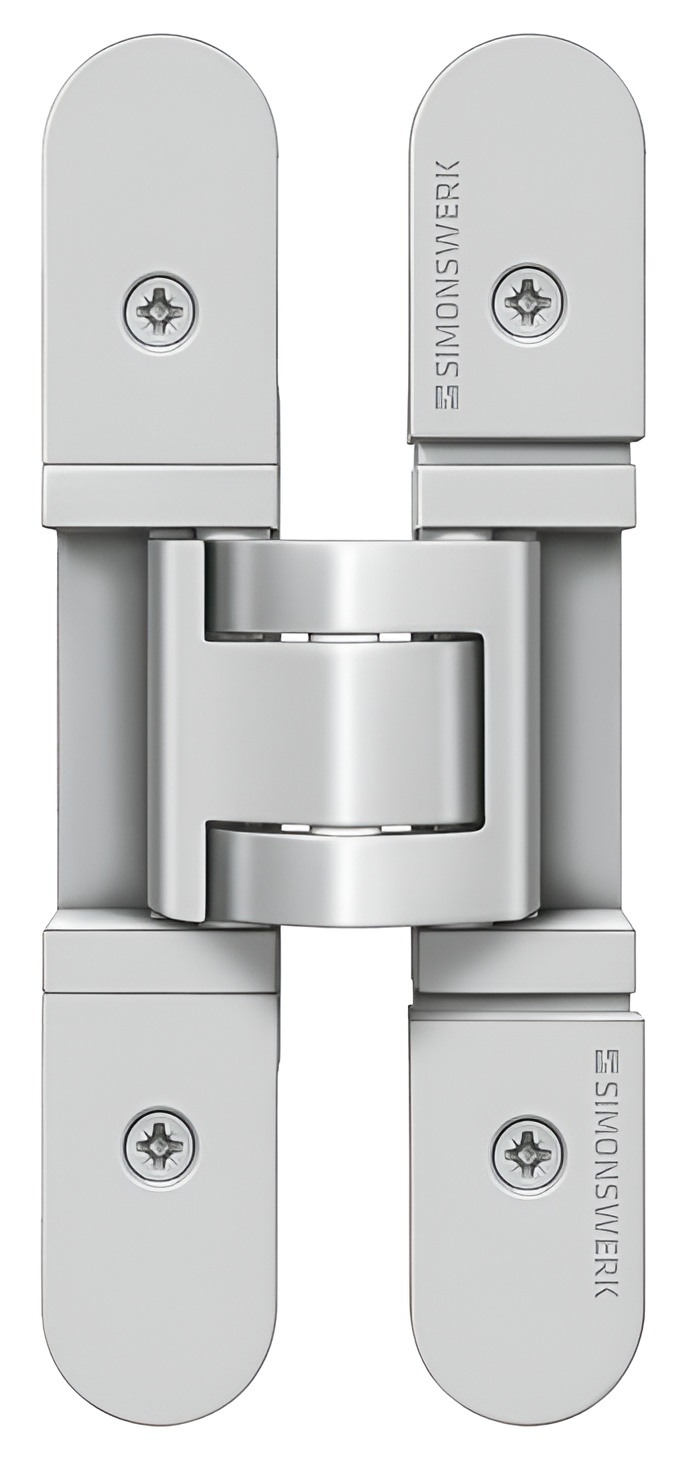

Hafele 924.16.803 Concealed Hinge, Simonswerk TECTUS TE 526 and 527 3D, offers a seamless solution for flush doors weighing up to 100 kg. Designed with versatility in mind, this hinge is suitable for both left and right-hand applications, making it an excellent choice for a variety of door frames, including wood, steel, and aluminum. Featuring a 3D adjustment capability, the hinge allows for precise alignment with continuous side adjustments of 3 mm, as well as height adjustments ranging from -3 to +3 mm, ensuring a perfect fit every time. The maintenance-free friction bearings add to its durability, eliminating the need for ongoing upkeep. Constructed from high-quality stainless steel with a sleek satin finish, the hinge not only provides functionality but also enhances the overall aesthetic of your doors. With a flange height of 155 mm and rounded edges, it maintains a low profile while supporting door thicknesses of 35 mm and above. Certified for 45-minute rated fire doors, this hinge meets rigorous safety standards. Maximize your design potential with the Hafele 924.16.803 hinge, ensuring reliable performance and a polished look for your interior spaces.
Concealed Hinge, Simonswerk TECTUS TE 526 and 527 3D, concealed for flush doors up to 100 kg
3D adjustable, size 155 mm, Stainless Steel, Satin, TE 526 3D
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: For wooden, steel or aluminium frames, for flush doors
Bearing type: Friction bearing, maintenance-free
Color/finish: matt
Direction: For DIN left and DIN right hand use
Door thickness: ≥35 mm
Door weight max.: 264 lbs

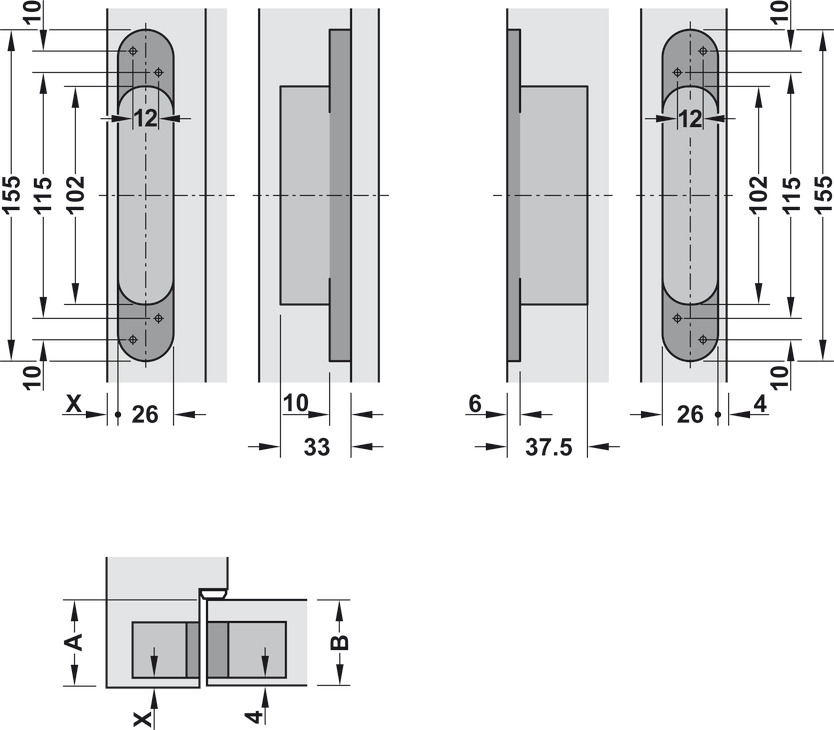

Flange height: 155 mm
Flange shape: rounded
Flange width: 26 mm
For door thickness min.: 1 3/8"
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|6|1|1|4|0|13
Material: Stainless steel
Max. door weight for 2 hinges: 100.00 kg
Model: TE 526 3D
Model series: TECTUS
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
