Hafele 924.17.137 Concealed Hinge, TECTUS TE 340 3D offers a sophisticated solution for flush doors with its sleek, matt deep black (RAL9005) finish. Designed to deliver seamless integration, this 3D adjustable hinge allows for continuous adjustments in three dimensions, ensuring precise alignment and function. The hinge accommodates door thicknesses of 38 mm and above, supporting a maximum weight of 176 lbs, making it suitable for a variety of applications in both metal and wooden frames. With a maintenance-free friction bearing system, this hinge guarantees reliable performance without the need for regular upkeep. It features a generous opening angle of 180 degrees, providing easy access while enhancing the usability of your doors. For added versatility, the optional "Energy" version enables permanent energy transmission from the frame to the door leaf without additional cable transitions. Certified in compliance with EN 1935:2002, the Hafele 924.17.137 hinge ensures quality and durability, making it an excellent choice for professionals and homeowners alike. Mounting is straightforward for both DIN left and right-hand applications, allowing for flexibility in installation. Elevate your door hardware with this reliable and elegant concealed hinge solution from Hafele.

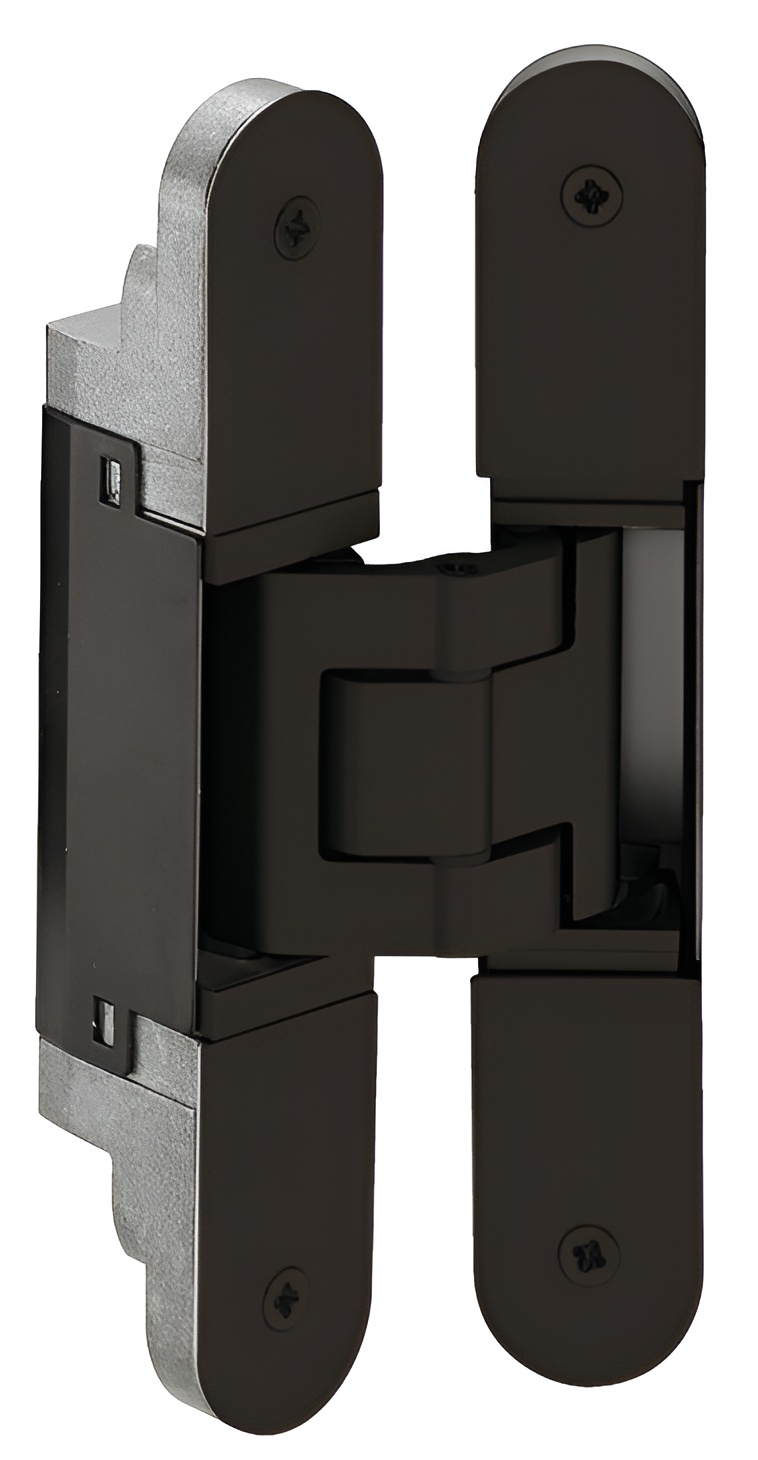

Concealed Hinge, TECTUS TE 340 3D
3D adjustable, size 160 mm, Matte deep black (RAL9005)
"Energy" version also available (optional). Permanent energy transmission from the frame into the door leaf is therefore possible without additional cable transition.
Adjustment facility: Continuous3-dimensional, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush doors
Bearing type: Friction bearing, maintenance-free
Color/finish: Black, matt, Powder coated
Direction: DIN left/right
Door thickness: ≥38 mm
Door thickness min.: 1 1/2"
Door weight max.: 176 lbs
For frame type: Metal frame, Aluminium frame, For wooden frame
Grade: 3|7|4|1|1|3|0|11
Material: Aluminum, Steel
Max. door weight for 2 hinges: 80.00 kg
Model series: TE 340 3D
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
