Hafele 924.17.223 Concealed Hinge, TECTUS TE 540 3D, offers a sophisticated solution for flush interior doors, designed for both metal and wood door frames. This hinge features a modern satin chrome look and is 3D adjustable, ensuring precise alignment and operation. With maintenance-free slide bearings, it eliminates the need for regular upkeep, providing long-lasting performance. Supporting door weights up to 264 lbs, this hinge is suitable for a variety of applications, including UL listed fire doors rated for 20 minutes. It accommodates door thicknesses starting from 1 9/16" and allows for a maximum door size of 4’ x 8’ for single doors and 8’ x 8’ for pairs. The hinge's robust construction includes aluminum and steel materials, ensuring durability and reliability. The flange height of 200 mm and a rounded flange shape enhance its aesthetic appeal while providing a secure fit. Mounting is versatile for both DIN left and DIN right hand applications, and the opening angle of 180 degrees allows for easy access. This hinge is certified in compliance with EN 1935:2002, making it an excellent choice for any building professional or discerning homeowner looking for quality and functionality in architectural hardware.

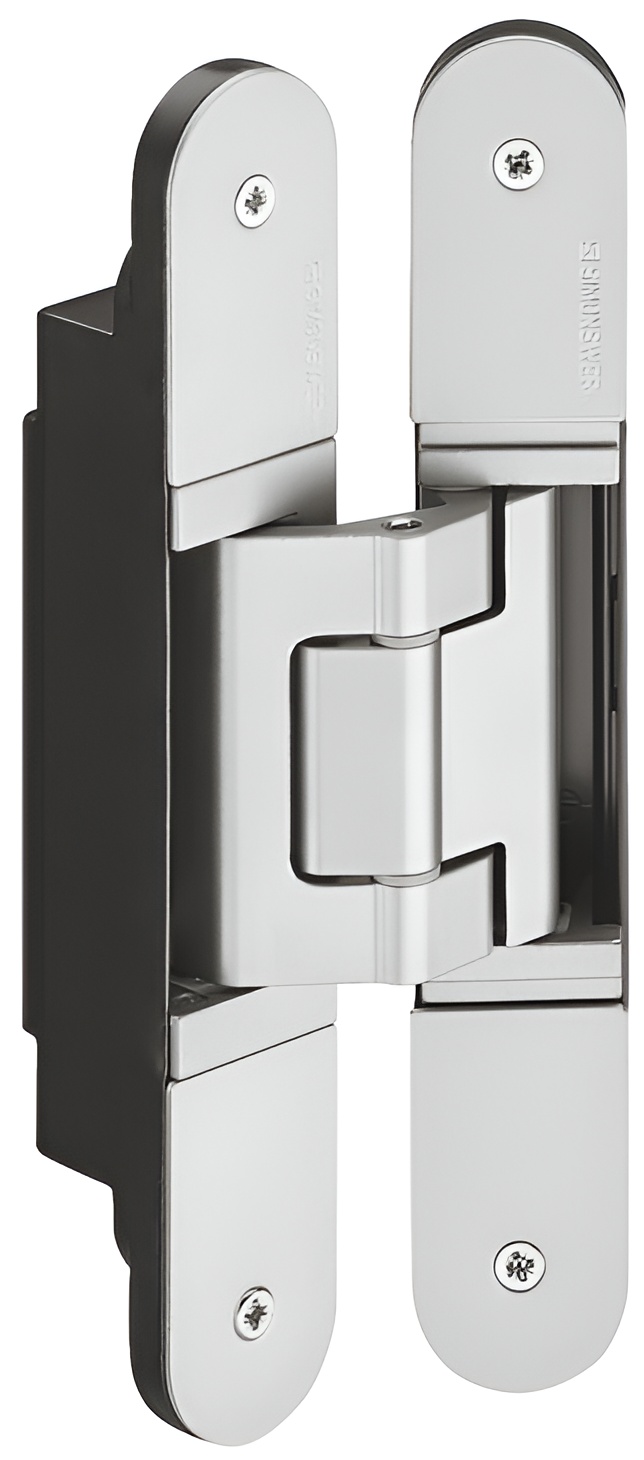

Concealed Hinge, TECTUS TE 540 3D
3D adjustable, size 200 mm, Satin chorme look
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush doors Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors
Color/finish: Silver colored, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door weight max.: 264 lbs

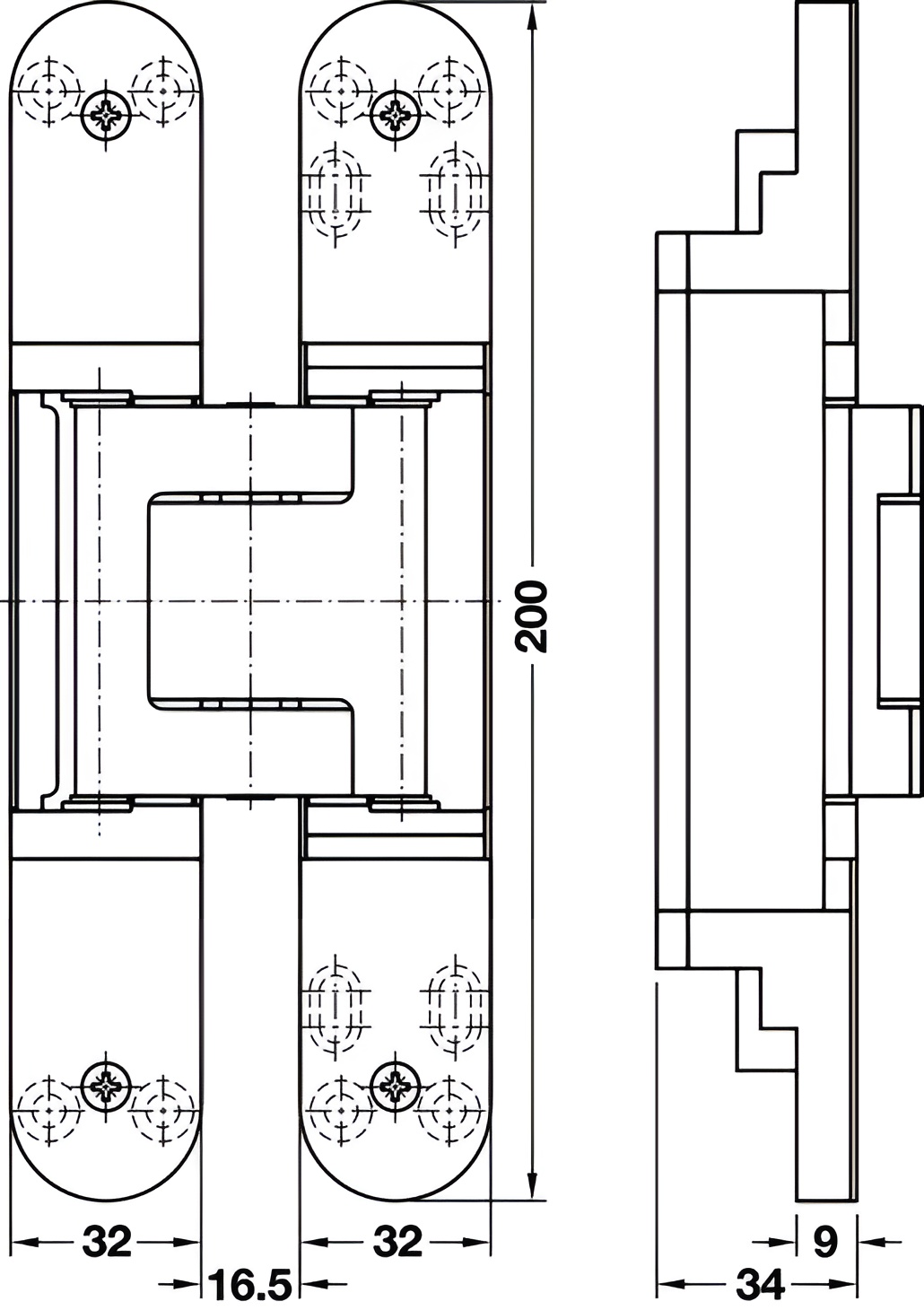

Flange height: 200 mm
Flange shape: rounded
Flange width: 32 mm
For door thickness min.: 1 9/16"
For frame type: Steel frame, Wooden/lining frame , Aluminium frame
Grade: 4|7|6|1|1|3|1|13
Material: Aluminum, Steel
Max. door weight for 2 hinges: 120.00 kg
Model: 124
Model series: TE 540 3D
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
