Hafele 924.17.224 Concealed Hinge, TECTUS TE 540 3D, is designed for seamless integration into flush interior doors made from hollow metal or wood. This versatile hinge features a sleek satin nickel finish and is 3D adjustable, allowing for precise alignment with side adjustment of up to 3 mm, height adjustment from -3 to +3 mm, and a closing pressure adjustment of ±1 mm. Engineered for durability, it utilizes maintenance-free slide bearings to ensure smooth operation over time. This hinge accommodates door thicknesses starting at 1 9/16 inches and supports a maximum door weight of 264 lbs. It is UL listed for 20-minute rated fire doors and is suitable for both left and right-hand applications. The hinge boasts an impressive opening angle of 180 degrees, making it ideal for spaces where maximum access is required. With a flange height of 200 mm and a rounded shape, the TE 540 3D hinge is compatible with steel, wooden, or aluminum frames. Certified in compliance with EN 1935:2002, this hinge is both reliable and compliant with industry standards. Elevate your door hardware with Hafele's TECTUS TE 540 3D, where functionality meets modern design.

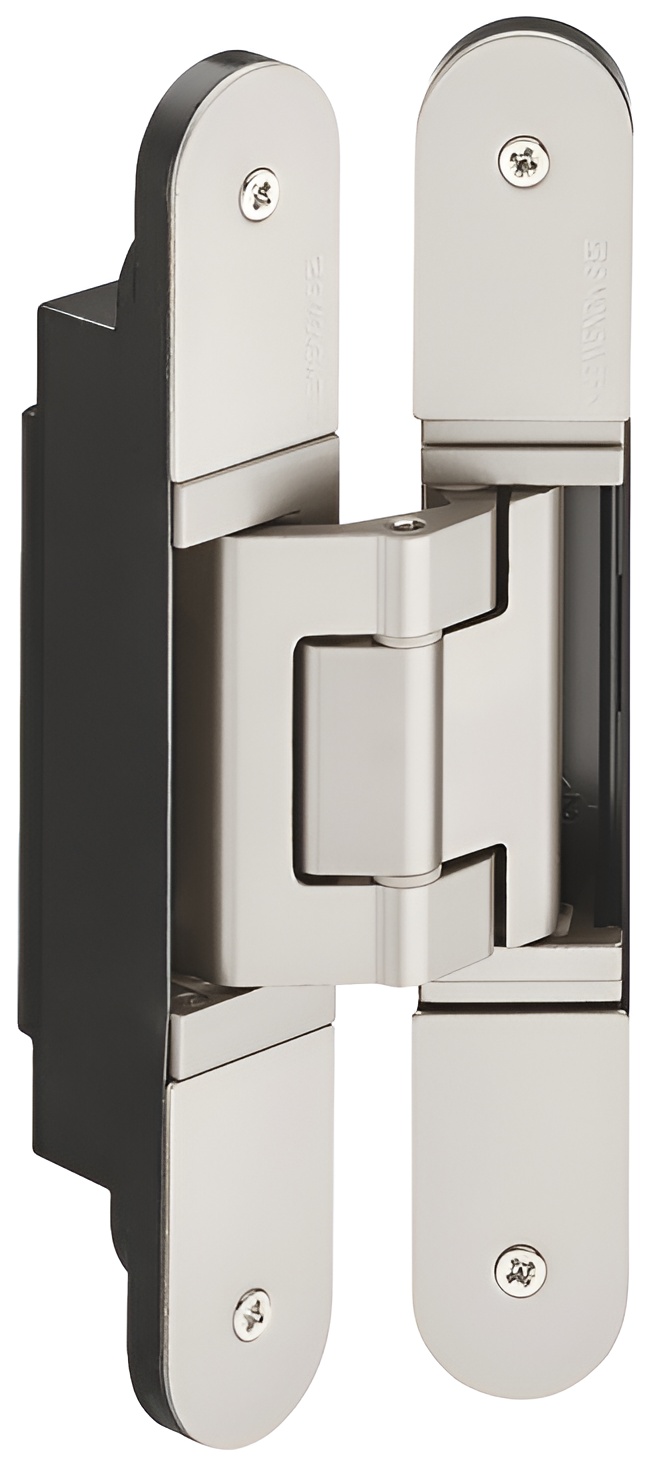

Concealed Hinge, TECTUS TE 540 3D
3D adjustable, size 200 mm, Satin nickel look
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush doors Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors
Color/finish: Nickel colored, satin-finish, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door weight max.: 264 lbs
Flange height: 200 mm
Flange shape: rounded
Flange width: 32 mm
For door thickness min.: 1 9/16"
For frame type: Steel frame, Wooden/lining frame , Aluminium frame
Grade: 4|7|6|1|1|3|1|13
Material: Aluminum, Steel
Max. door weight for 2 hinges: 120.00 kg
Model: TE 540 3D
Model series: TE 540 3D
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
