Hafele 924.17.237 Concealed Hinge, TECTUS TE 540 3D, offers a sleek and modern solution for flush interior doors in both hollow metal and wooden frames. This versatile hinge is 3D adjustable, allowing for precise alignment with continuous adjustments of ±3 mm in height and side positioning, ensuring a perfect fit every time. Crafted in a striking matt deep black finish (RAL 9005), the hinge complements a variety of design aesthetics while maintaining a robust construction capable of supporting doors weighing up to 264 lbs. Ideal for fire-rated applications, it is UL listed for 20-minute rated fire doors, accommodating door sizes up to 4’ x 8’ for single doors and 8’ x 8’ for pairs. The Hafele TE 540 3D hinge features maintenance-free slide bearings, enhancing durability and performance while minimizing upkeep. Its rounded flange design provides a clean appearance, with a flange height of 200 mm and a width of 32 mm. The hinge is compatible with DIN left and right-hand mounting, making it an adaptable choice for various installations. With an opening angle of 180 degrees and certified in compliance with EN 1935:2002, the Hafele 924.17.237 ensures both functionality and style in any project.

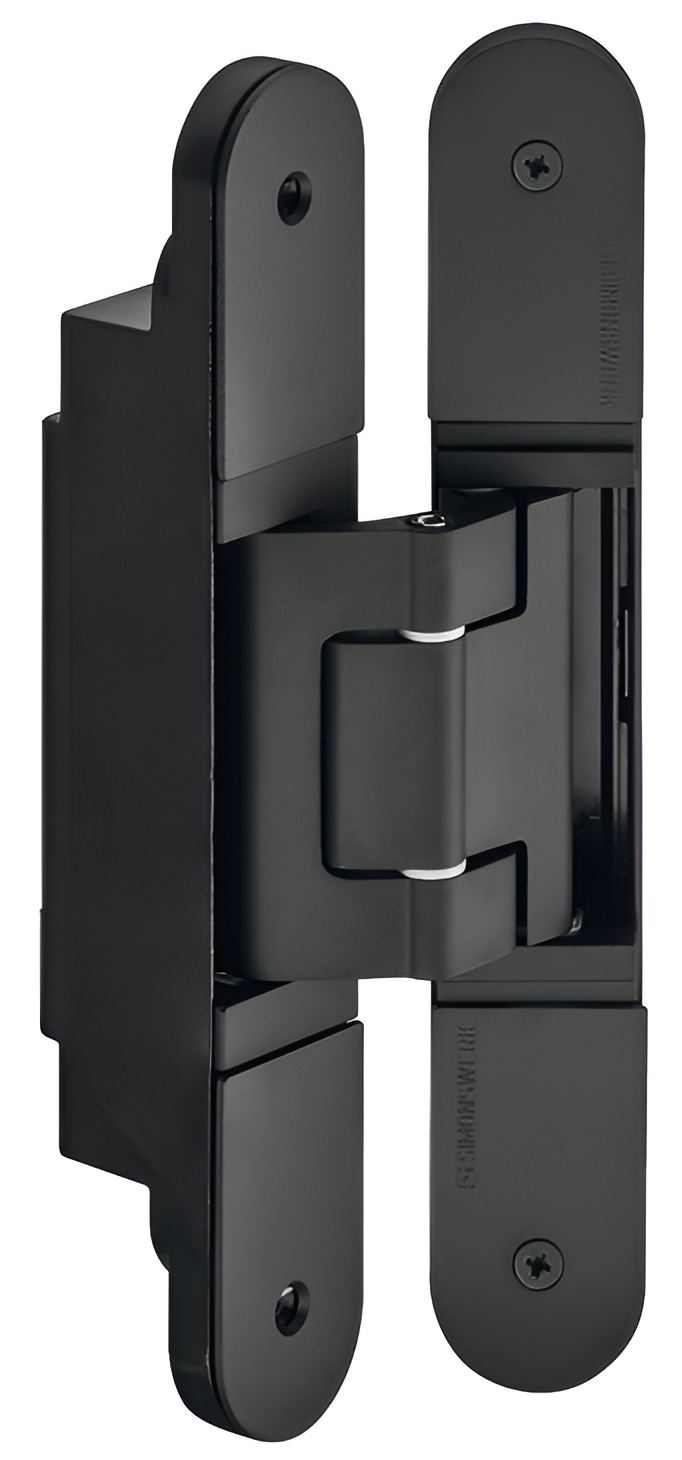

Concealed Hinge, TECTUS TE 540 3D
3D adjustable, size 200 mm, matte deep black (RAL 9005)
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush doors Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors
Color/finish: Black, RAL 9005, matt, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door weight max.: 264 lbs
Flange height: 200 mm
Flange shape: rounded
Flange width: 32 mm
For door thickness min.: 1 9/16"
For frame type: Steel frame, Wooden/lining frame , Aluminium frame
Grade: 4|7|6|1|1|3|1|13
Material: Aluminum, Steel
Max. door weight for 2 hinges: 120.00 kg
Model: 107
Model series: TE 540 3D
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
