Hafele 924.17.323 Concealed Hinge, TECTUS TE 540 3D A8, offers a seamless blend of functionality and elegance, making it an ideal choice for both residential and commercial applications. This 3D adjustable hinge accommodates door frames made from hollow metal, wood, or aluminum, providing versatility for various construction needs. With a satin chrome look, it enhances the aesthetic appeal of flush doors while ensuring robust performance. Designed for doors with a thickness of at least 40 mm, this hinge supports a maximum door weight of 220 lbs, making it suitable for heavy-duty applications. The adjustment facility allows for continuous side movement of 3 mm, height adjustments of -3 to 3 mm, and a closing pressure variance of ±1 mm, ensuring precise alignment and smooth operation. Certified in compliance with EN 1935:2002, the TECTUS TE 540 3D A8 is UL listed for use in 20-minute rated fire doors, ensuring safety and reliability. With an opening angle of 180°, it provides full access, while its maintenance-free slide bearings guarantee long-lasting performance. The hinge can be mounted for both DIN left and right-hand use, making it exceptionally adaptable for any project.

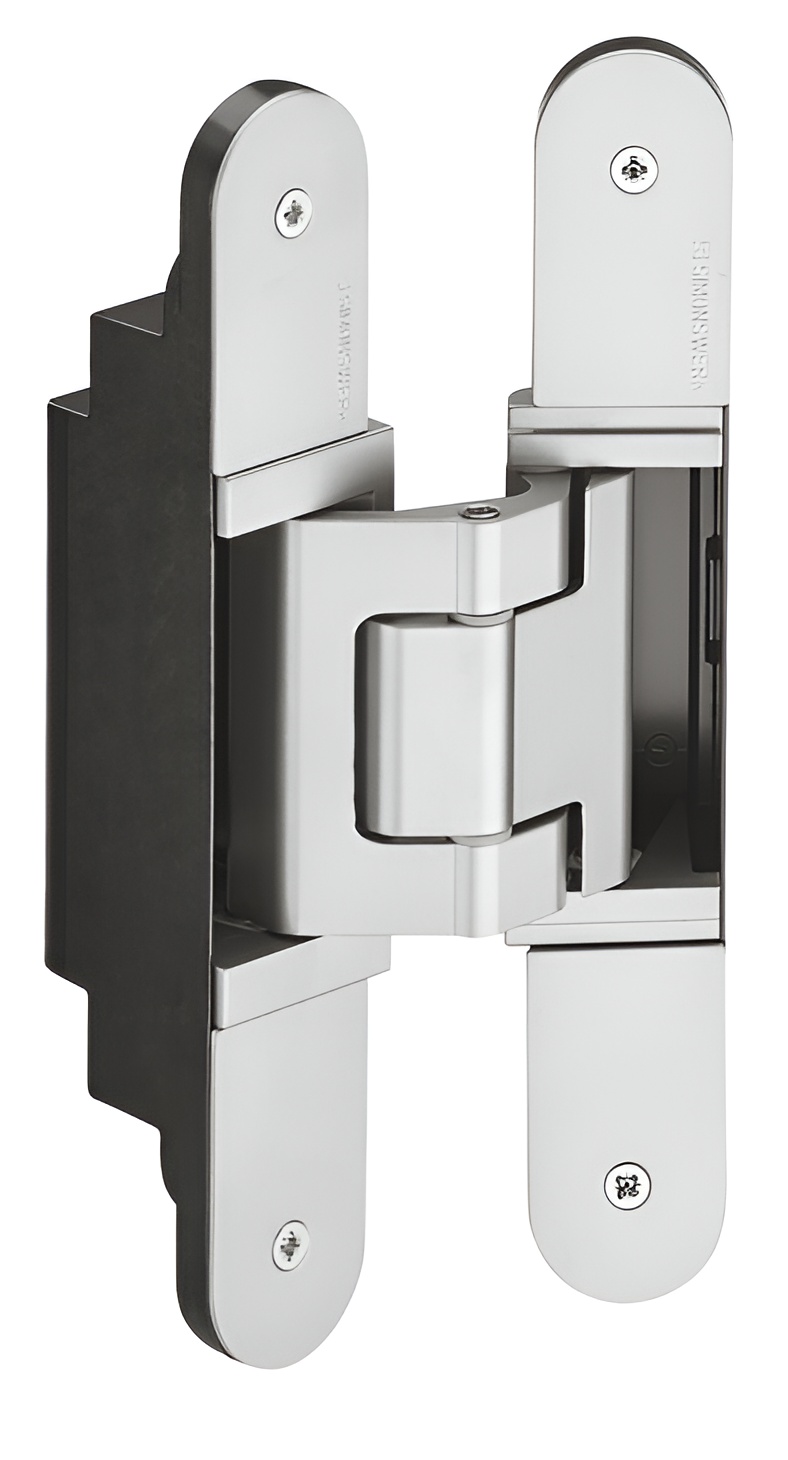

Concealed Hinge, TECTUS TE 540 3D A8
3D adjustable, size 200 mm, Satin chrome look
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16") thick surface applied panel UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors) Left and right applications
Color/finish: Silver colored, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door thickness min.: 1 9/16"
Door weight max.: 220 lbs
Flange height: 200 mm
Flange shape: rounded
Flange width: 32 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|5|1|1|3|1|12
Material: Aluminum, Steel
Max. door weight for 2 hinges: 100.00 kg
Model: 124
Model series: TECTUS TE 540 3D A8
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
Version: Maintenance-free slide bearings
