Hafele 924.17.324 Concealed Hinge, TECTUS TE 540 3D A8 offers a seamless integration of durability and design for flush doors. With a satin nickel finish, this hinge not only enhances aesthetics but also ensures robust performance. Designed for door frames made from hollow metal, wood, or aluminum, it accommodates door thicknesses starting from 40 mm and supports weights up to 220 lbs. This model features 3D adjustability, allowing for precise alignment with continuous side adjustments of 3 mm, height adjustments ranging from -3 to 3 mm, and closing pressure adjustments of ±1 mm. The hinge opens to an impressive angle of 180 degrees, providing full access to doorways. Ideal for both left and right applications, it is certified in compliance with EN 1935:2002, ensuring reliability and safety. For optimal use, the hinge is suitable for doors with an additional surface-applied panel up to 8 mm thick and is UL listed for 20-minute rated fire doors. With a flange height of 200 mm and a rounded shape, it blends functionality with a sleek profile. Whether for residential or commercial projects, the Hafele TECTUS TE 540 3D A8 hinge is an excellent choice for those seeking quality and versatility in architectural hardware.

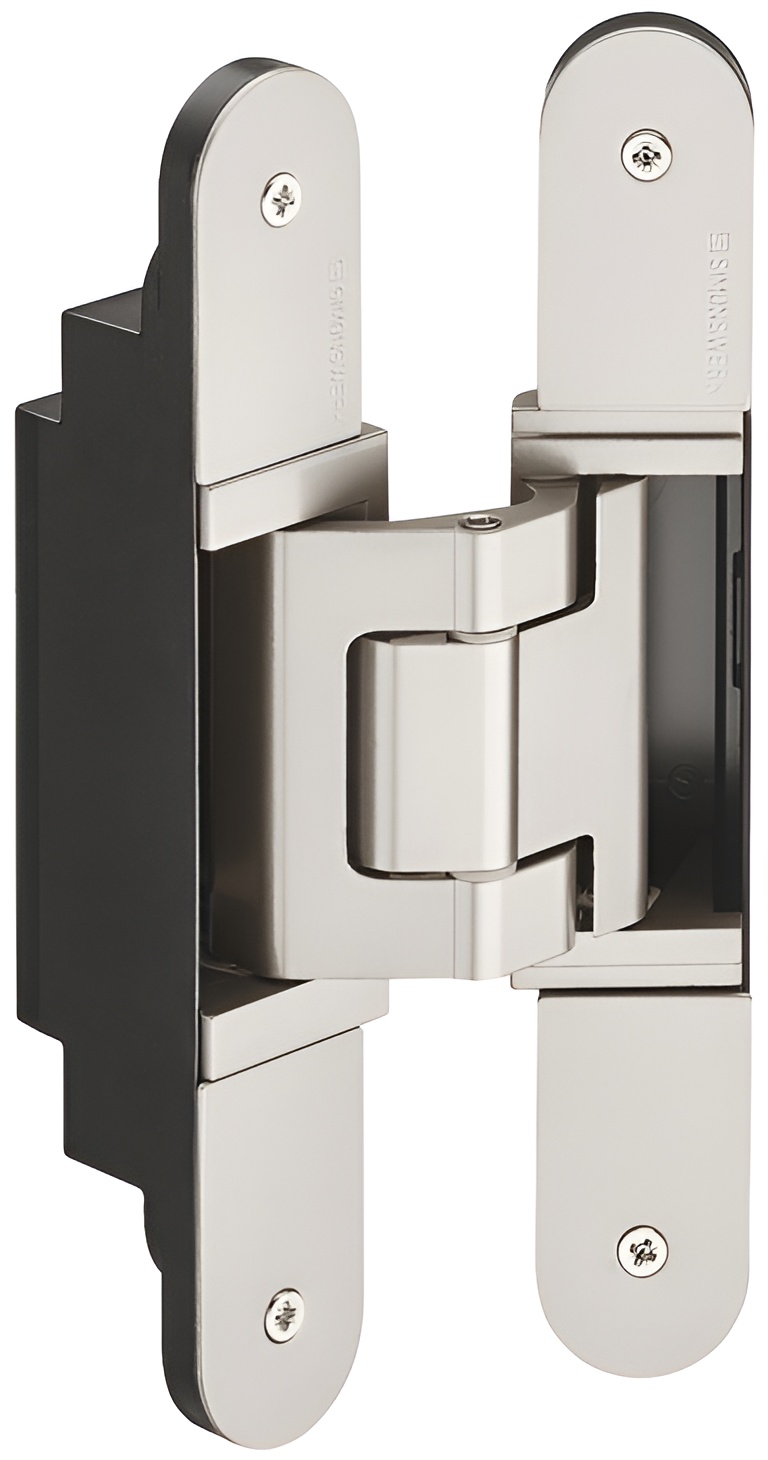

Concealed Hinge, TECTUS TE 540 3D A8
3D adjustable, size 200 mm, Satin nickel look
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16") thick surface applied panel UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors) Left and right applications
Color/finish: satin-finish, nickel plated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door thickness min.: 1 9/16"
Door weight max.: 220 lbs
Flange height: 200 mm
Flange shape: rounded
Flange width: 32 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|5|1|1|3|1|12
Material: Aluminum, Steel
Max. door weight for 2 hinges: 100.00 kg
Model: 125
Model series: TECTUS TE 540 3D A8
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
Version: Maintenance-free slide bearings
