Hafele 924.17.325 Concealed Hinge, TECTUS TE 540 3D A8 offers a seamless blend of functionality and aesthetics for flush door applications. Designed for use with hollow metal or wood door frames, this hinge supports doors with a thickness of at least 40 mm and can accommodate a maximum weight of 220 lbs. Its stainless steel effect finish and rounded flange shape ensure durability while complementing modern architectural styles. This hinge features a 3D adjustment capability, allowing for precise alignment with side adjustments of up to 3 mm and height adjustments ranging from -3 to +3 mm. The maintenance-free slide bearings enhance its performance, providing smooth operation without the need for regular upkeep. With a certified compliance to EN 1935:2002, it is suitable for both left and right-hand applications and is UL listed for 20-minute rated fire doors. The Hafele 924.17.325 hinge is specifically designed for door sizes up to 4' x 8' for single doors and 8' x 8' for pairs, making it versatile for various projects. Its robust construction from aluminum and steel, combined with an opening angle of 180 degrees, ensures that it can handle the demands of any high-traffic environment while maintaining a sleek appearance.

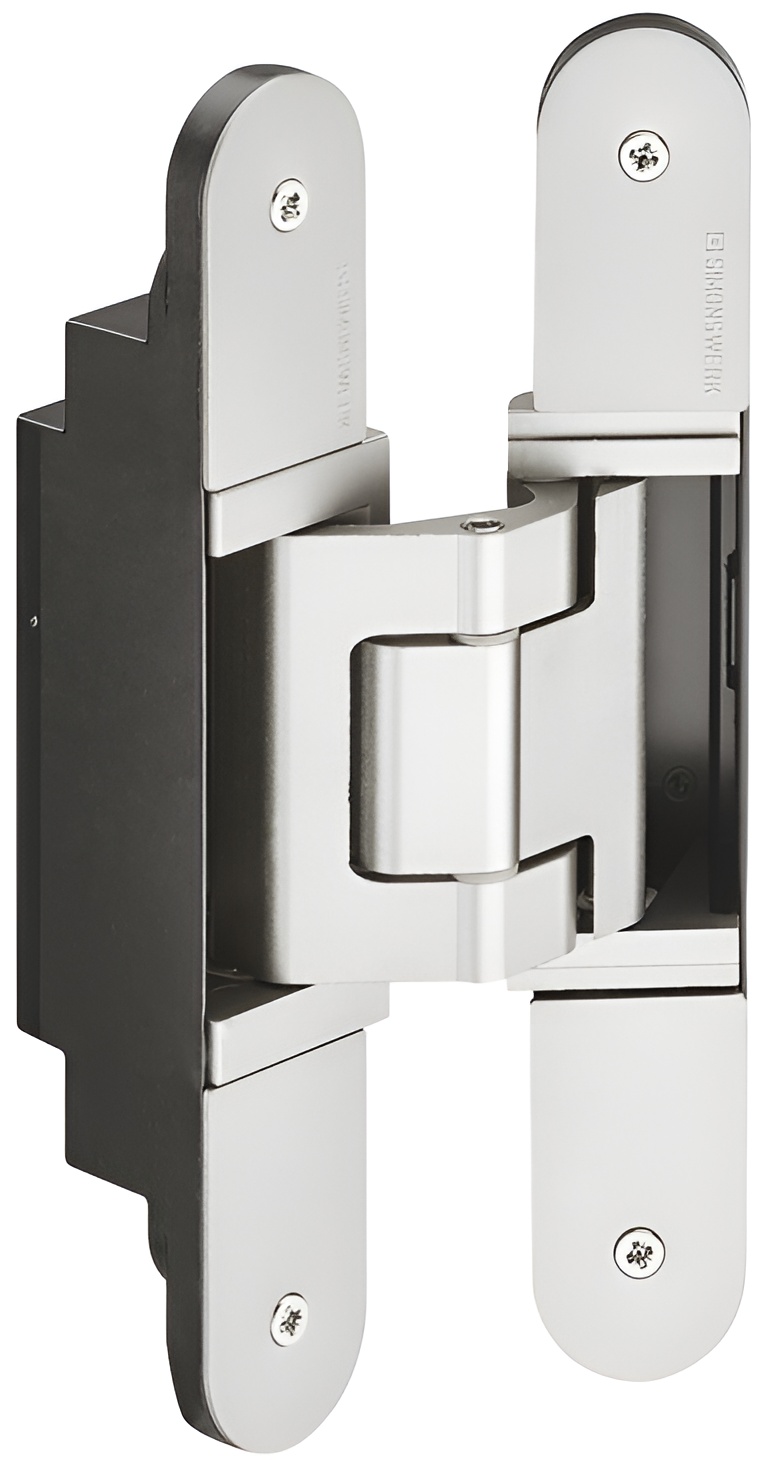

Concealed Hinge, TECTUS TE 540 3D A8
3D adjustable, size 200 mm, Stainless steel look
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16") thick surface applied panel UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors) Left and right applications
Color/finish: stainless steel effect, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door thickness min.: 1 9/16"
Door weight max.: 220 lbs
Flange height: 200 mm
Flange shape: rounded
Flange width: 32 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|5|1|1|3|1|12
Material: Aluminum, Steel
Max. door weight for 2 hinges: 100.00 kg
Model: 126
Model series: TECTUS TE 540 3D A8
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
Version: Maintenance-free slide bearings
