Hafele 924.17.423 Concealed Hinge, TECTUS TE 640 3D offers a sleek and modern solution for flush interior doors. Designed for versatility, this hinge is 3D adjustable, allowing for precise alignment in various applications, including door frames made of hollow metal, wood, or aluminum. With a maximum door weight capacity of 440 lbs and a minimum door thickness of 1 9/16 inches, it is ideal for both residential and commercial use. This hinge is finished in a satin chrome look, enhancing any decor while providing robust functionality. It features a rounded flange design with a height of 240 mm and a width of 32 mm, ensuring a discreet aesthetic. The opening angle of 180 degrees further promotes easy access. The Hafele 924.17.423 is UL listed for 20-minute rated fire doors, accommodating door sizes up to 4' x 8' for single doors and 8' x 8' for pairs. Installation is straightforward with support for DIN left and right-hand use. Additionally, it is equipped with maintenance-free slide bearings, ensuring longevity and reliability. Certified in compliance with EN 1935:2002, this hinge is a premium choice for any building project.

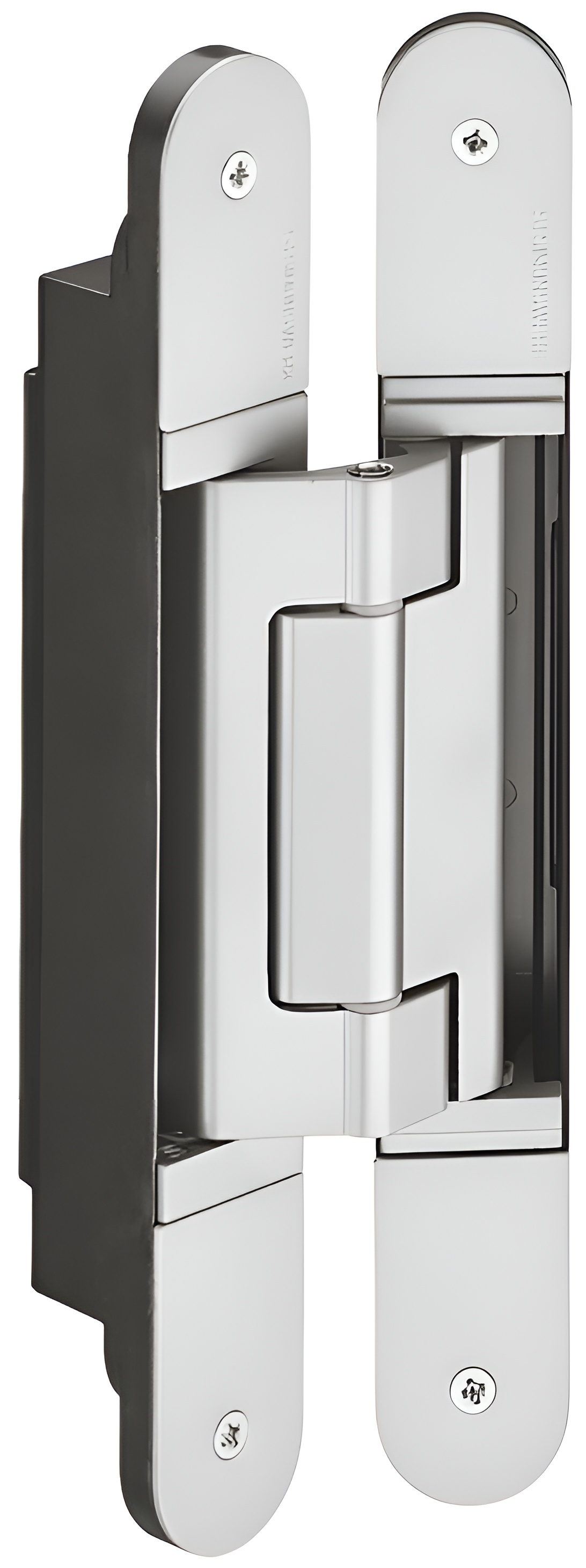

Concealed Hinge, TECTUS TE 640 3D
concealed, 3D adjustable, size 240 mm, Satin chrome look
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush interior doors. UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors
Color/finish: Silver colored, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door thickness min.: 1 9/16"
Door weight max.: 440 lbs
Flange height: 240 mm
Flange shape: rounded
Flange width: 32 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|6|1|1|3|1|14
Material: Aluminum, Steel
Max. door weight for 2 hinges: 200.00 kg
Model: 124
Model series: TECTUS TE 640 3D
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
Version: Maintenance-free slide bearings
