Hafele 924.17.424 Concealed Hinge, TECTUS TE 640 3D offers a seamless blend of functionality and aesthetics for modern interior spaces. This concealed hinge, with a satin nickel look, is designed for flush interior doors and is suitable for use in frames made of hollow metal, wood, or aluminum. With a flange height of 240 mm and a rounded shape, it effortlessly integrates into various design schemes. The hinge features 3D adjustability, allowing for continuous adjustments in height, width, and closing pressure, ensuring precise alignment and operation. It accommodates door thicknesses starting at 1 9/16" and supports impressive maximum door weights of up to 440 lbs. Certified in compliance with EN 1935:2002, the TECTUS TE 640 3D is also UL listed for 20-minute rated fire doors, making it ideal for both residential and commercial applications. This model is designed for DIN left and right-hand use, providing versatility in installation. The maintenance-free slide bearings ensure long-lasting performance without the need for regular upkeep. With an opening angle of 180 degrees, it enhances accessibility and ease of movement, making it a practical choice for any professional looking to elevate door functionality while maintaining a sleek appearance.

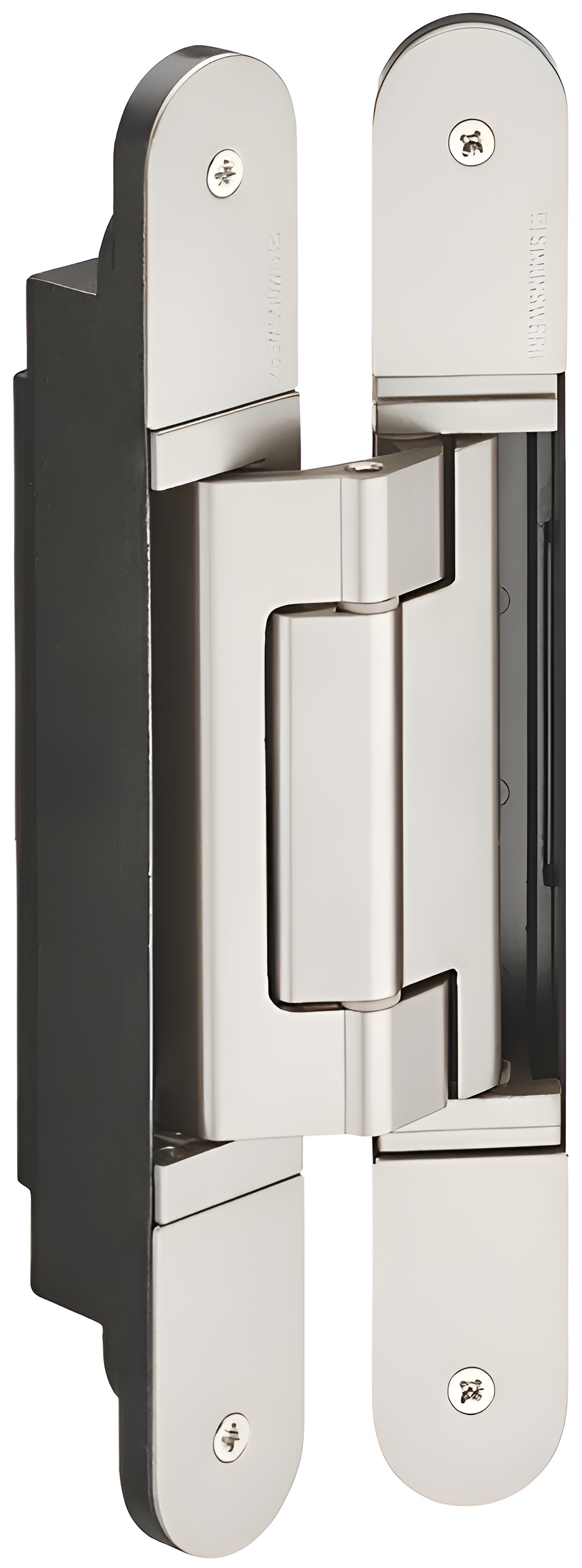

Concealed Hinge, TECTUS TE 640 3D
concealed, 3D adjustable, size 240 mm, Satin nickel look
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush interior doors. UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors
Color/finish: Nickel colored, satin-finish, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door thickness min.: 1 9/16"
Door weight max.: 440 lbs
Flange height: 240 mm
Flange shape: rounded
Flange width: 32 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|6|1|1|3|1|14
Material: Aluminum, Steel
Max. door weight for 2 hinges: 200.00 kg
Model: 125
Model series: TECTUS TE 640 3D
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
Version: Maintenance-free slide bearings
