Hafele 924.17.425 Concealed Hinge, TECTUS TE 640 3D is engineered for seamless integration into flush interior doors, offering a sleek stainless steel look. This hinge is 3D adjustable, allowing for precise positioning with side adjustments of 3 mm and height adjustments ranging from -3 to +3 mm. Designed to accommodate door frames made of steel, wood, or aluminum, it is UL listed for 20-minute rated fire doors, supporting single doors up to 4' x 8' and pairs up to 8' x 8'. With a robust maximum door weight capacity of 440 lbs and a minimum door thickness of 1 9/16", this hinge ensures reliable performance even in demanding applications. The rounded flange, measuring 240 mm in height and 32 mm in width, enhances both durability and aesthetics. Maintenance-free slide bearings add to its longevity, while the hinge supports an impressive opening angle of 180 degrees for full accessibility. Whether you're working with hollow metal or wooden frames, the Hafele 924.17.425 hinge is designed for both DIN left and right-hand mounting, making it a versatile solution for various door designs. Certified in compliance with EN 1935:2002, this hinge combines functionality with elegant design, making it an ideal choice for modern architectural projects.

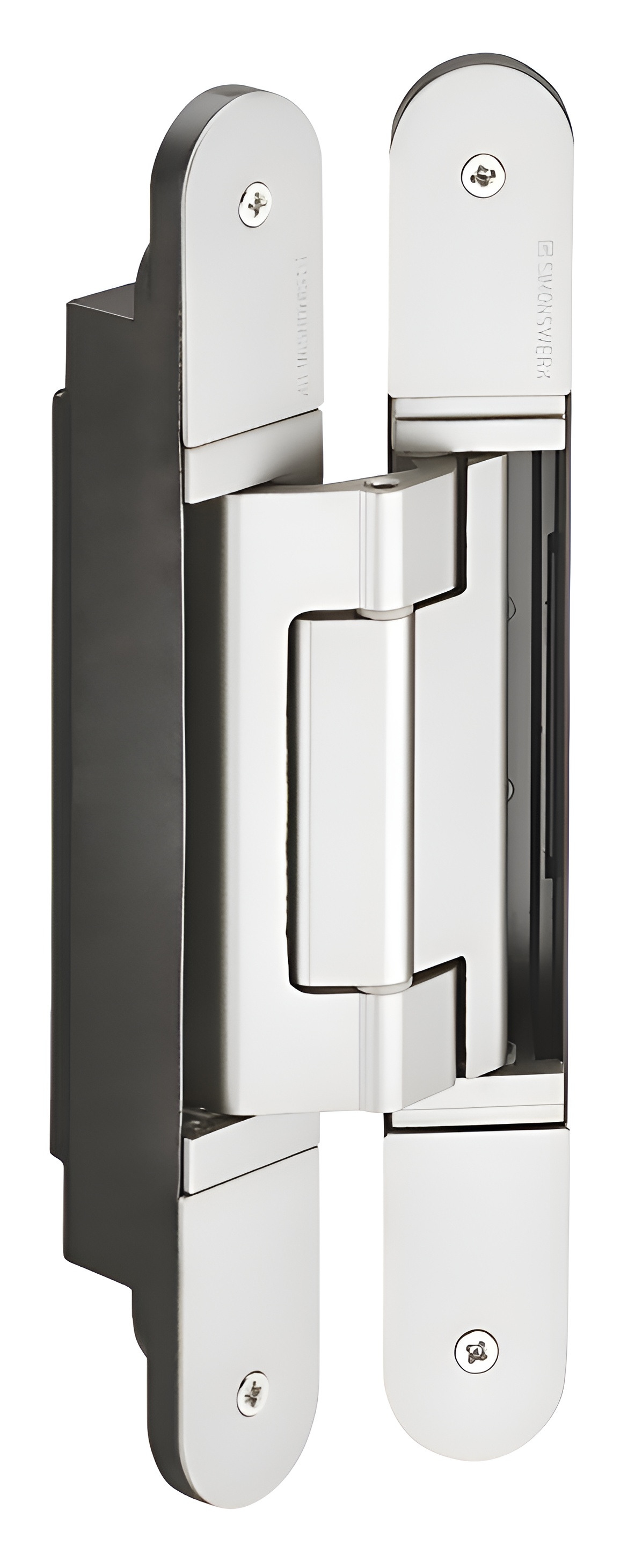

Concealed Hinge, TECTUS TE 640 3D
concealed, 3D adjustable, size 240 mm, Stainless steel look
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush interior doors. UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors
Color/finish: stainless steel effect, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door thickness min.: 1 9/16"
Door weight max.: 440 lbs
Flange height: 240 mm
Flange shape: rounded
Flange width: 32 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|6|1|1|3|1|14
Material: Aluminum, Steel
Max. door weight for 2 hinges: 200.00 kg
Model: 126
Model series: TECTUS TE 640 3D
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
Version: Maintenance-free slide bearings
