Hafele 924.18.921 Concealed Hinge, TECTUS TE 240 3D offers a seamless solution for modern door installations, combining aesthetic appeal with robust functionality. With a size of 155 mm and a sleek satin chrome look, this hinge is designed for flush doors in hollow metal, wood, or aluminum frames, ensuring a polished finish that complements any environment. This hinge features a 3D adjustment capability, allowing precise modifications in height, side, and closing pressure to achieve the perfect fit. It accommodates door thicknesses of at least 25 mm and can support doors weighing up to 132 lbs, making it ideal for a variety of applications. The maintenance-free friction bearings enhance durability and reduce upkeep, ensuring reliable performance over time. The Hafele 924.18.921 is versatile enough for both DIN left and right-hand mounting, with an impressive opening angle of 180 degrees for full access. Constructed from high-quality aluminum and steel, this hinge is certified in compliance with EN 1935:2002 standards, assuring its quality and reliability. With its rounded flange design and thoughtful engineering, this concealed hinge stands out as a top choice for building professionals and discerning homeowners alike.

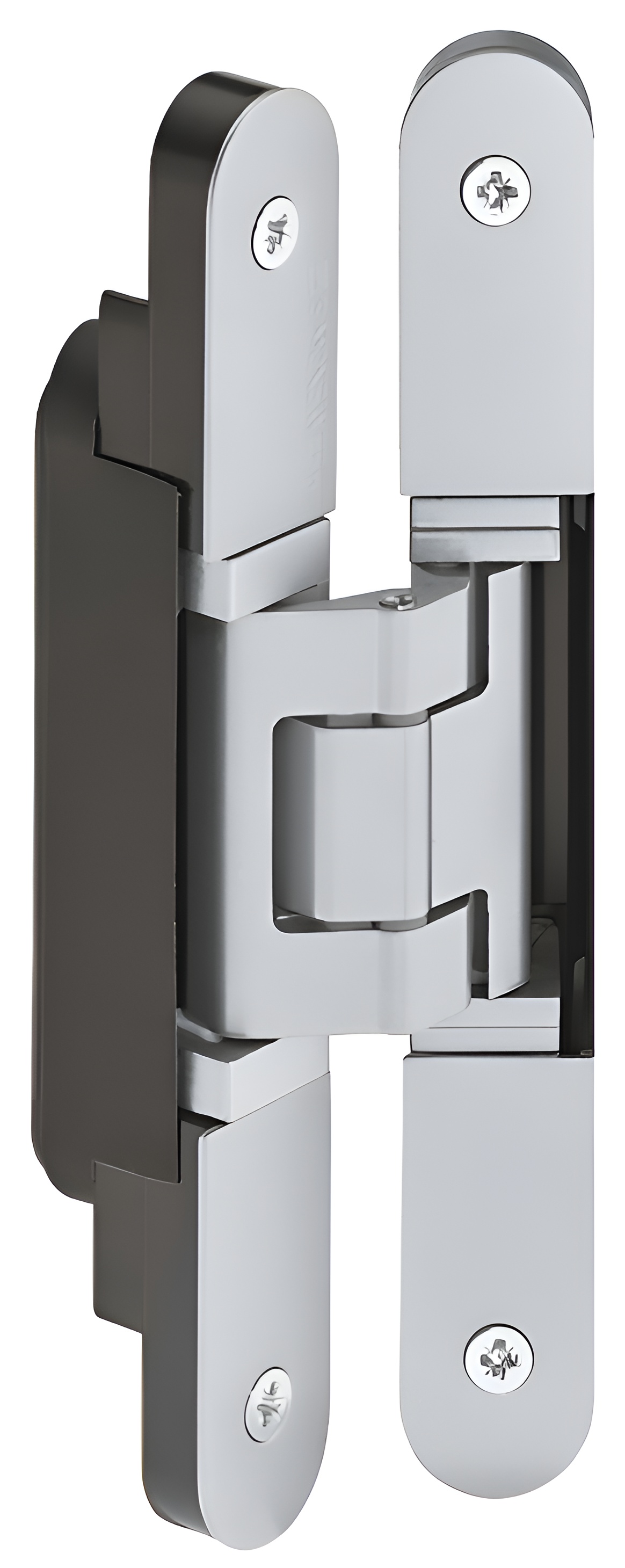

Concealed Hinge, TECTUS TE 240 3D
3D adjustable, size 155 mm, Satin chrome look (F1)
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1.5 mm
Area of application: Used in door frames made out of hollow metal or wood for flush doors
Bearing type: Friction bearing, maintenance-free
Color/finish: Silver colored, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥25 mm
Door thickness min.: 1"
Door weight max.: 132 lbs

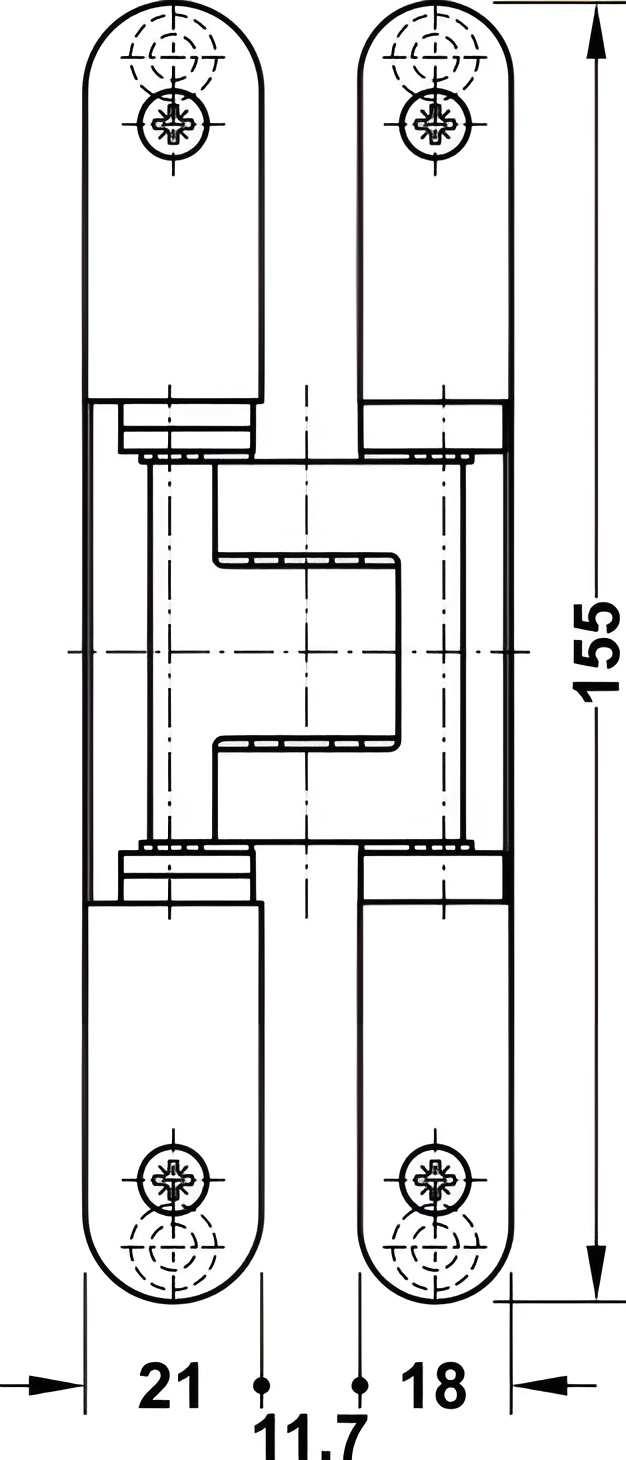

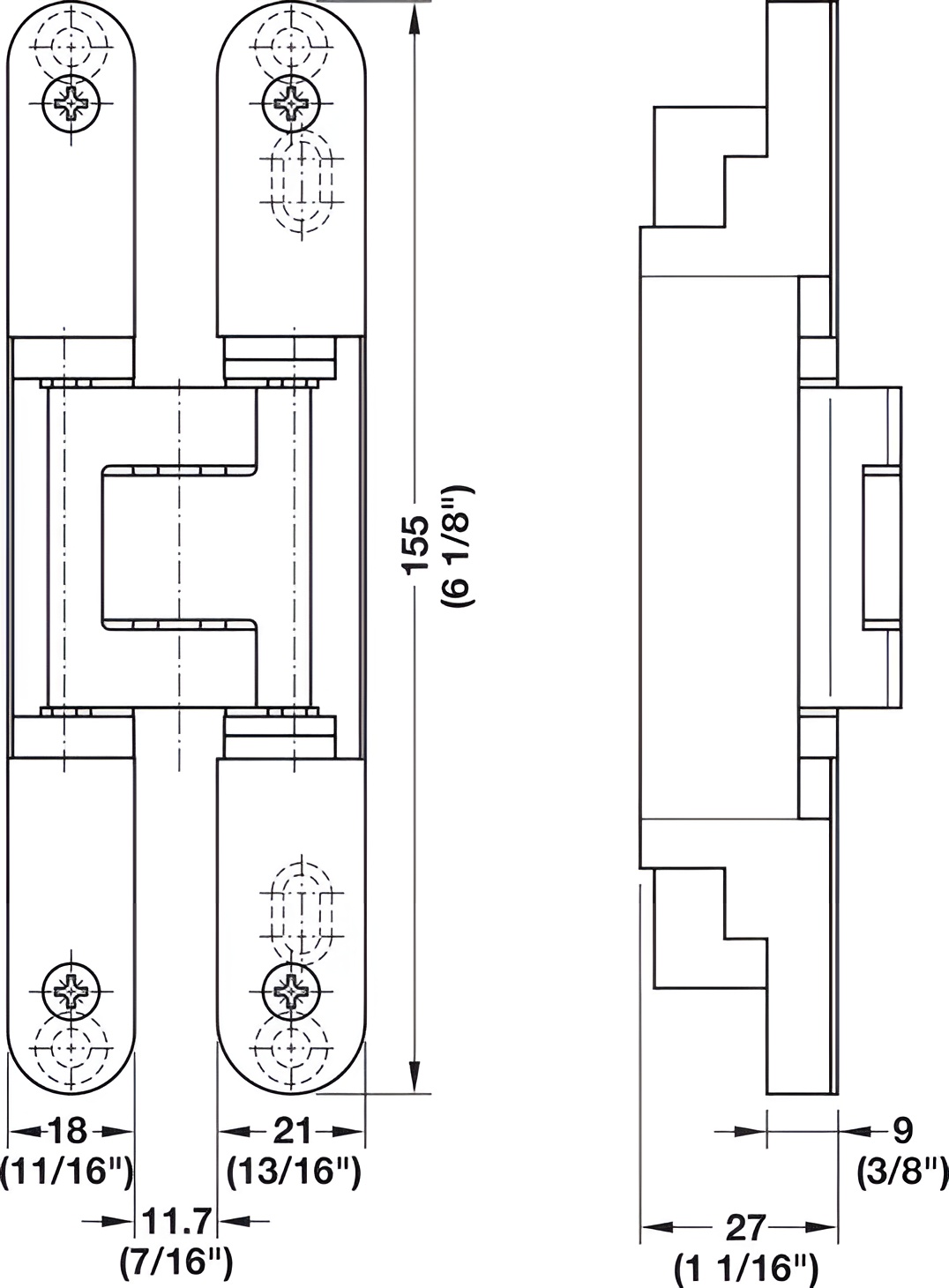

Flange height: 155 mm
Flange shape: rounded
Flange width: 21 mm / 18 mm

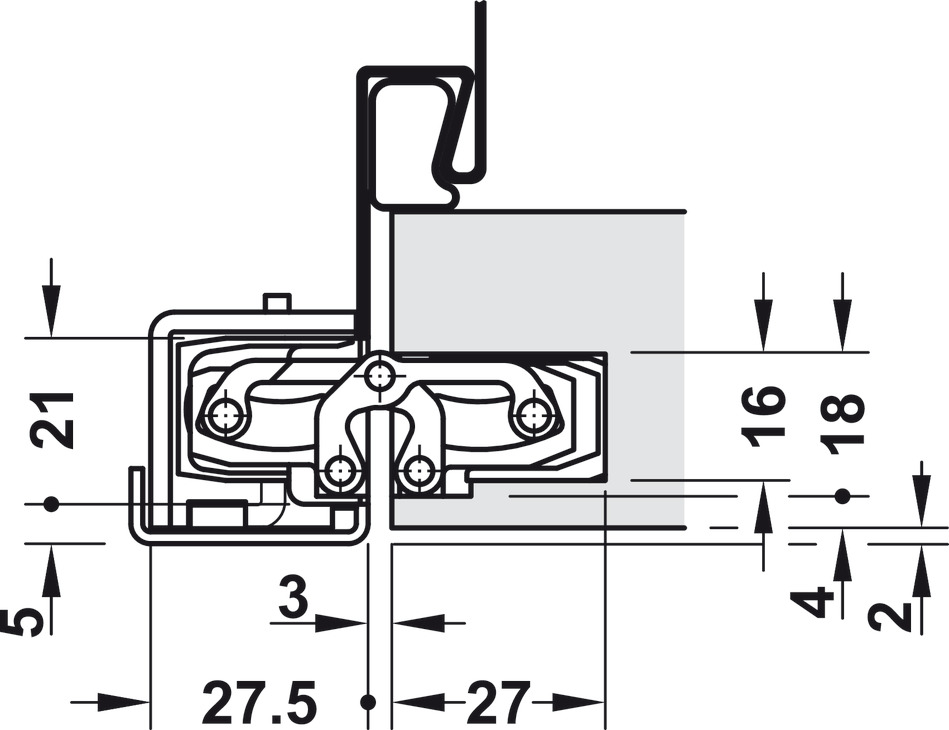

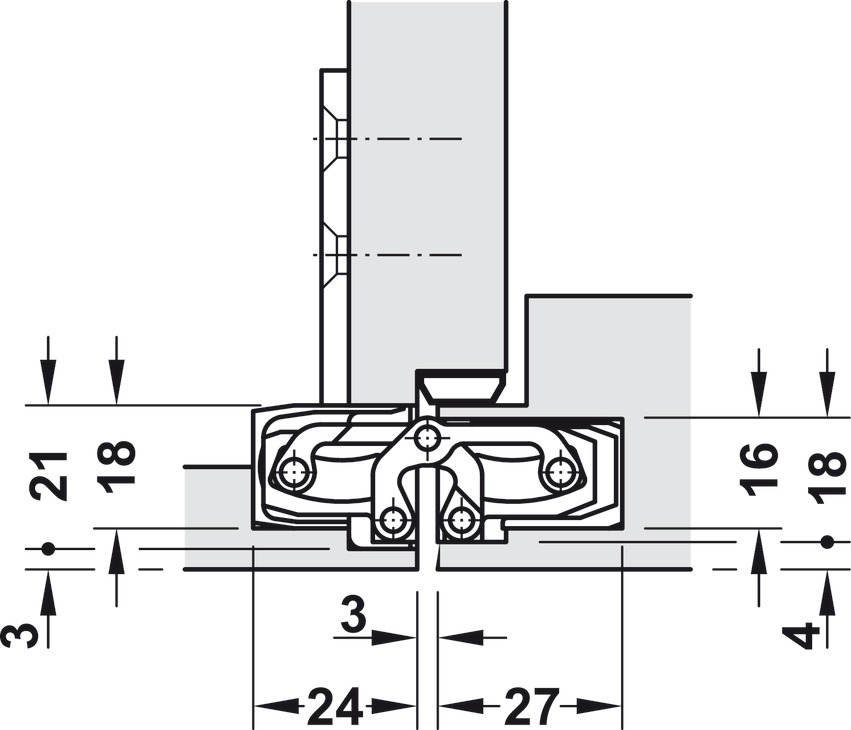

For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 2|7|2|0|1|3|0|7
Material: Aluminum, Steel
Max. door weight for 2 hinges: 60.00 kg
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °

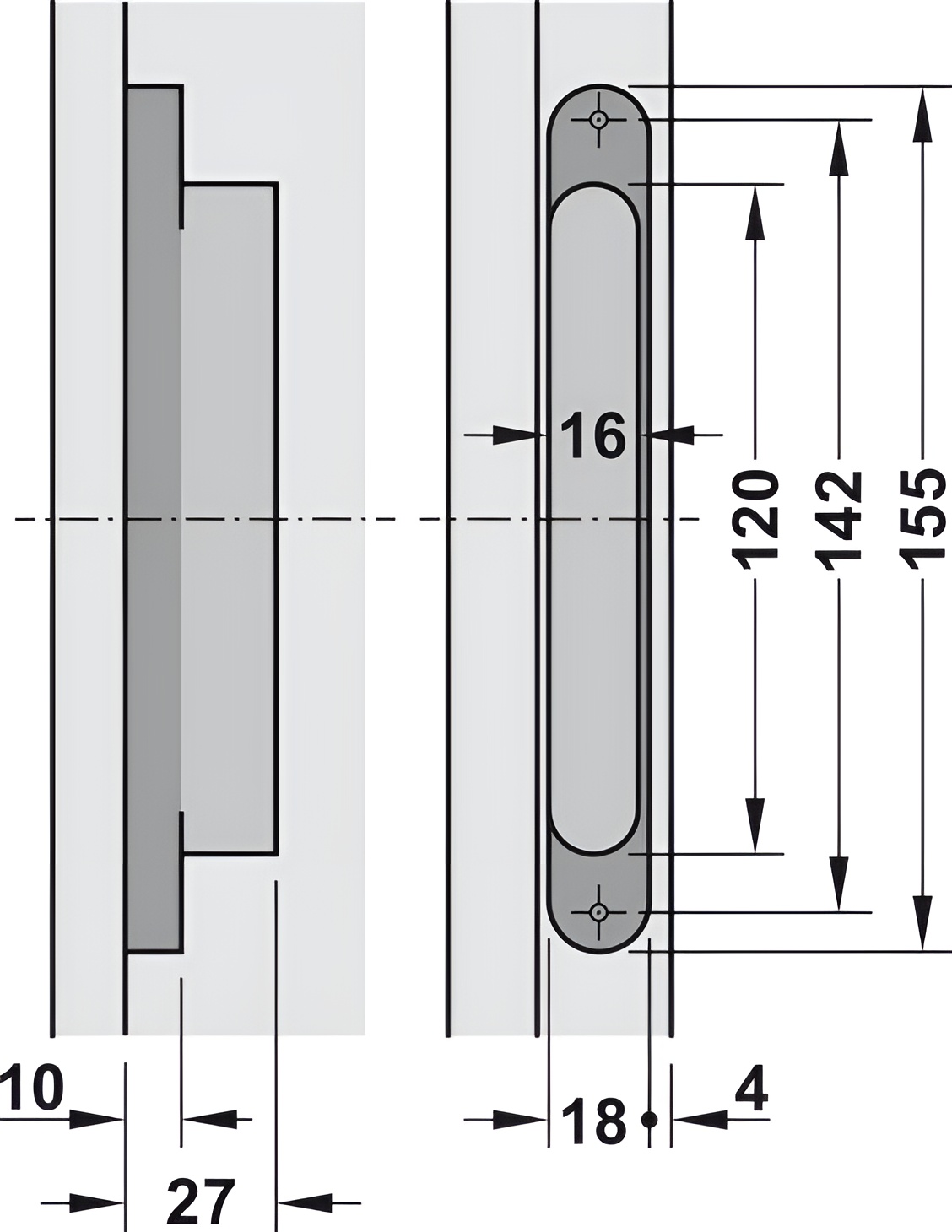

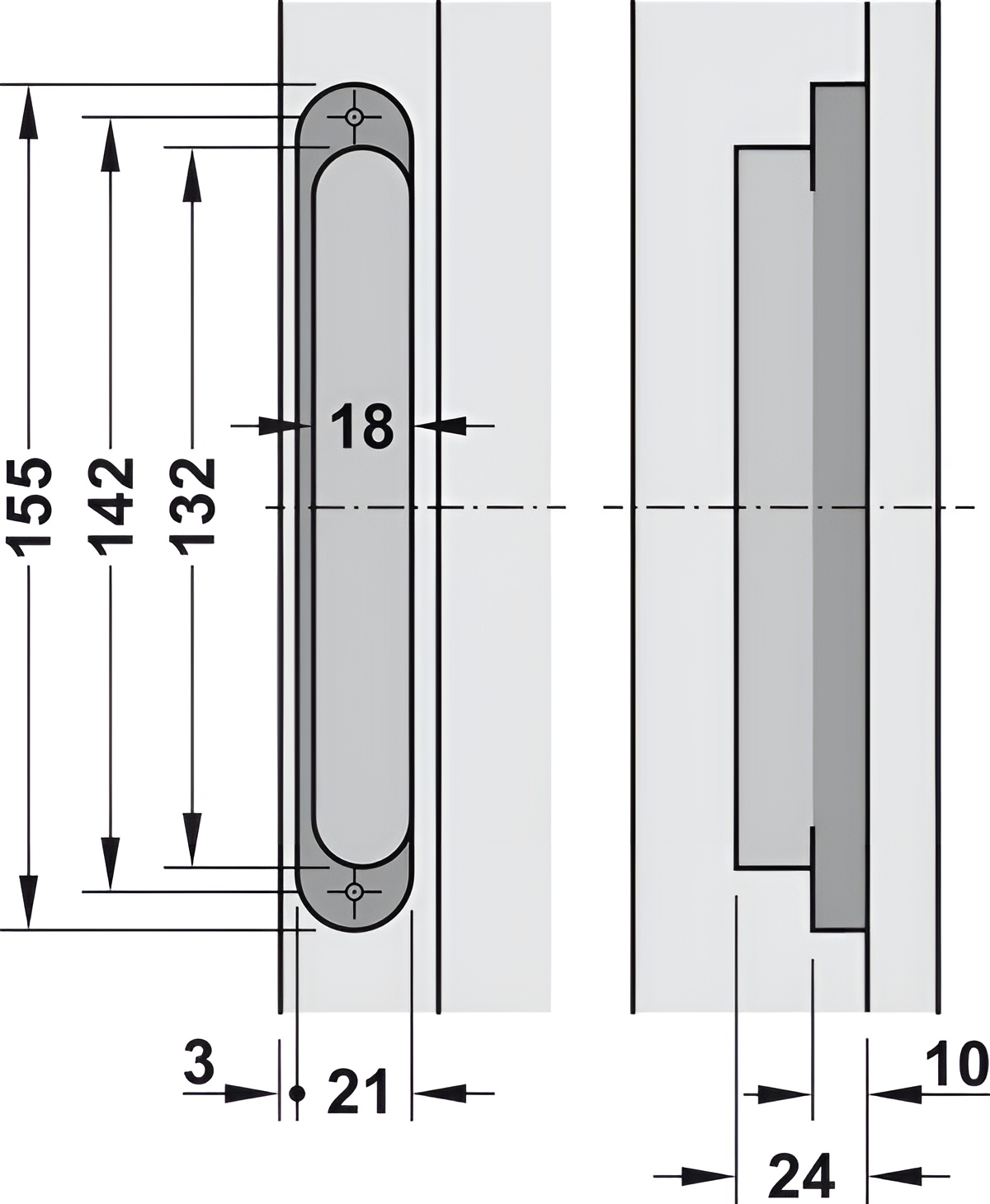

Router bit Ø: 16.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
