Hafele 924.19.010 Concealed Hinge, TECTUS TE 541 3D FVZ offers exceptional versatility and durability for flush interior doors. Designed for use with hollow metal or wooden door frames, this hinge is suitable for both left and right-hand applications. Its sleek stainless steel look enhances aesthetic appeal while ensuring lasting performance. With a flange height of 185 mm and a width of 28 mm, this hinge accommodates doors with a minimum thickness of 40 mm. The innovative 3D adjustment facility allows for precise alignment, with adjustments possible in three dimensions: side (±3 mm), height (–3 to +3 mm), and closing pressure (±1 mm). This ensures a seamless fit and smooth operation, supporting doors weighing up to 100 kg when using two hinges. The Hafele 924.19.010 boasts a generous opening angle of 180 degrees, making it ideal for spaces where full access is essential. Certified in compliance with EN 1935:2002 standards, this product guarantees quality and reliability. For installation, a router guide of Ø 30 mm is recommended, simplifying the fitting process. Elevate your door hardware solutions with this advanced concealed hinge from Hafele.
Concealed Hinge, TECTUS TE 541 3D FVZ
concealed, 3D adjustable, size 185 mm, Stainless steel look

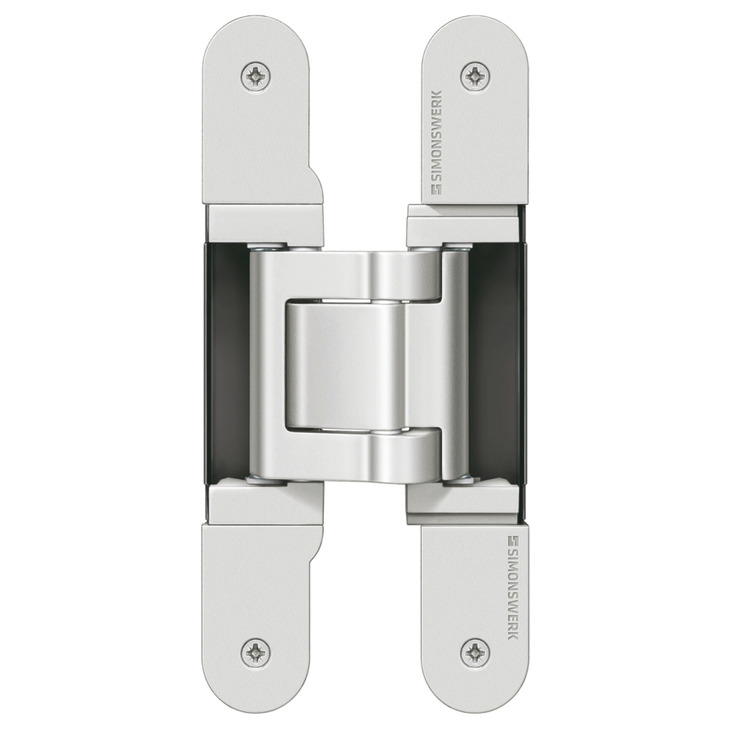

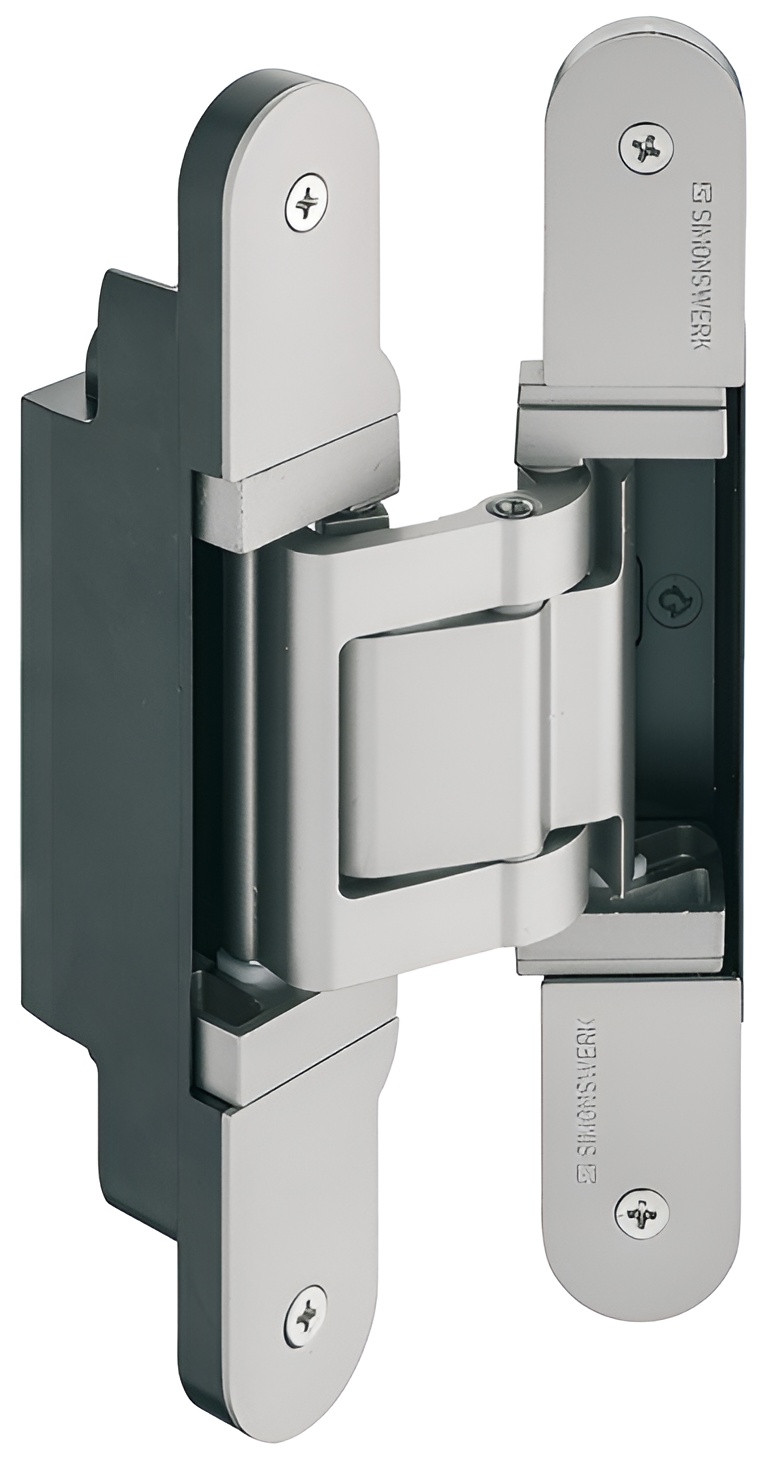

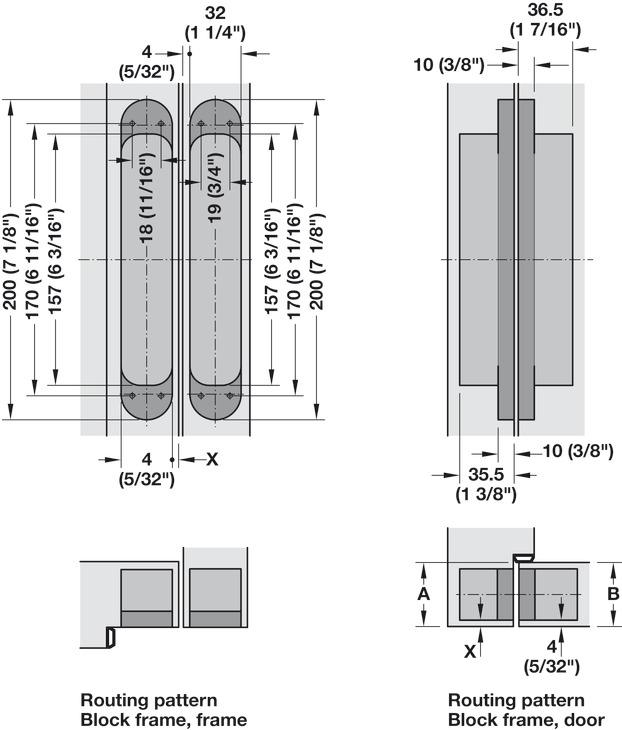

Router guide Ø: 30 mm (1 3/16")
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm

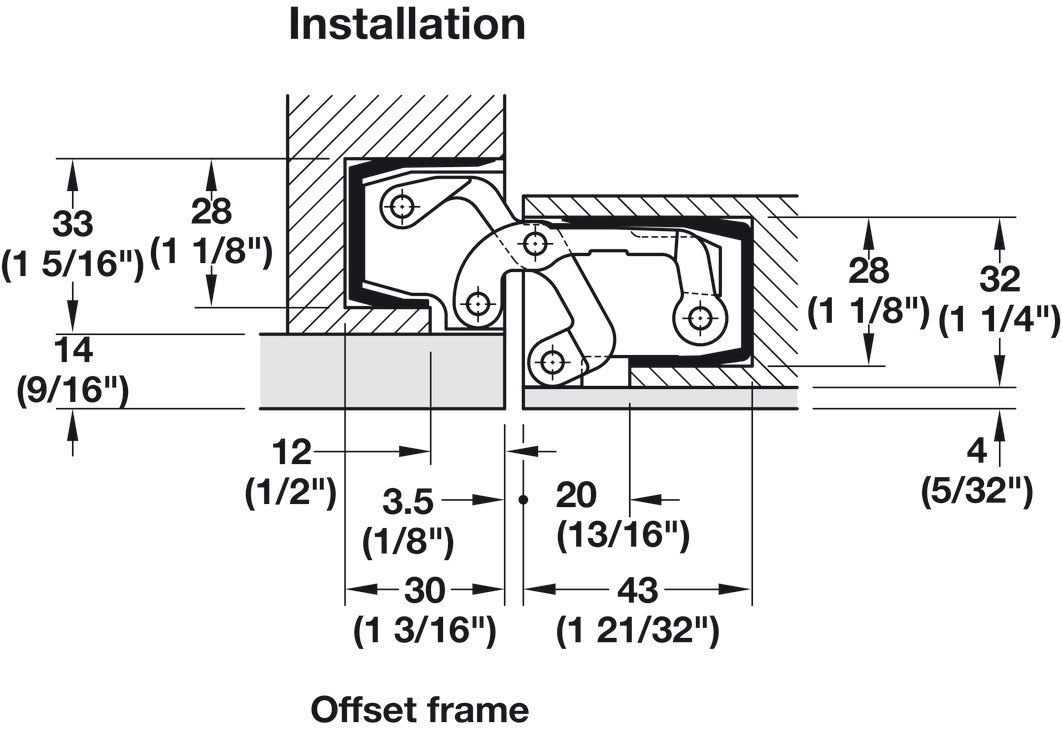

Area of application: For wooden, steel or aluminium frames for flush doors with recessed frame facing
Color/finish: Stainless steel colored, stainless steel effect, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door thickness min.: 1 9/16"

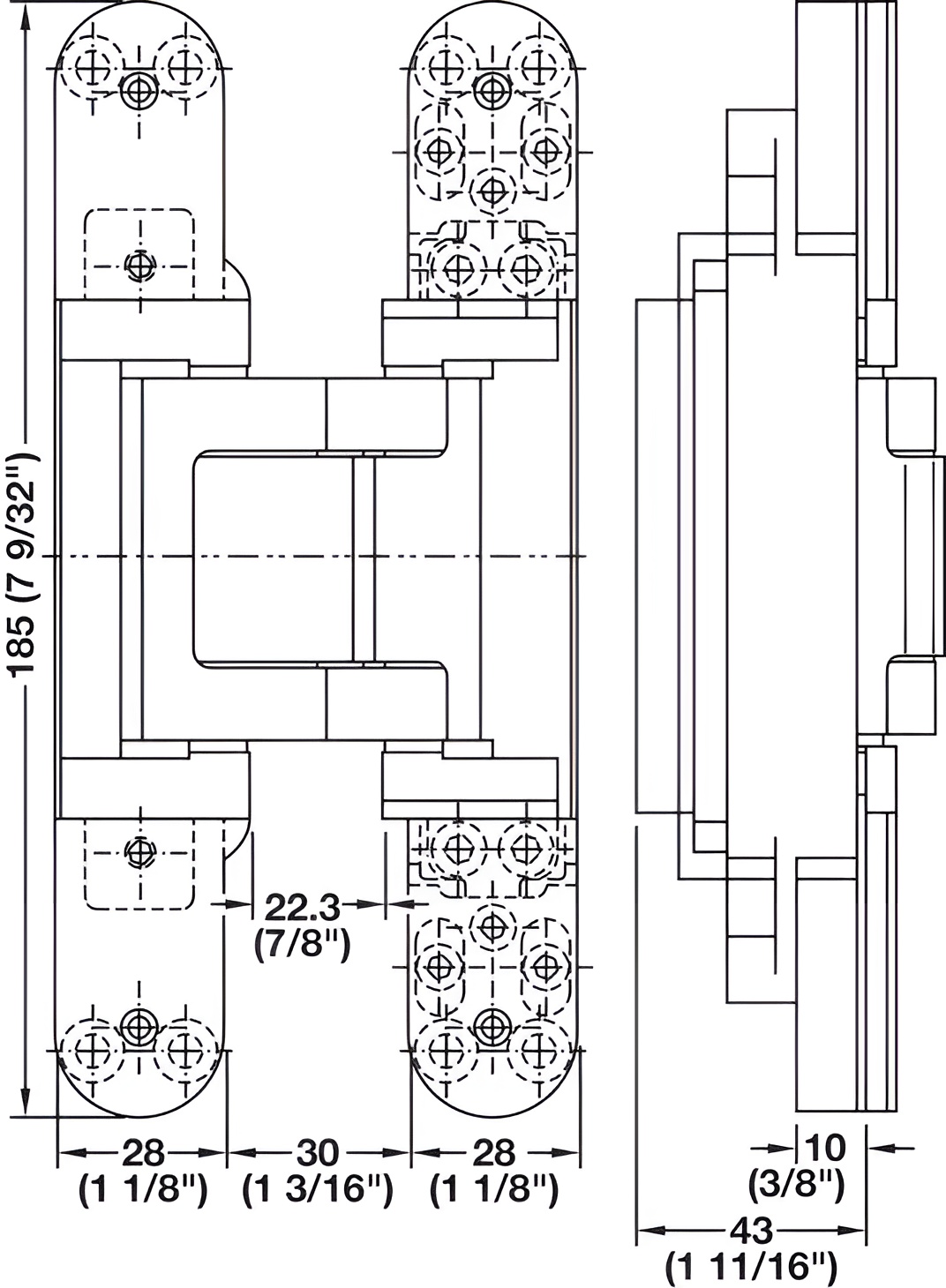

Flange height: 185 mm
Flange shape: rounded
Flange width: 28 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|5|1|1|3|1|12
Material: Aluminum, Steel
Max. door weight for 2 hinges: 100.00 kg
Model: 126
Model series: TECTUS
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
