Hafele 924.19.337 Concealed Hinge, TECTUS TE 540 3D A8 offers a sleek and sophisticated solution for flush doors, combining style and functionality. Designed for door frames made from hollow metal, wood, or aluminum, this hinge is suitable for applications requiring UL-listed fire door compliance, ensuring durability and safety in commercial and residential settings. With a matte deep black finish (RAL 9005) and a rounded flange shape, this hinge not only complements modern aesthetics but also provides robust support for doors weighing up to 220 lbs. Its adjustable facilities, including 3D continuous adjustment for height, side, and closing pressure, allow for precise alignment and easy installation, accommodating door thicknesses from 1 9/16" to over 40 mm. The hinge supports a maximum door size of 4' x 8' for single doors and 8' x 8' for pairs, providing flexibility for various architectural designs. Maintenance-free slide bearings enhance longevity, while the certified compliance with EN 1935:2002 guarantees quality and reliability. Furthermore, the hinge is suitable for both DIN left and right-hand applications, making it a versatile choice for any project. Upgrade your door hardware with the Hafele 924.19.337 for a seamless blend of innovation and elegance.

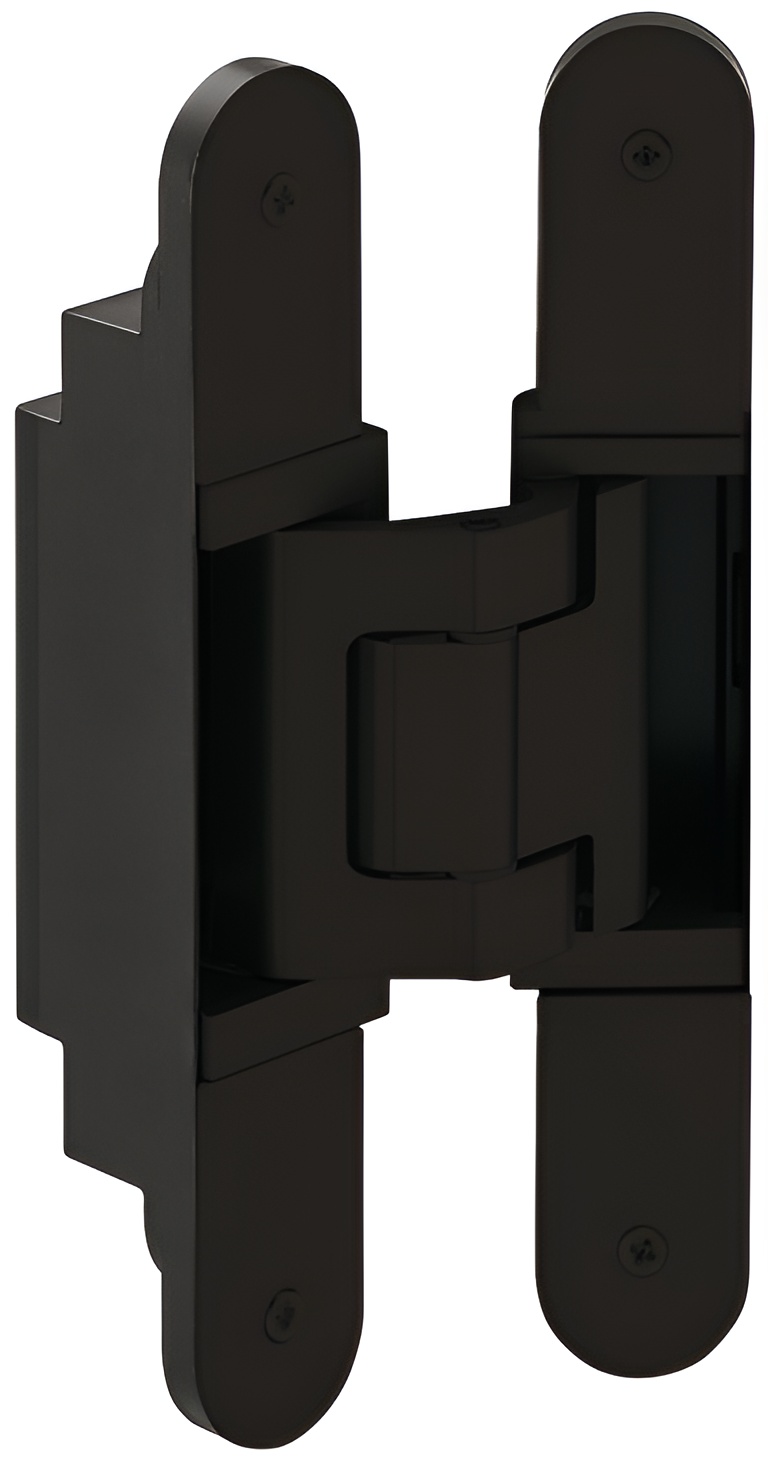

Concealed Hinge, TECTUS TE 540 3D A8
3D adjustable, size 200 mm, Matte deep black (RAL9005)
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16") thick surface applied panel UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors) Left and right applications
Color/finish: Black, RAL 9005, matt, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door thickness min.: 1 9/16"
Door weight max.: 220 lbs
Flange height: 200 mm
Flange shape: rounded
Flange width: 32 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|5|1|1|3|1|12
Material: Aluminum, Steel
Max. door weight for 2 hinges: 100.00 kg
Model: 107
Model series: TECTUS TE 540 3D A8
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
Version: Maintenance-free slide bearings
