Hafele 924.19.537 Concealed Hinge, TECTUS TE 640 3D A8 offers a seamless integration of functionality and aesthetics, perfect for modern architectural applications. Designed for flush doors, this concealed hinge features a sleek matt deep black finish (RAL 9005) that complements various door styles. Its robust construction allows for door thicknesses of at least 40 mm and supports a maximum weight of 352 lbs, making it suitable for both single and paired door configurations. The hinge provides 3D adjustability with continuous adjustments available for height, side, and closing pressure, ensuring precise alignment and smooth operation. With an impressive opening angle of 180 degrees, it enhances accessibility while maintaining a clean, unobtrusive appearance. The hinge is compatible with steel, wooden, and aluminum frames, making it versatile for different installation environments. Constructed from aluminum and steel, the Hafele 924.19.537 is built to last and is certified in compliance with EN 1935:2002 standards. Its rounded flange design and maintenance-free slide bearings ensure long-lasting performance without the need for regular upkeep. Ideal for discerning builders and homeowners, this hinge is a reliable choice for high-quality door installations.

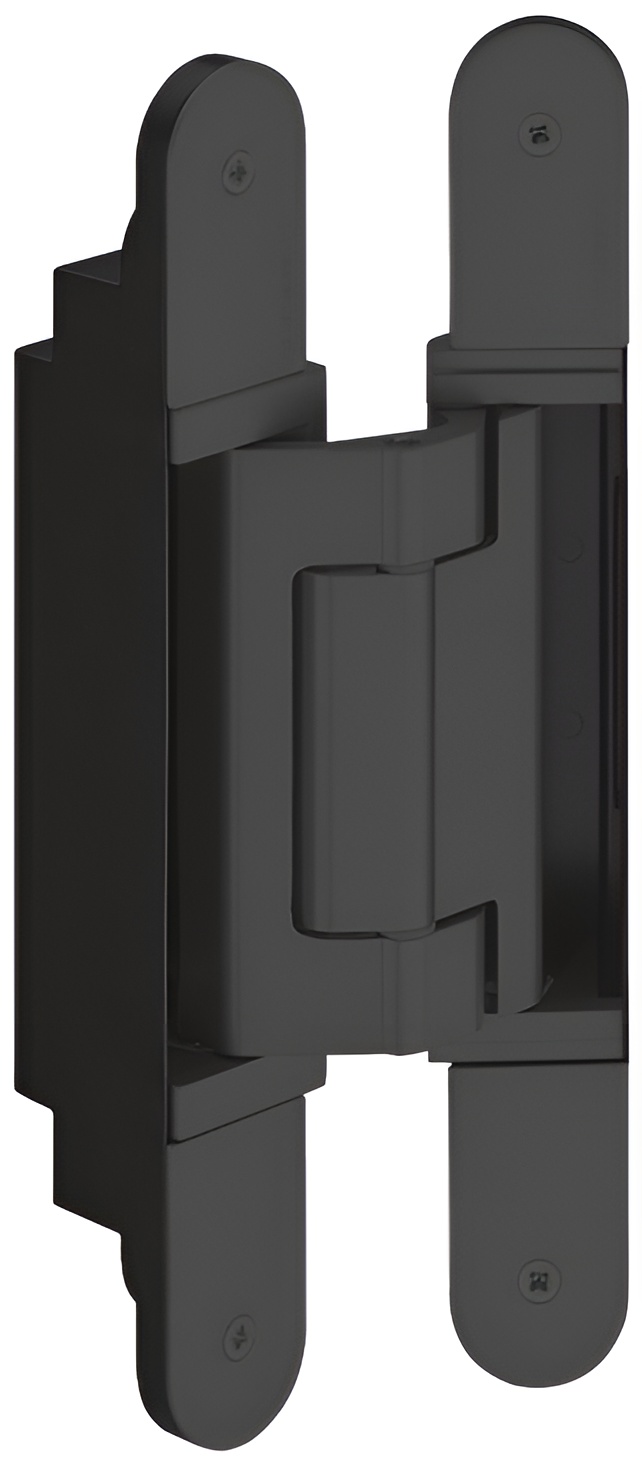

Concealed Hinge, TECTUS TE 640 3D A8
concealed, 3D adjustable, size 240 mm, matte deep black (RAL 9005)
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16") thick surface applied panel Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors
Color/finish: Black, RAL 9005, matt, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door thickness min.: 1 9/16"
Door weight max.: 352 lbs
Flange height: 240 mm
Flange shape: rounded
Flange width: 32 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|7|1|1|0|1|14
Material: Aluminum, Steel
Max. door weight for 2 hinges: 160.00 kg
Model: 107
Model series: TECTUS TE 640 3D A8
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
Version: Maintenance-free slide bearings
