Hafele 924.19.580 Concealed Hinge, TECTUS TE 640 3D A8, offers an exceptional solution for seamless door applications. Designed for use in door frames crafted from hollow metal, wood, or aluminum, this hinge accommodates flush doors with an additional surface panel thickness of up to 8 mm. With a maximum door size of 4 x 8 feet for single doors and 8 x 8 feet for pairs, it is engineered to support heavy weights, handling up to 352 lbs per door. This hinge features a polished brass finish that enhances aesthetic appeal while ensuring durability. The 3D adjustment capability allows for easy customization, including side adjustments of 3 mm and height adjustments ranging from -3 to +3 mm, ensuring precise alignment. The maintenance-free slide bearings further enhance performance, making it an ideal choice for high-traffic environments. Certified in compliance with EN 1935:2002, the Hafele TECTUS hinge is designed for both DIN left and right-hand mounting, providing versatility in application. With an opening angle of 180 degrees and a flange height of 240 mm, this hinge combines functionality with elegance, making it a preferred choice for architects and builders seeking reliable hardware solutions.

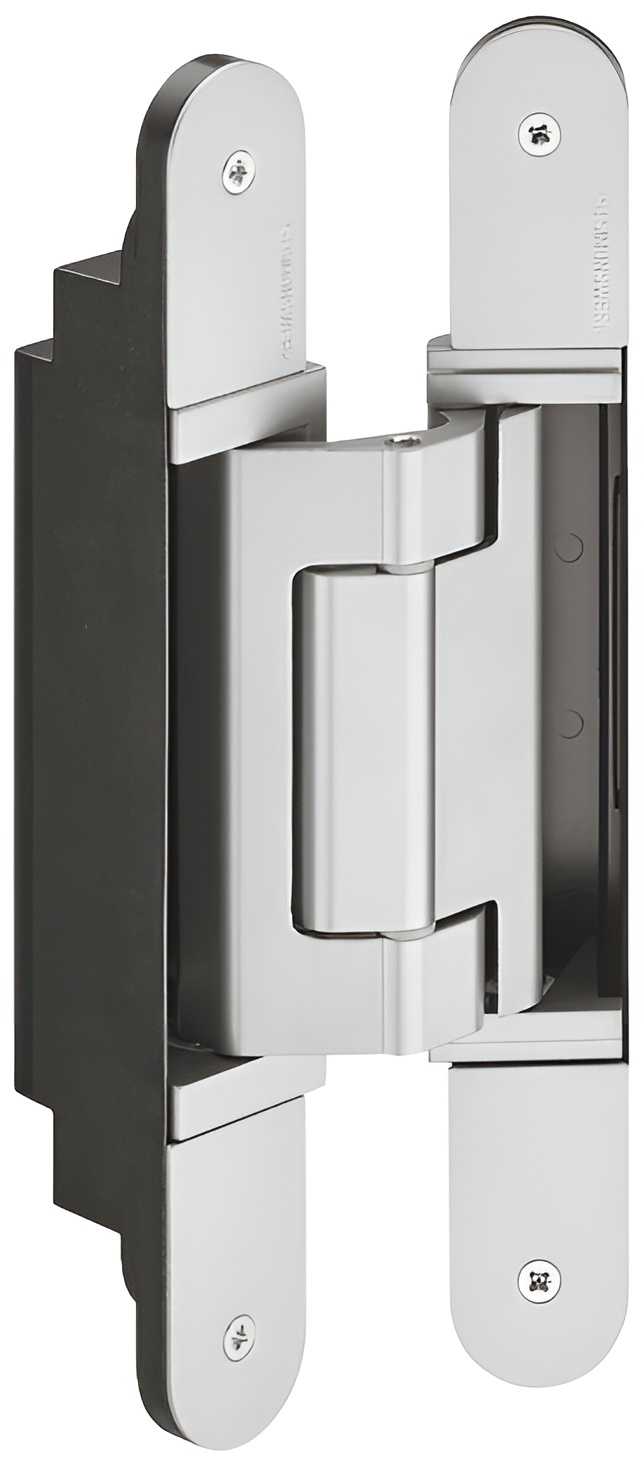

Concealed Hinge, TECTUS TE 640 3D A8
concealed, 3D adjustable, size 240 mm, Polished brass
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16") thick surface applied panel Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors
Color/finish: Brass colored, polished, Powder coated
Direction: For DIN left and DIN right hand use
Door thickness: ≥40 mm
Door thickness min.: 1 9/16"
Door weight max.: 352 lbs
Flange height: 240 mm
Flange shape: rounded
Flange width: 32 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|7|1|1|0|1|14
Material: Aluminum, Steel
Max. door weight for 2 hinges: 160.00 kg
Model: 030
Model series: TECTUS TE 640 3D A8
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
Version: Maintenance-free slide bearings
