Hafele 927.91.344 Door Hinge, Atomika offers exceptional versatility and performance for flush interior wood doors. With a robust size of 120 mm and a sleek matt chrome plated finish, this hinge seamlessly integrates into any modern design. Its 3D adjustability allows for continuous adjustments across side, height, and closing pressure, ensuring a perfect fit every time. Engineered for doors with a thickness between 38 mm and 45 mm, this hinge supports doors weighing up to 132 lbs when using two hinges, making it ideal for heavier applications. The maximum door height of 2,100 mm and width of 900 mm (up to 35 7/16 inches) provide ample versatility for various door sizes. Constructed from durable steel, the Hafele 927.91.344 ensures long-lasting reliability. The hinge boasts a full opening angle of 180 degrees, allowing for optimal door operation. Included with your purchase are the necessary fixing materials and a hex key for adjustments, streamlining installation. ANSI/UL 10C certification guarantees that this hinge meets high safety standards. Choose Hafele’s Atomika hinge to enhance your project with quality, functionality, and a stylish finish. Other finishes are available upon request, catering to diverse aesthetic preferences.

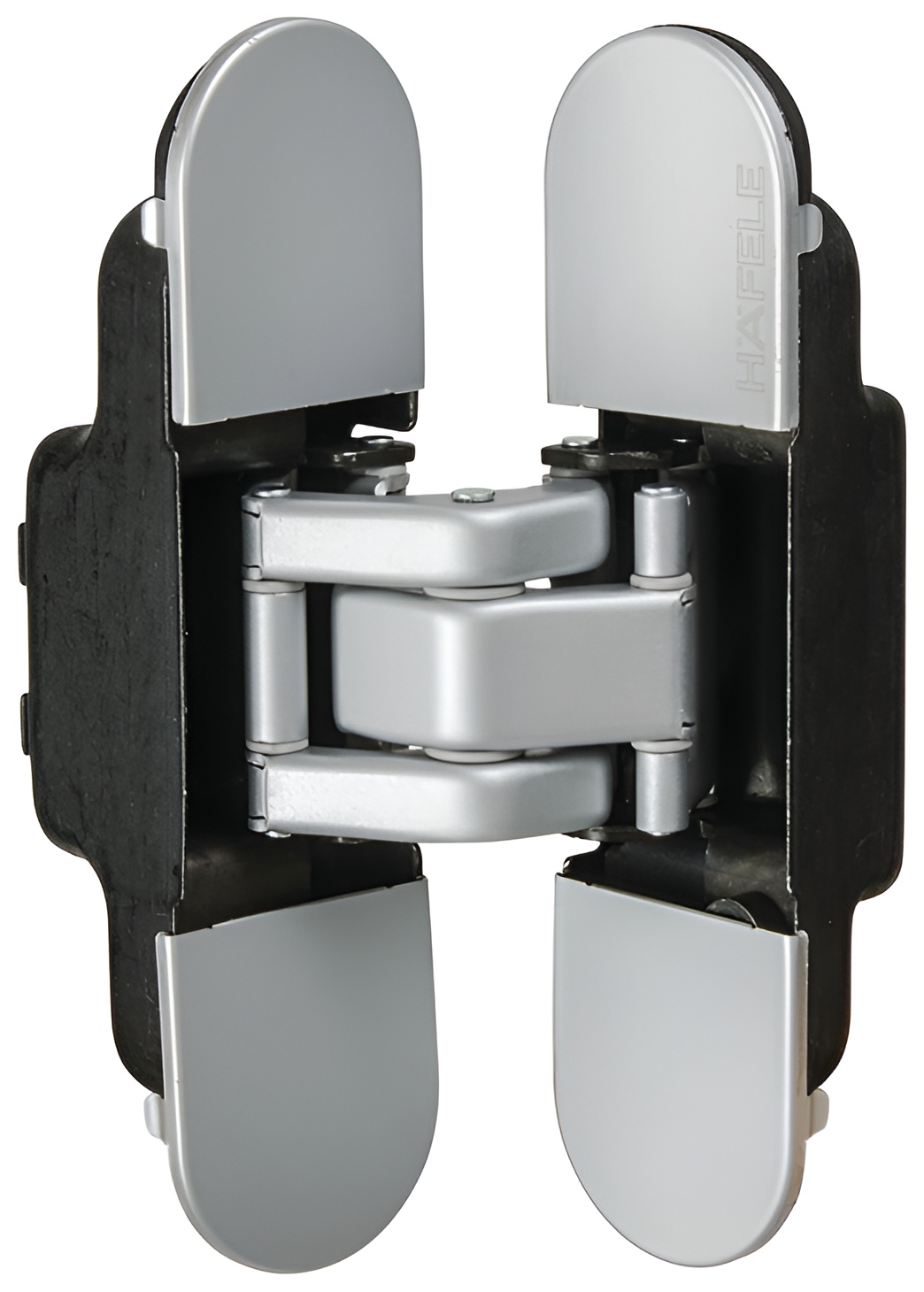

Door Hinge, Atomika

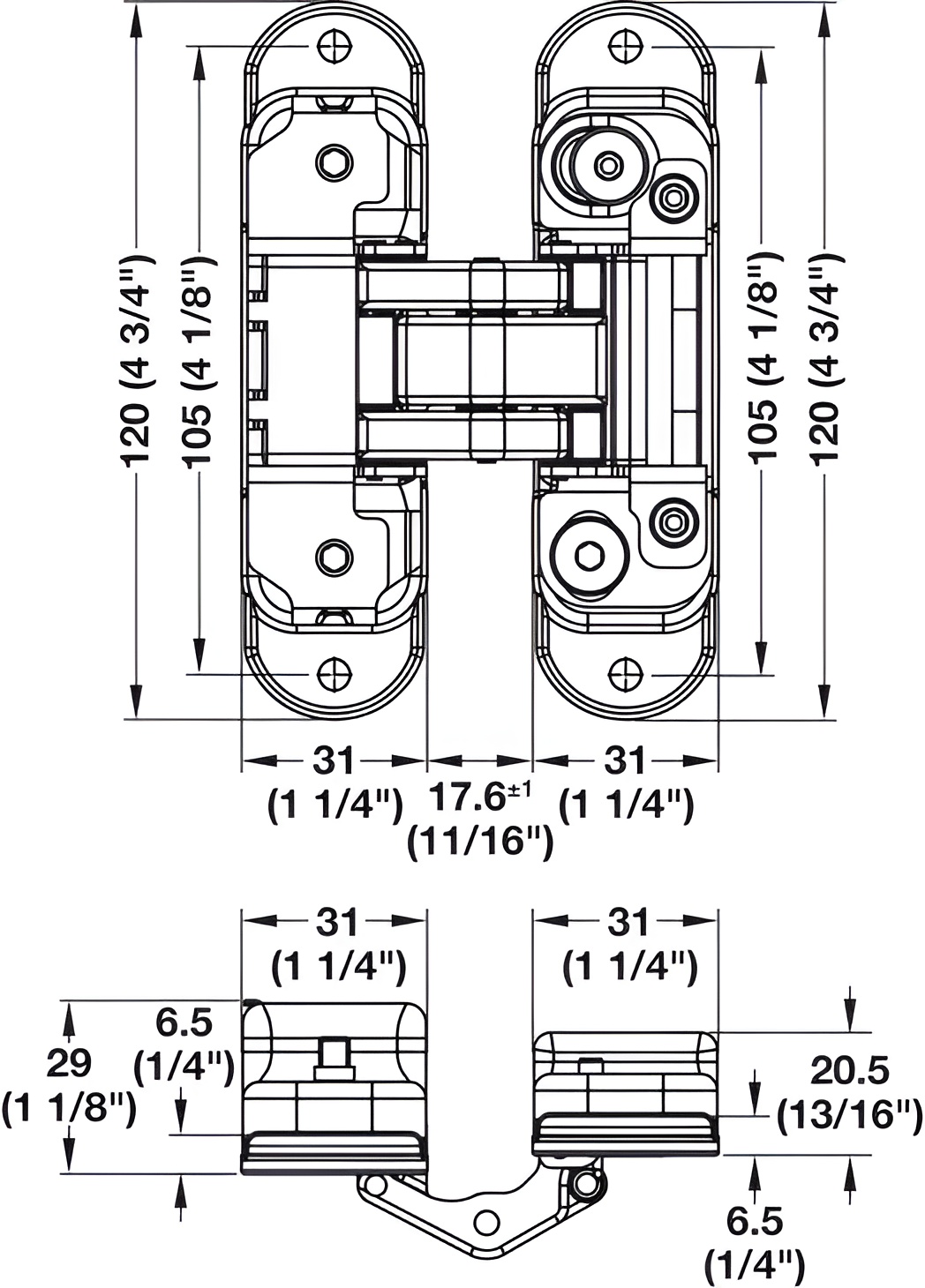

3D adjustable, size 120 mm, Satin chrome
Adjustment facility: 3DContinuous, Side: 1 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: For flush interior wood doors - 3D Adjustable
Door height max.: 2,100.00 mm
Door thickness: 38 – 45 mm
Door weight max.: 132 lbs with 2 door hinges
Door width max.: 900.00 mm
For door width (inches): ≤ 35 7/16"
Material: Steel
Max. door weight for 2 hinges: 60.00 kg
Model: H12
Model series: H12
Opening angle: 180.00 °
Order reference: Fixing material supplied. Hex key for adjustment supplied. Other finishes available on request.
