Hafele 927.91.754 Door Hinge, Startec H7, is a concealed hinge designed for flush interior doors, accommodating weights of up to 70 kg when using three hinges. Crafted with precision, this hinge features a sleek satin chrome finish that enhances the aesthetic of any space while ensuring durability. With a size of 111.5 mm, the hinge offers 3D adjustability, allowing for continuous adjustments in side movement (3 mm), height (-3 to +3 mm), and closing pressure (±1 mm). This versatility ensures a perfect fit and smooth operation for wooden door leaves with a minimum thickness of 40 mm, making it an ideal choice for various interior applications. The hinge supports door heights up to 2,100 mm and requires the installation of four hinges for doors exceeding 2,400 mm in height. An impressive opening angle of 180 degrees offers maximum accessibility without compromising on style. It is designed to accommodate different recess distances when using hinge pockets for lining frames, providing flexibility in installation. Whether for residential or commercial projects, the Hafele 927.91.754 Door Hinge combines functionality with elegance, making it an essential component in modern door hardware solutions.

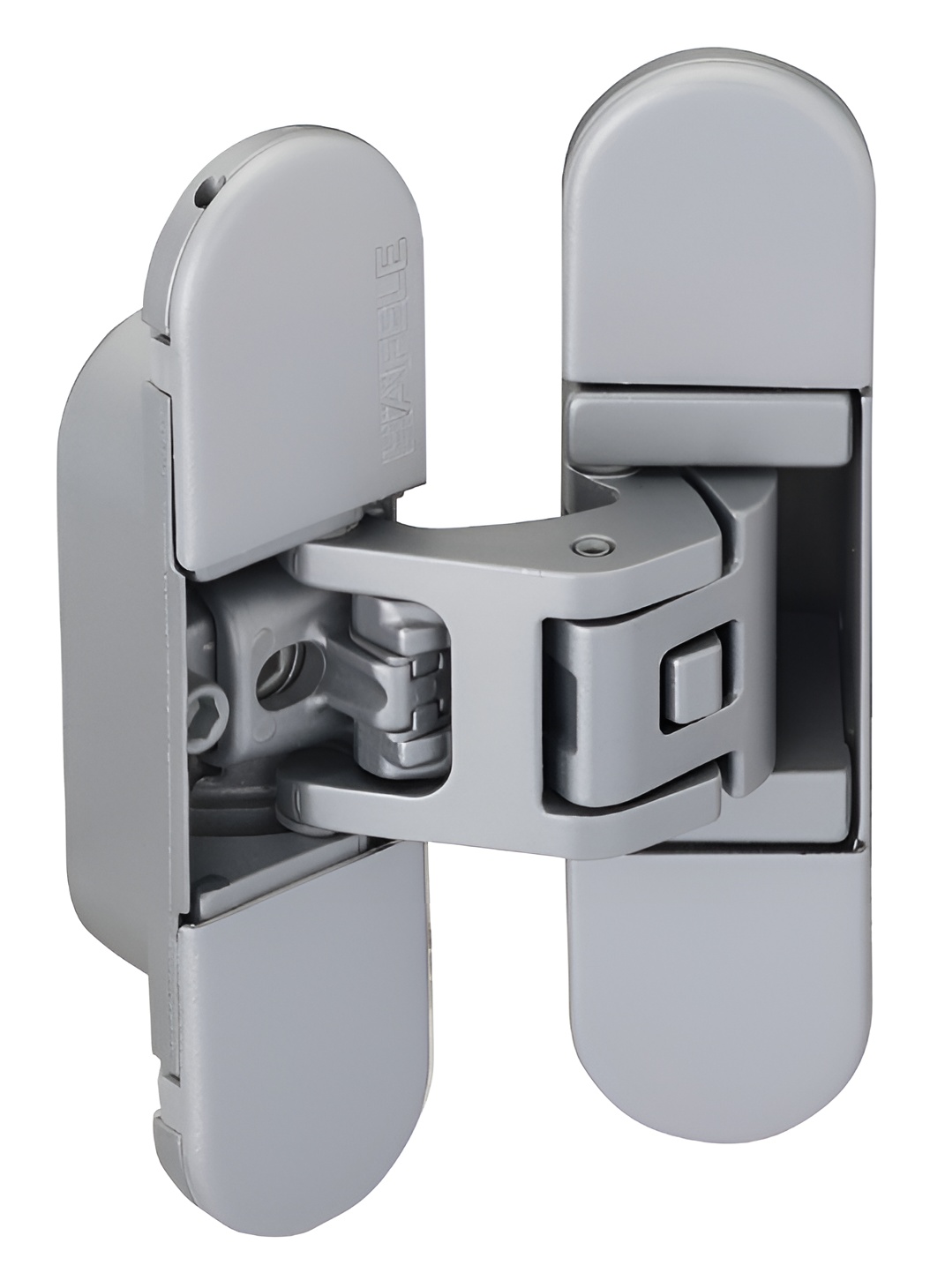

Door hinge, Startec H7, concealed for flush interior doors up to 50/70 kg

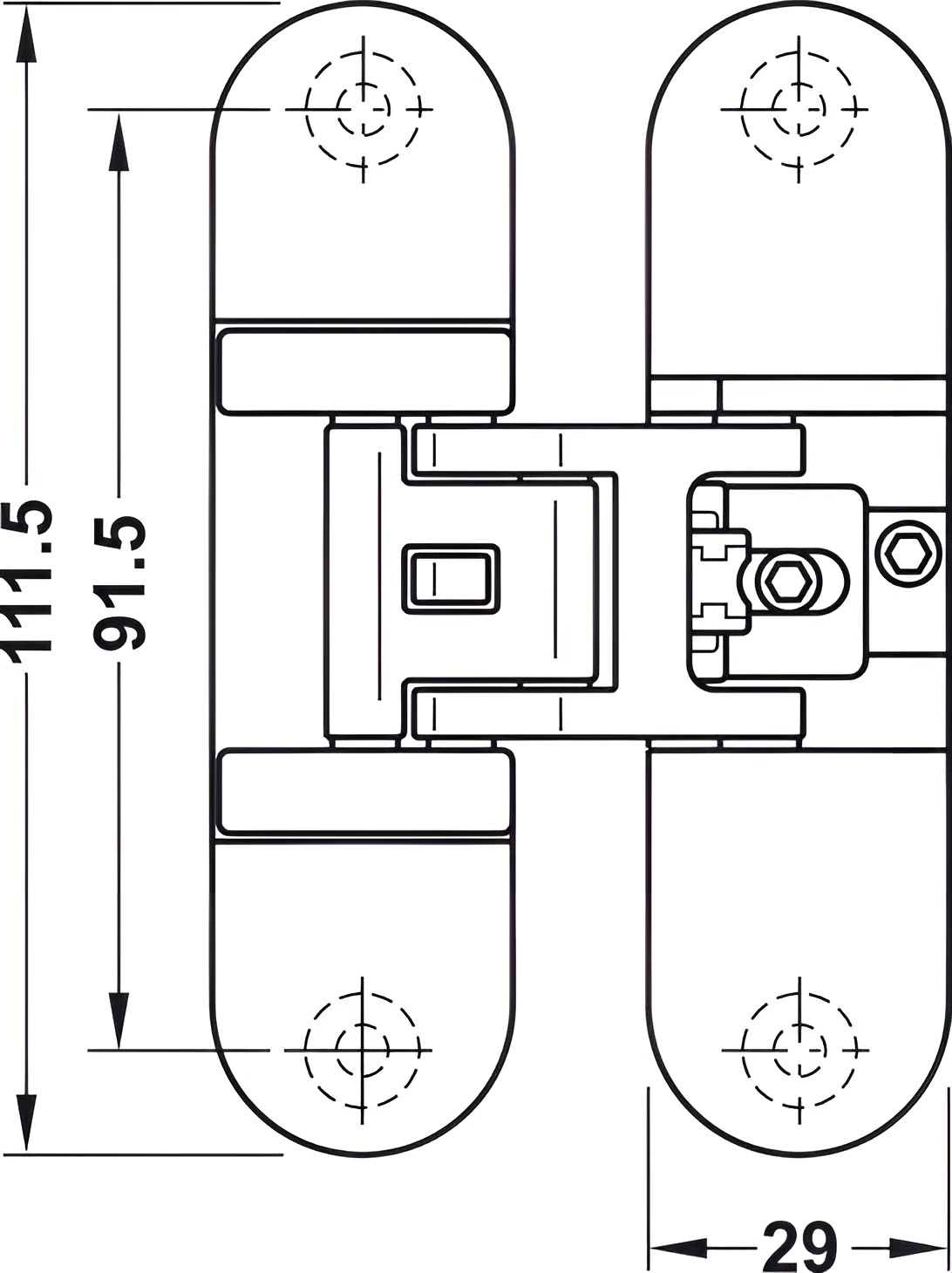

3D adjustable, size 111.5 mm, Satin chrome
Different recess distances when using hinge pockets for lining frames. 4 door hinges must be used from door height of 2400 mm.
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Color/finish: matte, chrome plated
Door height max.: 2,100.00 mm

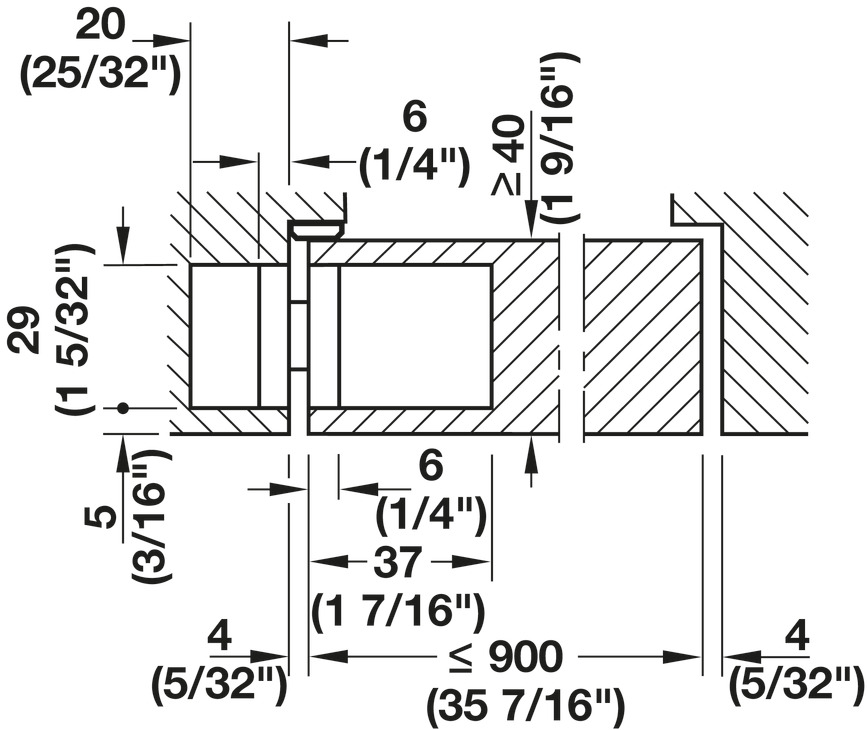

Door thickness: ≥40 mm
Door width max.: 900.00 mm

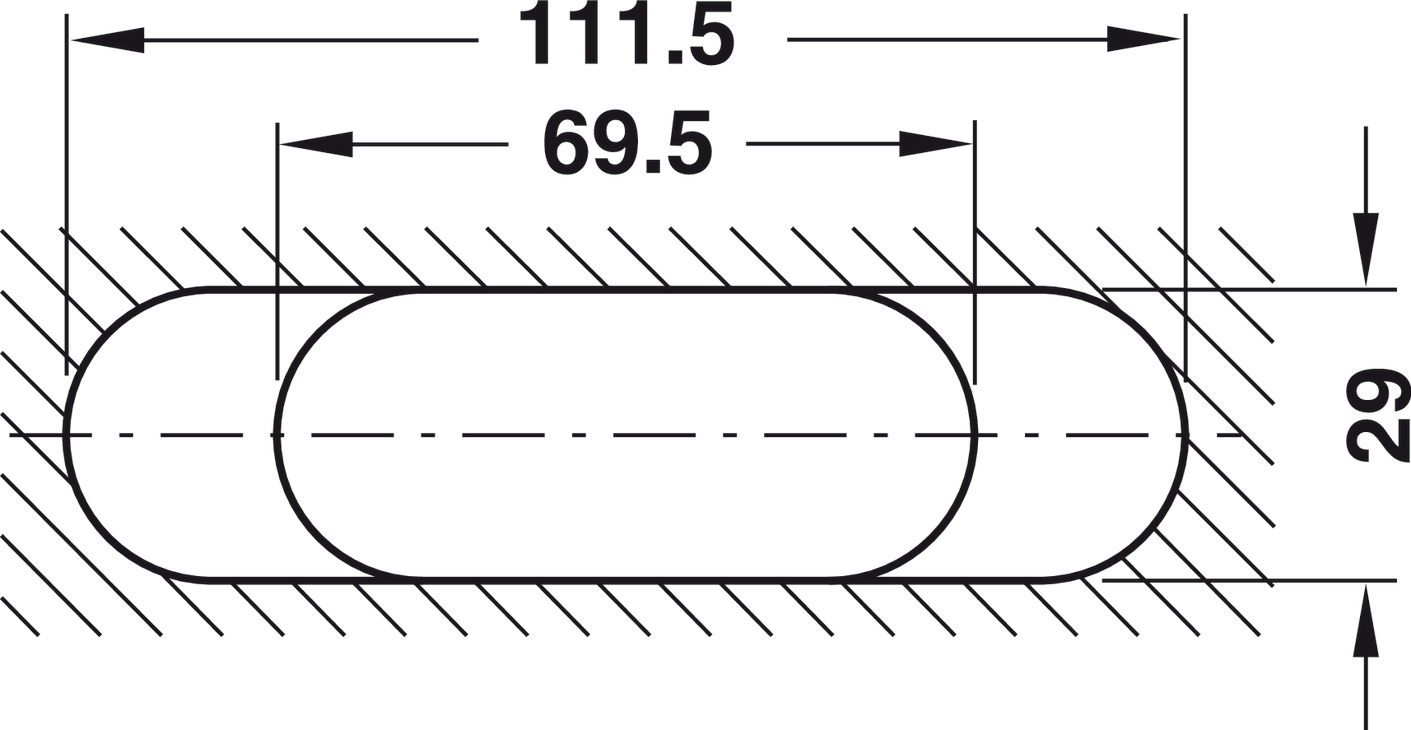

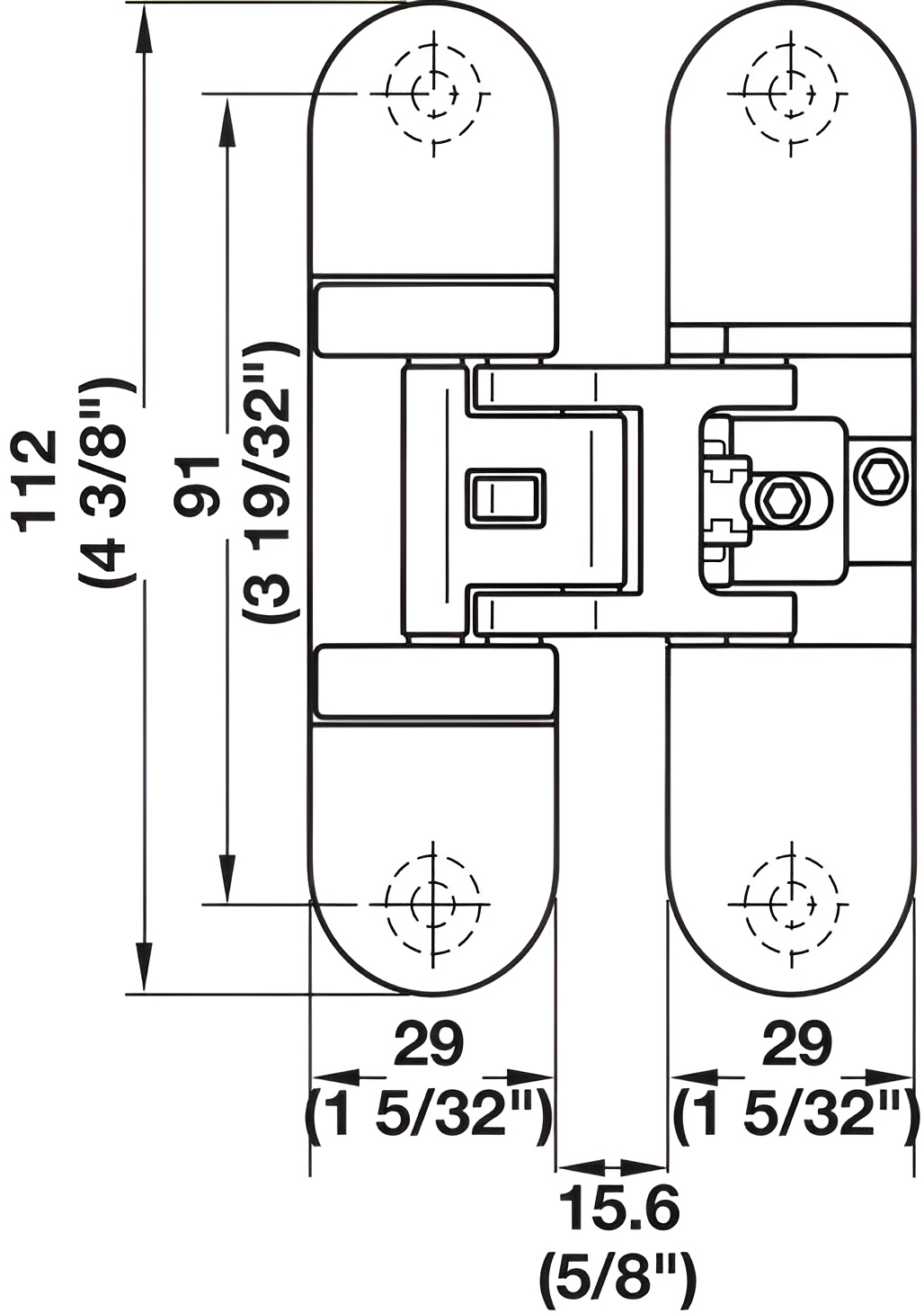

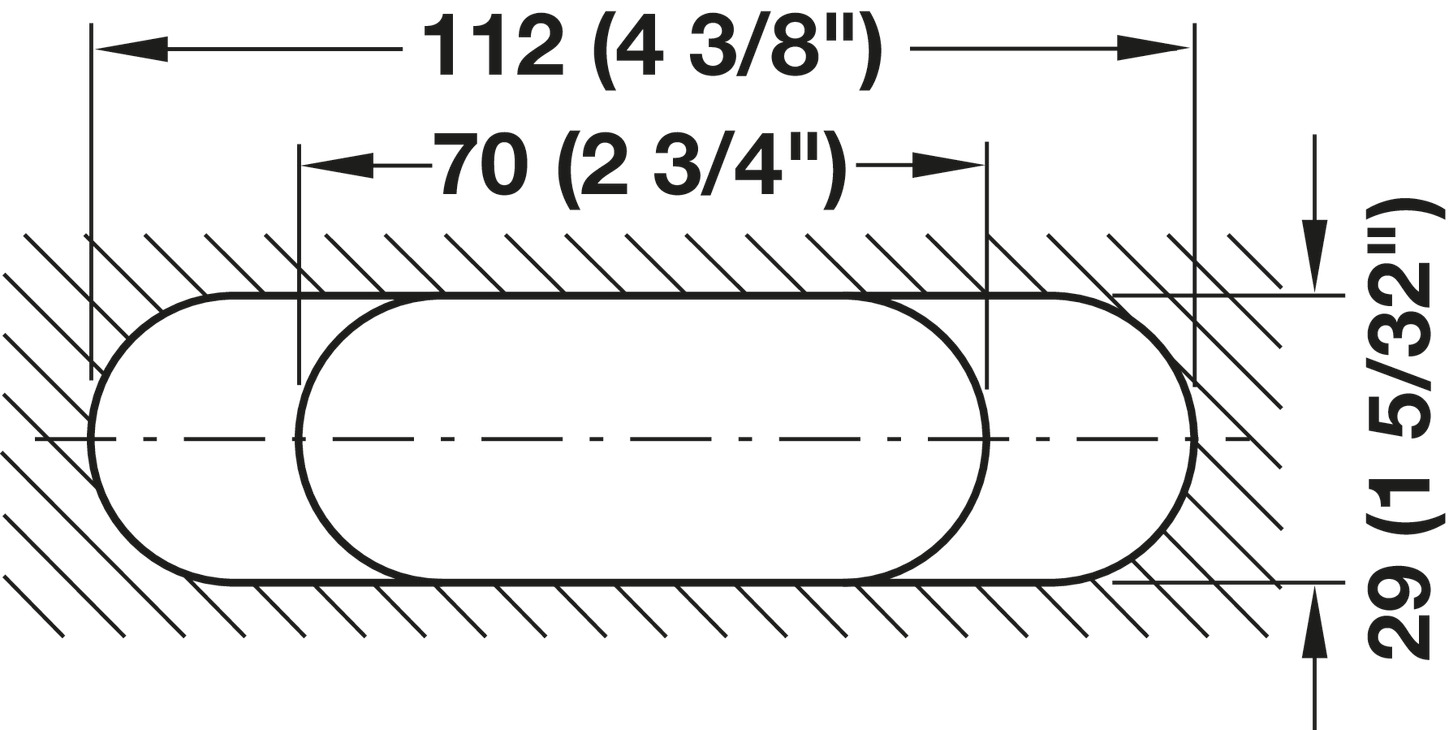

Flange height: 112 mm
Flange shape: rounded
Flange width: 29 mm
For door type: Wooden door leaf
Material: Zinc alloy
Max. door weight for 2 hinges: 50.00 kg
Max. door weight for 3 hinges: 70.00 kg
Opening angle: 180.00 °
