Hafele 927.91.824 Door Hinge, Startec, Concealed, Mortise, 3D Adjustable is designed for architects and builders seeking a reliable solution for wooden doors. With a sleek matt chrome finish, this hinge seamlessly integrates into any interior design while offering exceptional functionality. Measuring 200 mm, it features a robust construction suitable for flush wooden interior doors with a thickness of at least 40 mm. This hinge boasts a 3D adjustment capability, allowing for continuous adjustments in three directions: side (3 mm), height (from -3 to +3 mm), and closing pressure (±1 mm). This flexibility ensures precise alignment and smooth operation, accommodating varying installation requirements with ease. Capable of supporting significant weight, the Hafele 927.91.824 allows a maximum door weight of up to 120 kg when using two hinges and up to 140 kg with three hinges, making it ideal for heavier wooden door applications. Additionally, its generous opening angle of 180 degrees enhances accessibility and usability. Designed specifically for wooden frames and doors, this hinge not only provides a robust support system but also elevates the overall aesthetic of your space. Choose Hafele for quality and innovation in architectural hardware.

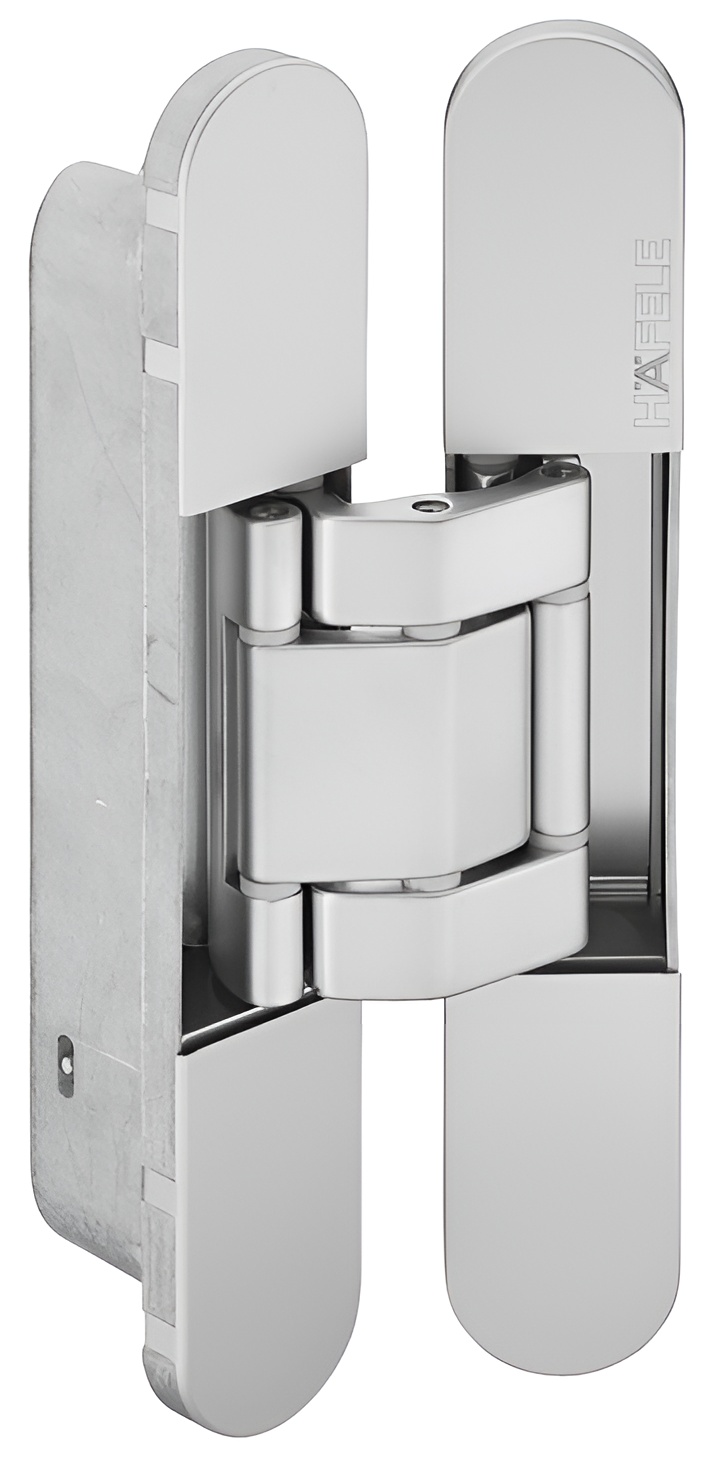

Door Hinge, Startec, Concealed, Mortise, 3D Adjustable
3D adjustable, size 200 mm, Matte chrome
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: For wooden frames, for flush wooden interior doors
Color/finish: matte, chrome plated
Door thickness: ≥40 mm
Door thickness min.: 1 5/8"

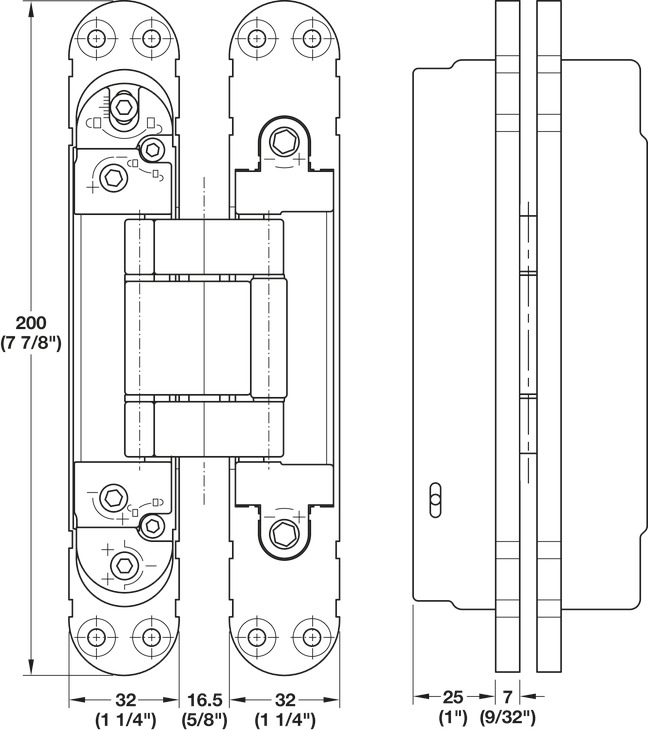

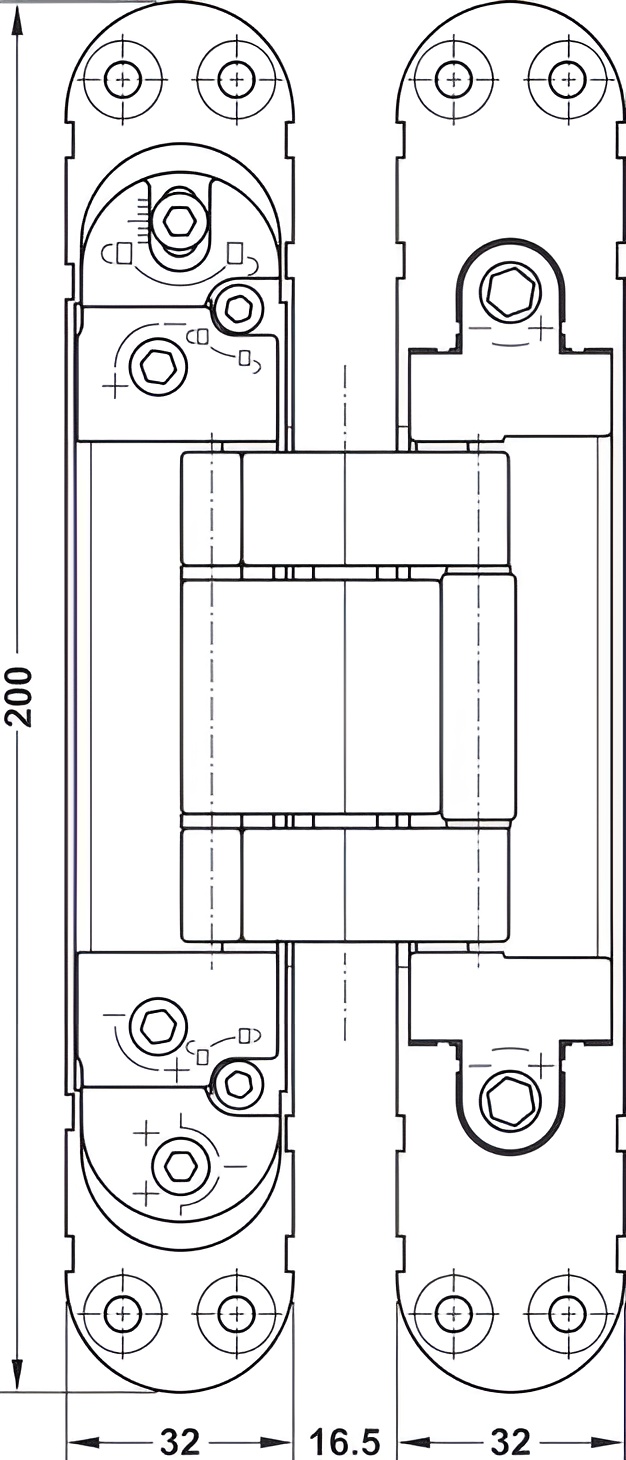

Flange height: 200 mm
Flange shape: rounded
Flange width: 32 mm
For door type: Wooden door leaf
For frame type: Wooden frame
Material: Zinc alloy
Max. door weight for 2 hinges: 120.00 kg
Max. door weight for 3 hinges: 140.00 kg
Opening angle: 180.00 °
