Hafele 940.41.008 Hawa Junior 40/GP Sliding Door Hardware SetHafele 940.41.008 Sliding Door Hardware, Hawa Junior 40/GP, set, offers a top-hung system designed for smooth and quiet operation without the need for a running track or floor guide. This innovative hardware ensures a maintenance-free experience, allowing you to enjoy the elegant movement of your sliding doors without the hassle of upkeep. With a low installation height, it facilitates seamless incorporation into various spaces. This fitting set is ideal for single doors weighing up to 40 kg, accommodating a maximum door width of 31 1/2 inches. Compatible with tempered safety glass and laminated glass of various thicknesses, it provides flexibility for your design needs. The system features an impressive load-bearing capacity, supporting up to 88 lbs. Installation is straightforward, utilizing suspension with hanger bolts and point fixing with a glass retainer. To ensure optimal performance when using two sliding doors on the same track, it’s important to prevent glass panel collisions by employing a lower guide channel or protective edge trim. The set includes all necessary components, such as running gears, mounting screws, point fixing sets, and a height adjusting pin, making it a comprehensive solution for your sliding door installation. Elevate your space with Hafele’s expertly designed sliding door hardware.
Sliding Door Hardware, Hawa Junior 40/GP, set

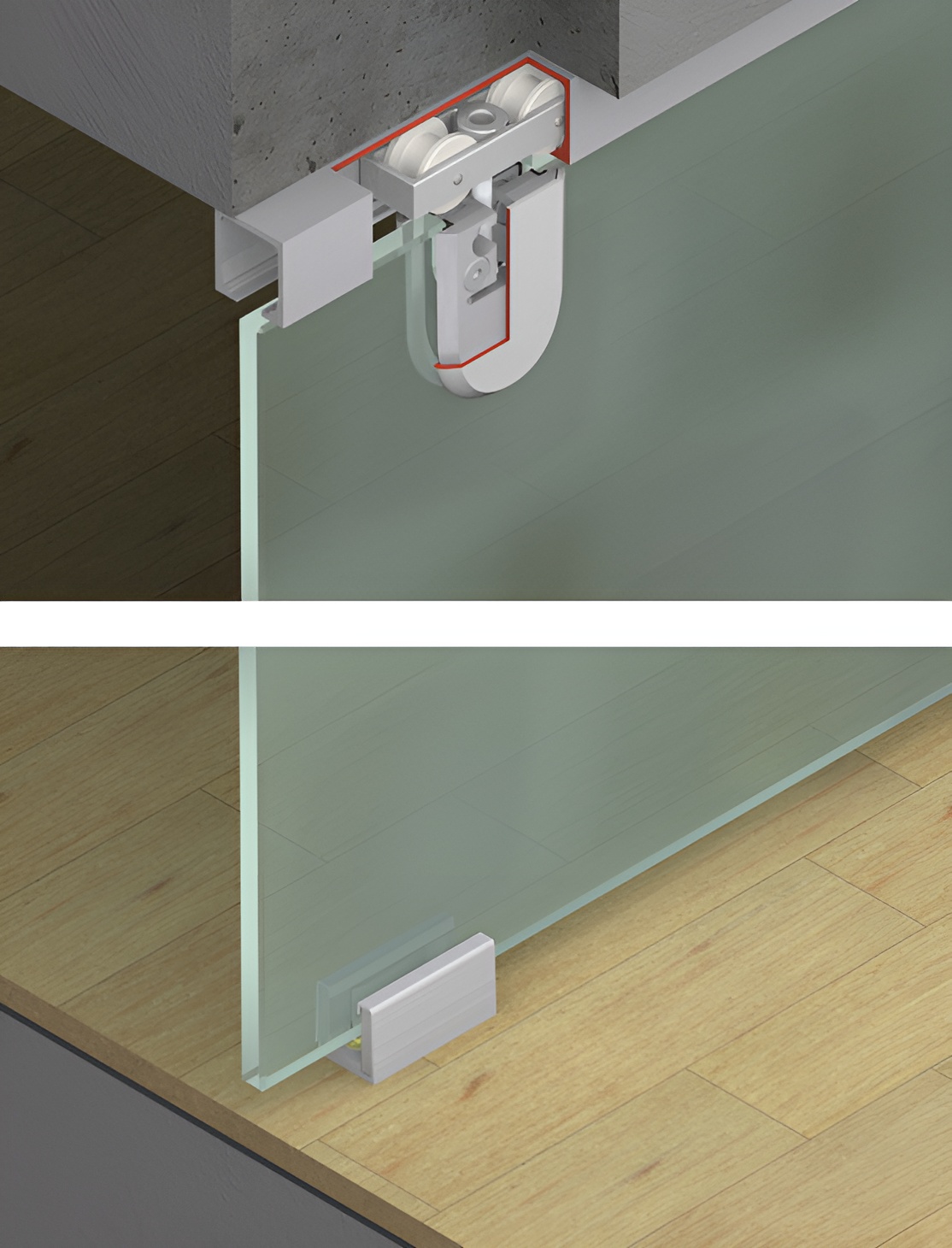

Top Hung System, without running track/floor guide/cover caps

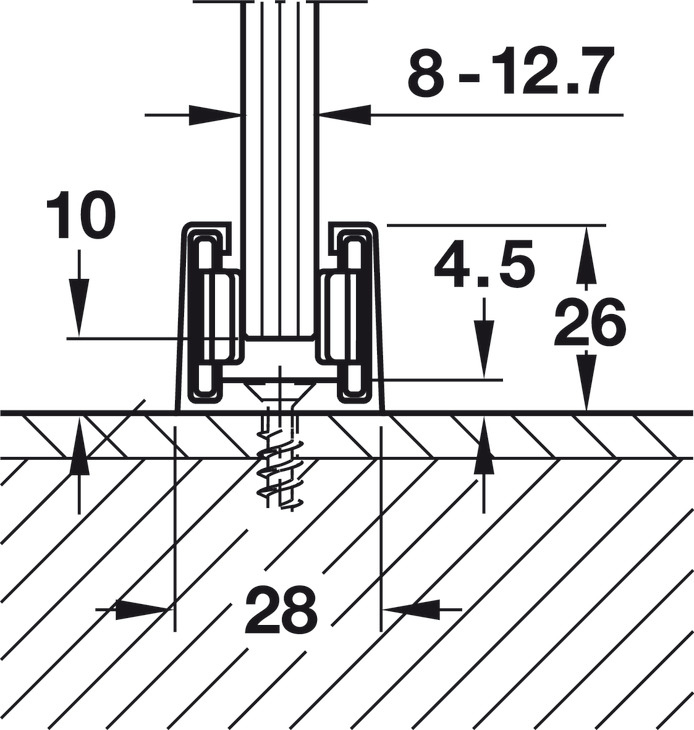

Smooth, quiet operation Maintenance-free Rattle-free bottom guide Simple installation Low installation height

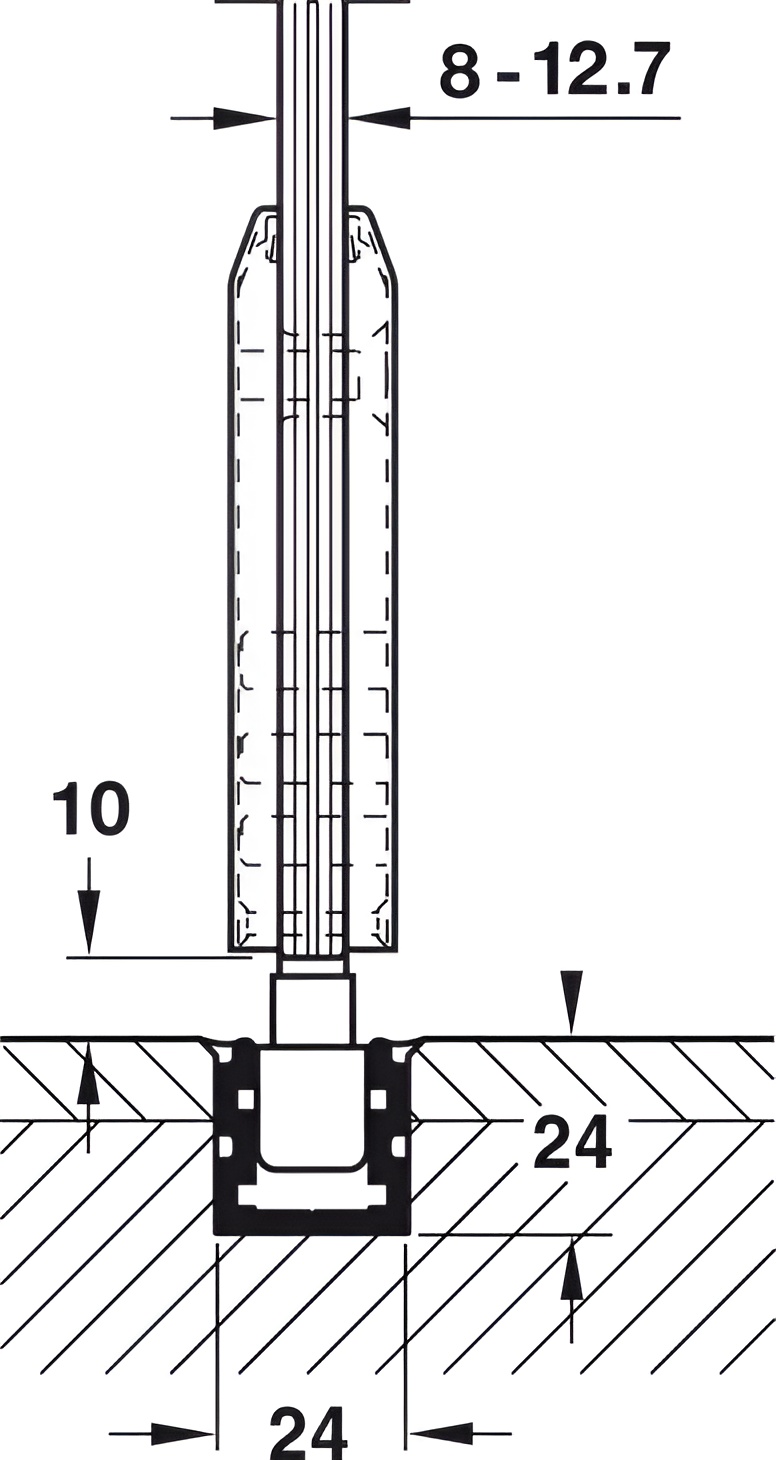

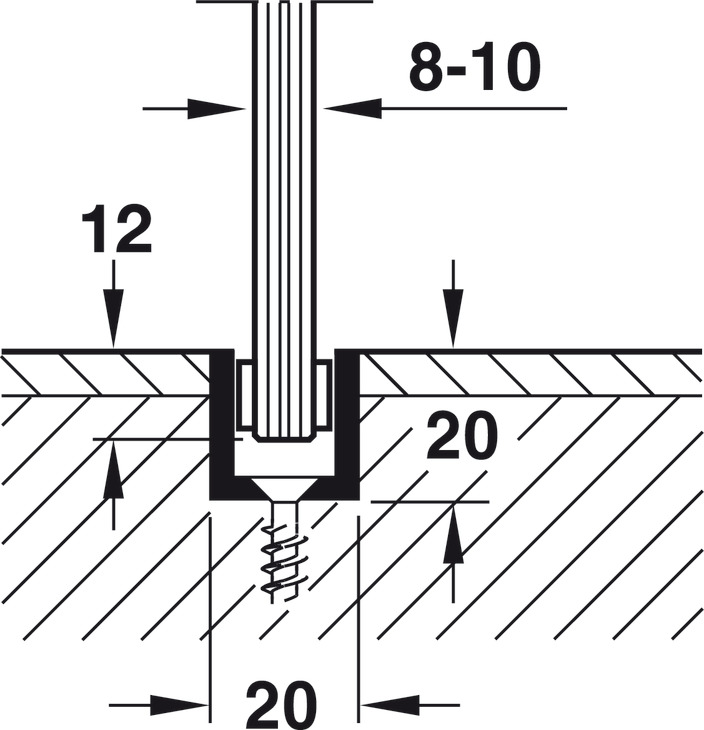

When using 2 sliding doors on the same track, please make sure that glass panels do not collide. Please use a lower guide channel with a door stopper or use protective edge trim.#The complete fitting set is always delivered without running and guide rails, please order separately.
When using 2 sliding doors on the same track, please make sure that glass panels do not collide. Please use a lower guide channel with a door stopper or use protective edge trim.
Attributes
Adjustment facility: Height adjustment facility: -3 – 3 mm, Vertical adjustment without removing the glass doortrack buffer with adjustable retaining spring
Area of application: For 1 doors
Classification in compliance with EN 1527: -|6|1|0|-|0|-|1|3
Controller installation options: Ceiling installation

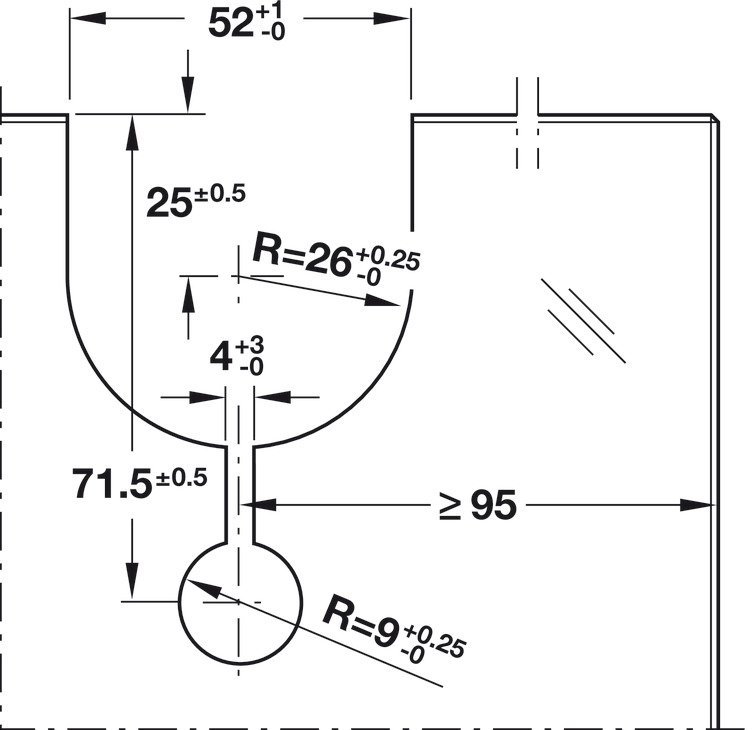

Door processing: With glass preparation
For door material: glass
For door weight: ≤40 kg
For door width (inches): Max. 31 1/2"
For glass thickness with laminated glass: 8,7–12,7 mm

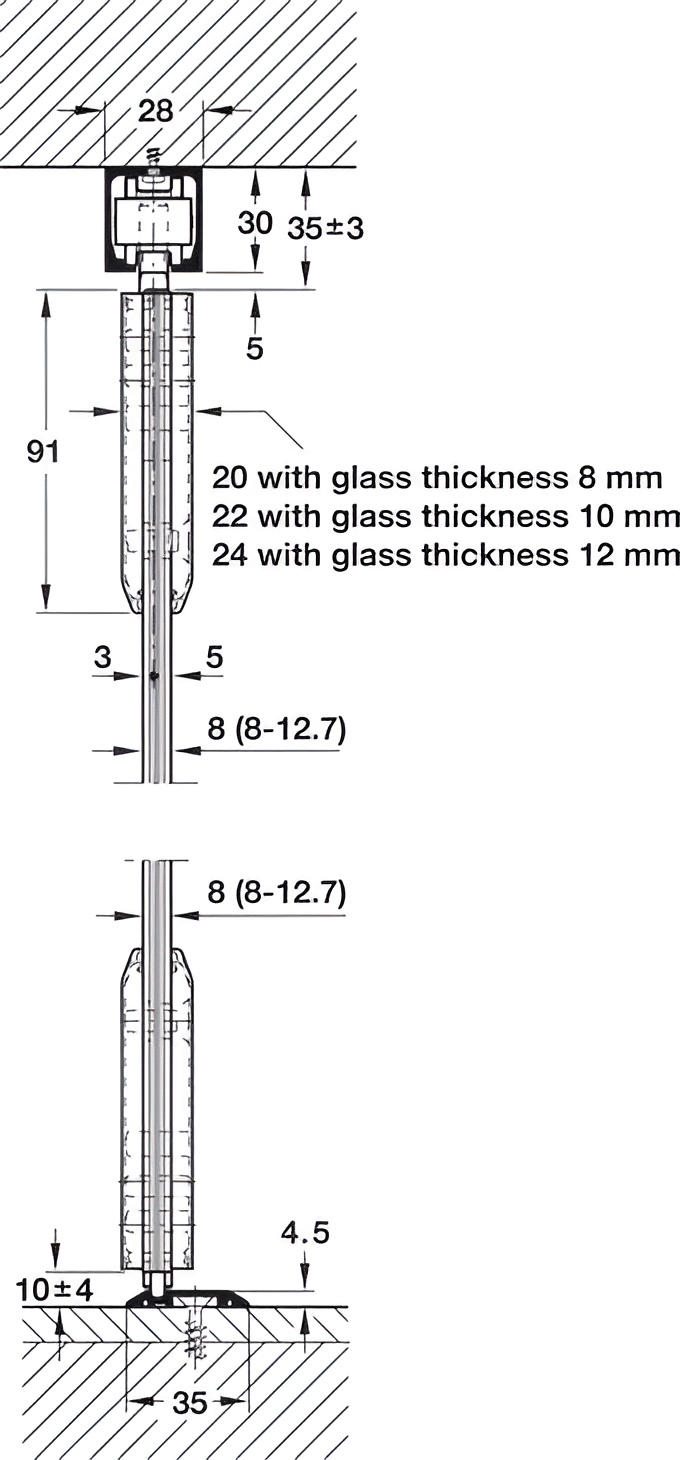

For glass thickness with tempered safety glass: 8 mm, 10 mm, 12 mm, 12.7 mm
For glass type: Tempered safety glass, Laminated glass

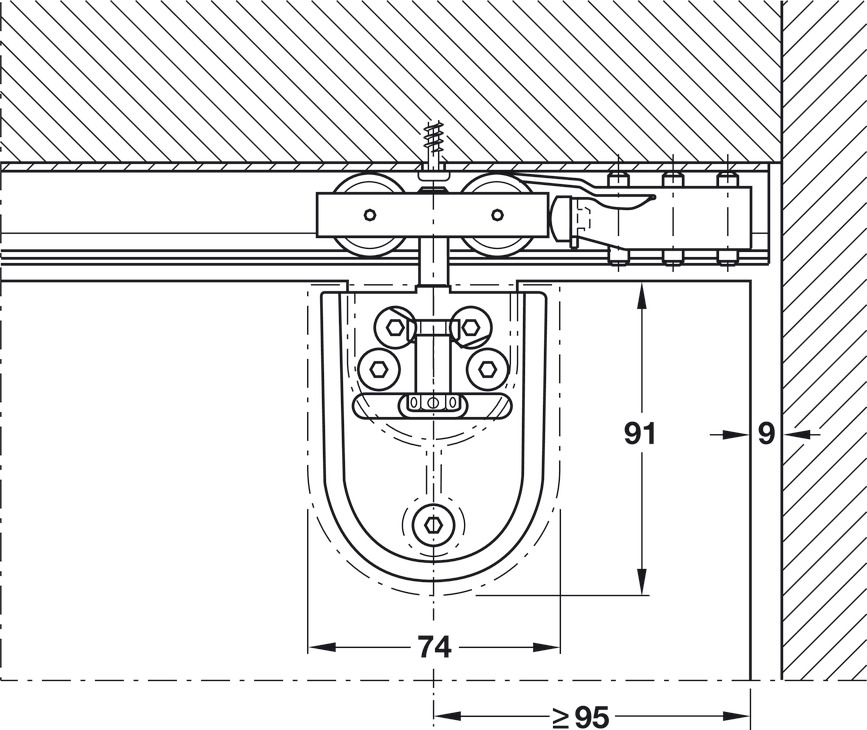

Installation: Suspension with hanger bolt, Point fixing with glass retainer
Load bearing capacity: Max: 88 lbs.
Max. door weight: 88.00 lb
Model: 40 GP
Number of doors: 1.00
Number of doors per system max.: 1 to 2
Order reference: Order 2 sets for 2-leaf sliding doors.
Running position: Top
Standard: Certified in compliance with EN 1527:1998
Suitable for: Minimum installation height

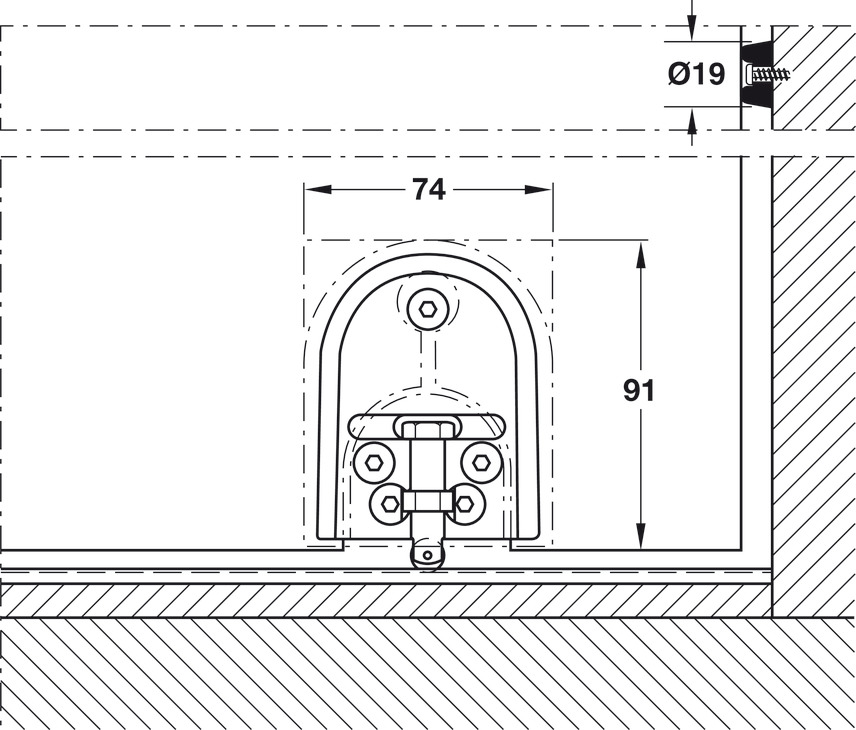

Supplied with: 2 running gears 2 hanger bolts M8 with mounting screws 2 point fixing sets with glass holder 2 track buffers 1 disposable drilling jig 1 rubber wall buffer 1 height adjusting pin
Version: without running track, without floor guide, without cover caps
