Hafele 940.42.064 Slido D-Line 11 Sliding Door Hardware Set, 50P to 120P, No TrackHafele 940.42.064 Sliding Door Hardware, Slido D-Line11 50P to 120P, is expertly designed for both 1-leaf and 2-leaf wooden sliding doors, offering versatile installation options with ceiling installation and wall mounting. This system accommodates door heights with adjustable features and supports door widths starting from 500 mm, making it suitable for various applications in residential and commercial spaces. Constructed for ease of use, the sliding door hardware ensures low opening force, providing a smooth and convenient operation even with door weights of up to 50 kg. The system is tested for increased closing speeds of up to 0.5 m/s, and it includes a shock absorber that manages closing speeds up to 0.4 m/s for added safety. While this model does not include a soft or self-closing mechanism, it allows for retrofitting or replacement at any time, maintaining flexibility for future upgrades. The package includes two running gears, one clear threshold floor guide, and two track buffers with retaining springs. Please note that the running track, panels, and other accessories must be ordered separately, and for two-leaf sliding doors, two sets are required. Elevate your space with Hafele's reliable and innovative sliding door solutions.
Sliding Door Hardware, Slido D-Line11 50P to 120P, set without running track
for 1-leaf and 2-leaf wooden sliding doors, ceiling installation and wall mounting, door height adjustable, Without soft and self closing mechanism, door width =>500 mm
Soft and self closing mechanism: Low opening force – easy and convenient operation Tested with increased closing speed up to 0.5 m/s Can be retrofitted or replaced at any time Accessibility: Opening force with door weight 50 kg: 20 N / 80 kg: 23 N Shock absorber: Closing speed with shock absorber tested up to 0.4 m/s
End cap for ceiling installation with fascia on both sides not available. One pair of end caps can be glue fixed vertically in the centre of the running track (optional).
Attributes
Adjustment facility: Height: (3/16") +/-5
Area of application: For 1-leaf and 2-leaf sliding doors

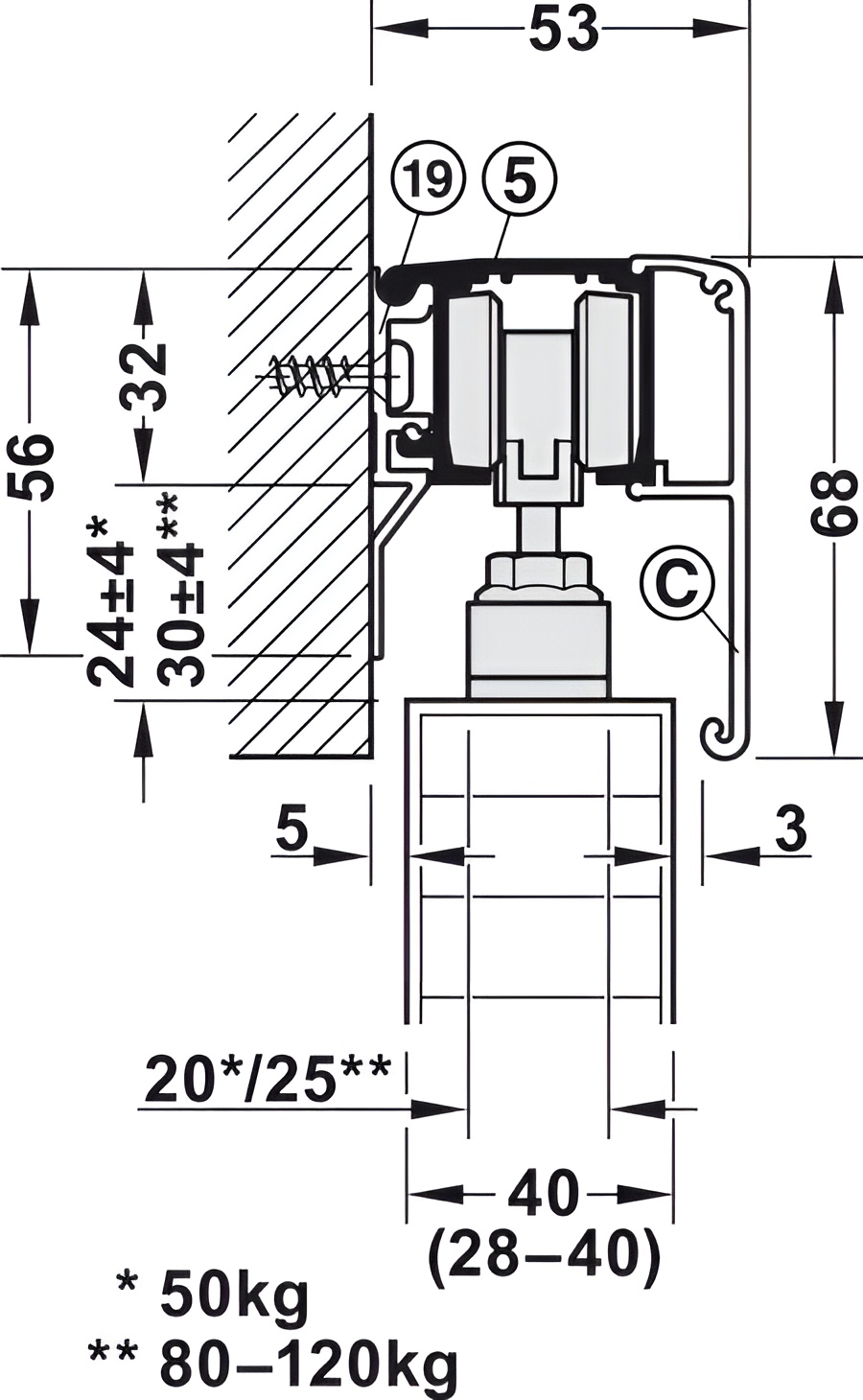

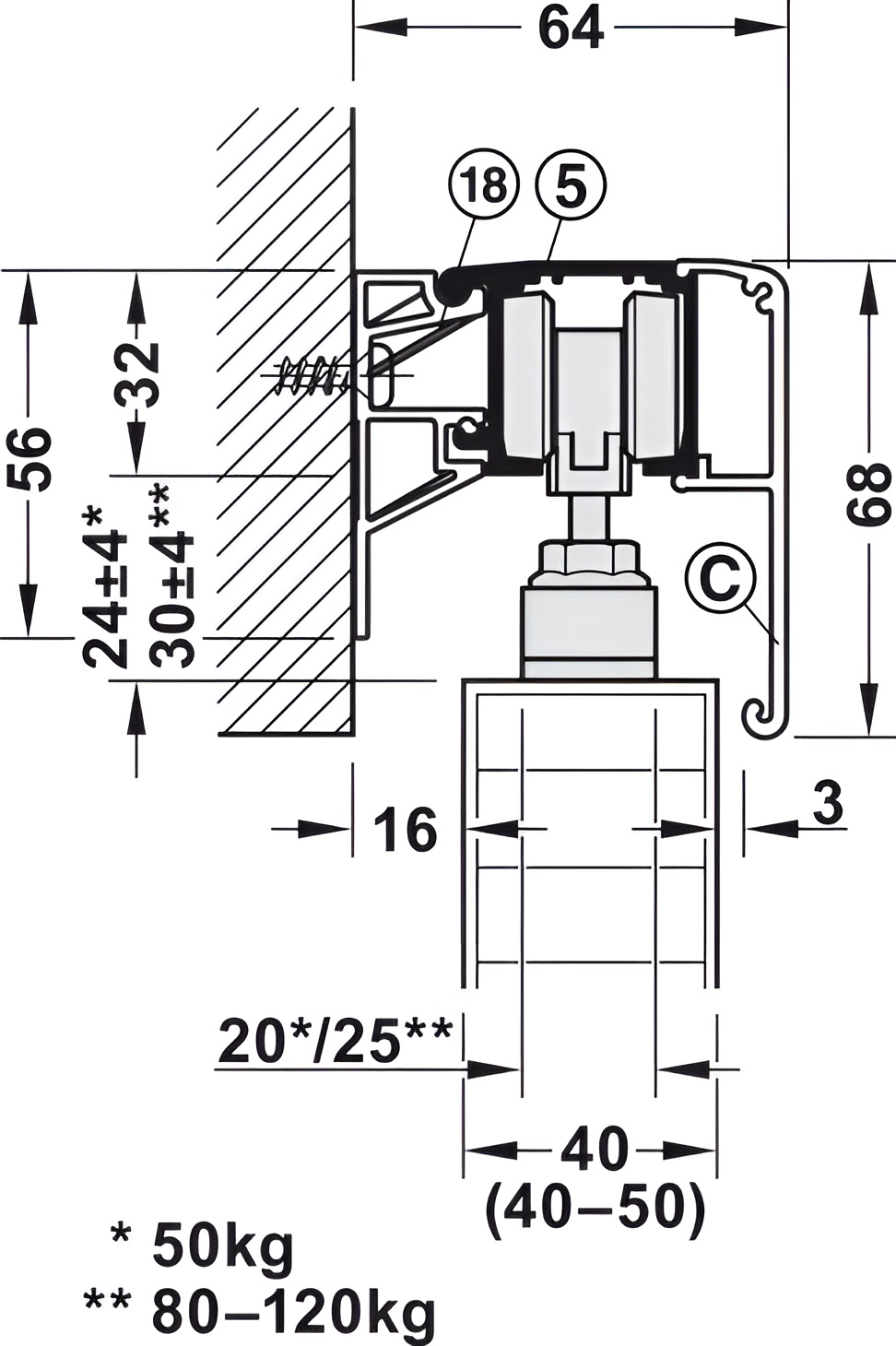

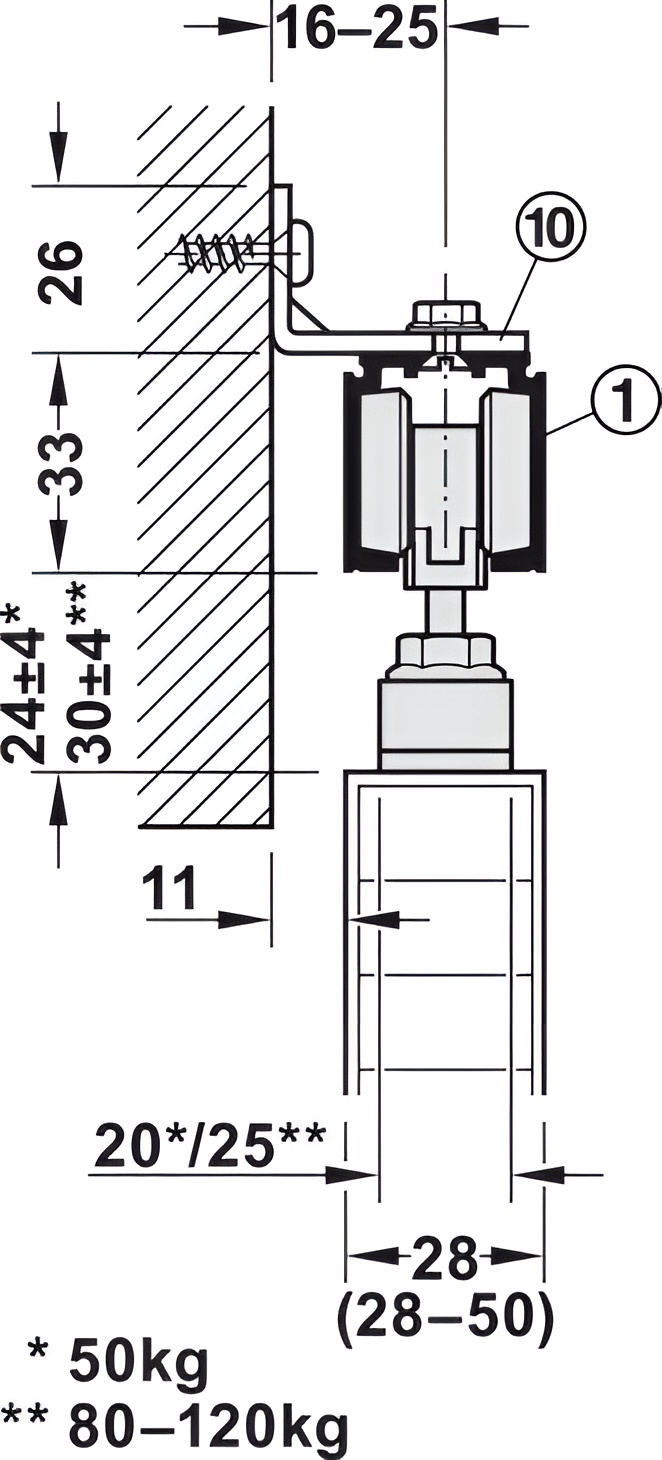

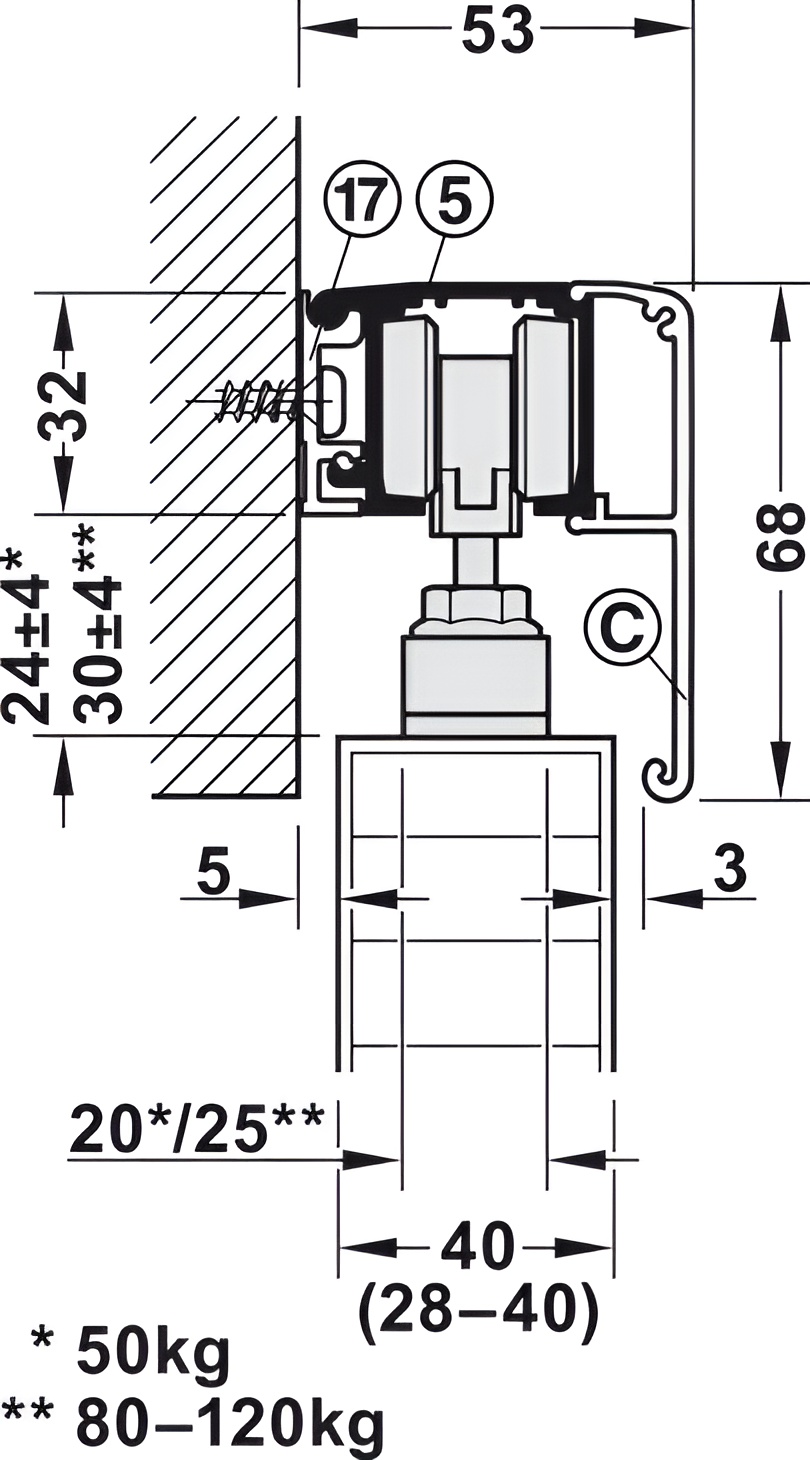

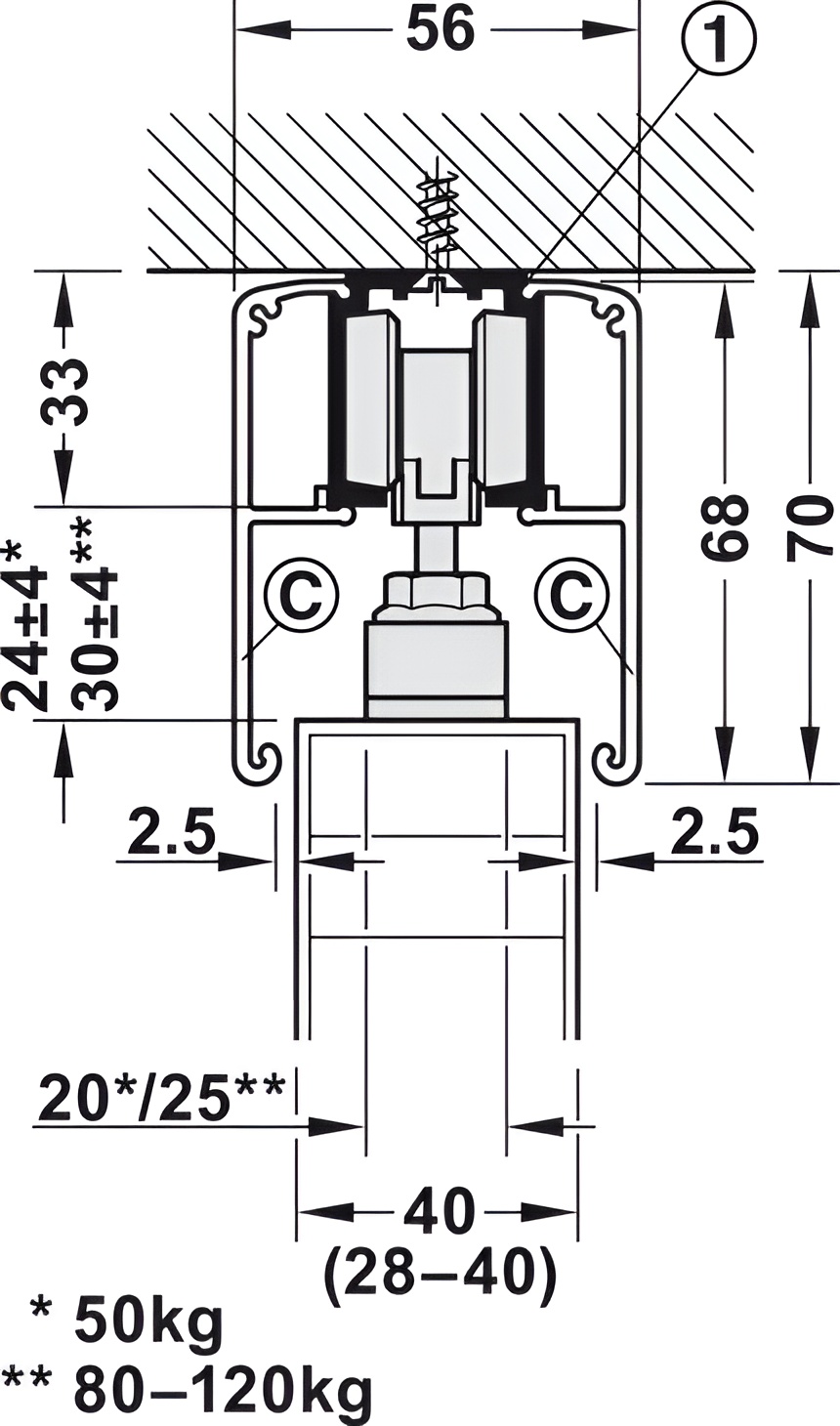

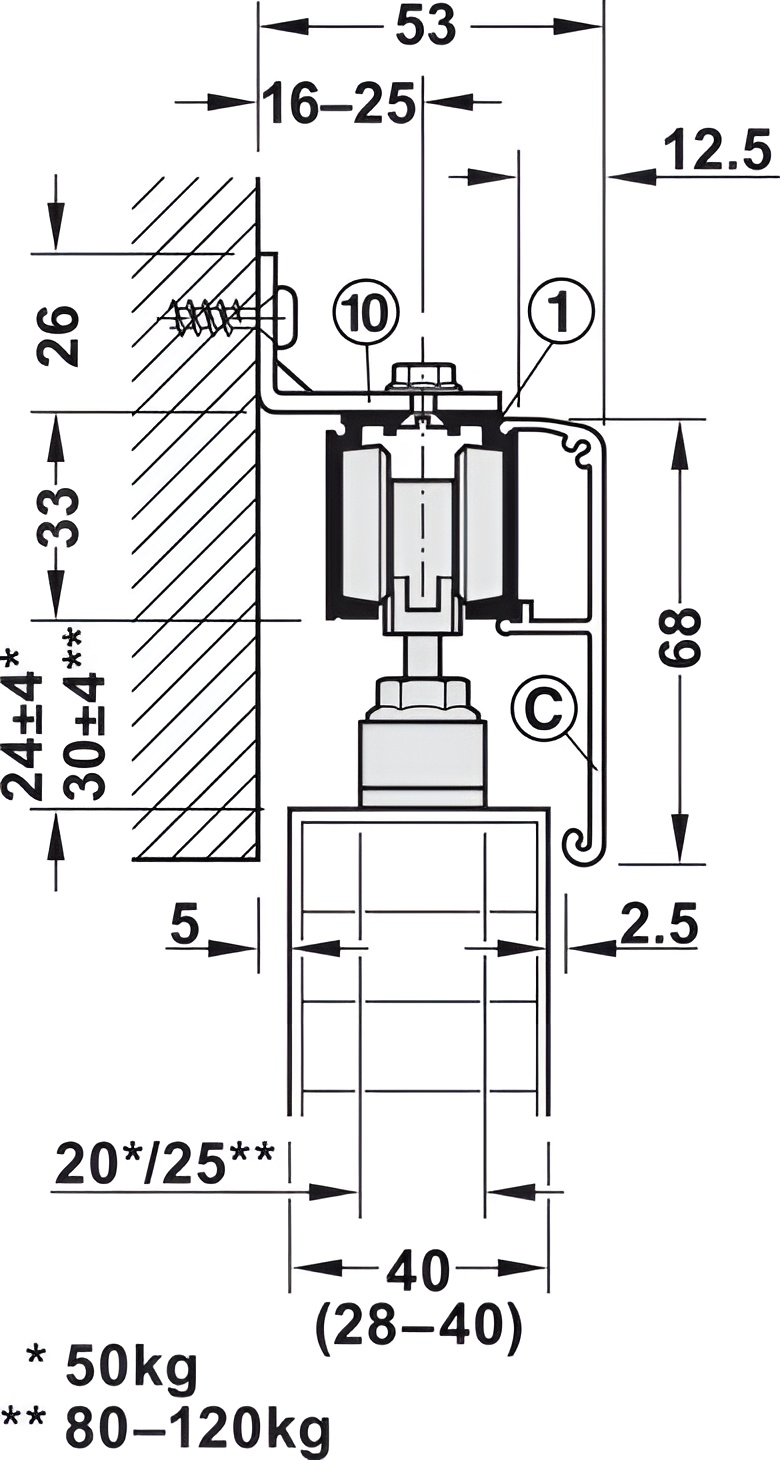

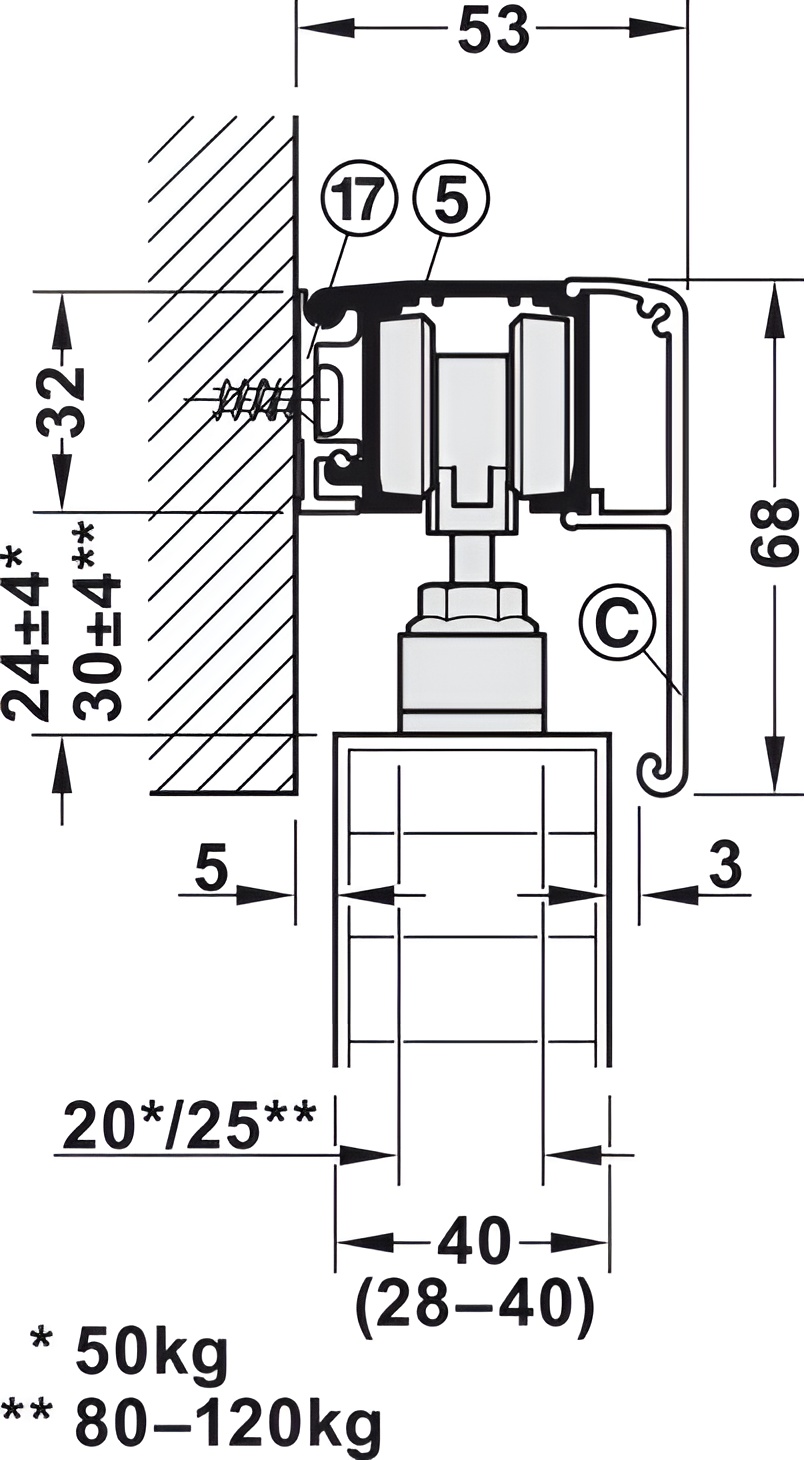

Controller installation options: Ceiling installation, Wall mounting
For door material: wood
For door weight: ≤50 kg
For door width: ≥500 mm
Installation: Suspension with screwed on support flange
Max. door weight: 110.00 lb
Model: 50P
Note on door weight: Per door
Number of doors: 1.00
Number of doors per system max.: 1
Order reference: Please order track, panels and accessories separately. Order 2 sets for 2-leaf sliding doors.

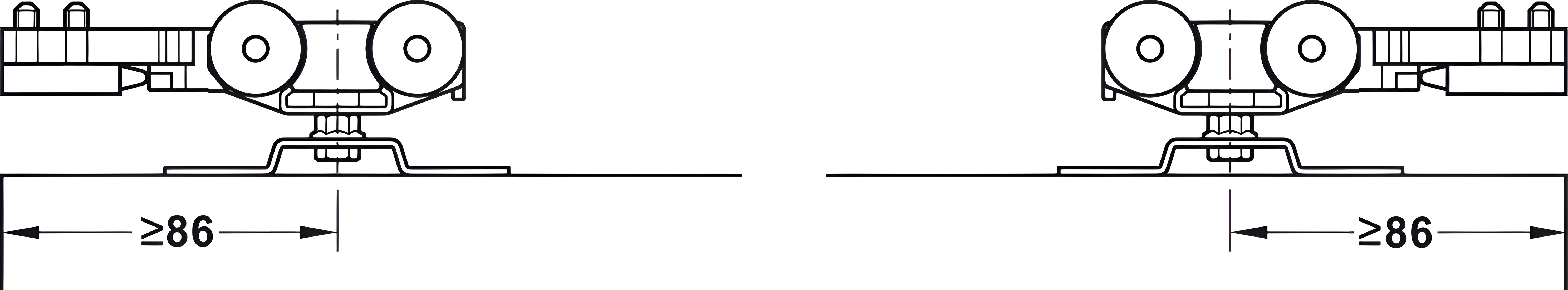

Running gear version: Running gear with axle bearing
Running position: Top
Soft closing mechanism: without soft and self closing mechanism, with track buffer with retaining spring on both sides
Supplied with: 2 running gears 1 clear threshold floor guide 2 track buffer with retaining spring
Version: Track buffer with retaining spring
