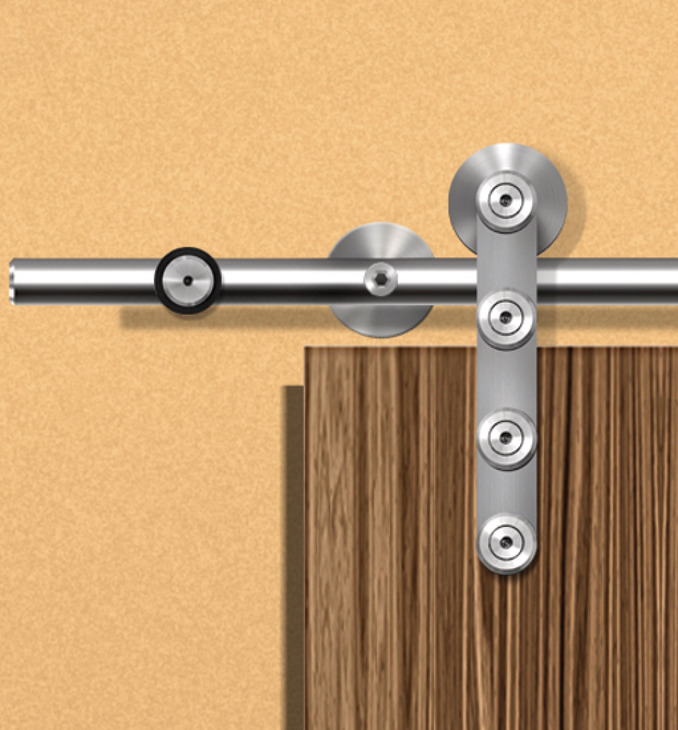

Hafele 940.64.132 Hollow Stainless Steel Track Set offers a reliable solution for your sliding wood door needs. Designed for a seamless installation, this track set accommodates a door width of at least 1,100 mm and supports door thicknesses ranging from 35 to 45 mm (1 3/8" to 1 3/4"). With a robust load-bearing capacity of up to 220 lbs (100 kg), it ensures smooth and quiet operation, making it ideal for residential and commercial applications. Constructed from durable stainless steel, the track set is maintenance-free, providing longevity and consistent performance without the hassle of upkeep. The simple installation process requires just four to six wall fixings, allowing for wall-mounted configurations that optimize space. Supplied with necessary components like upper track rods, door stoppers, running gears, and a hex key, this set includes an installation plan for your convenience. Designed specifically for one sliding wood door, the Hafele 940.64.132 is perfect for modern interiors that value both aesthetics and functionality. Elevate your space with this reliable and stylish sliding door solution, ensuring a perfect blend of design and practicality.
Hollow Stainless Steel Track Set, Project
For 1 Sliding Wood Door, 2.3 m Length
Adjustment facility: Non-height adjustable
Area of application: For 1 sliding wood door
Controller installation options: Wall mounting
For door material: wood
For door thickness: 35 – 45 mm
For door thickness max.: 1 3/4"
For door thickness min.: 1 3/8"
For door weight: ≤100 kg
For door width: ≥1,100 mm
Installation: with 4 wall fixings, with 6 wall fixings
Length (inch): 7’ 6 9/16"
Load bearing capacity: 220 lbs.
Material/finish: Stainless steel
Number of doors: 1.00
Order reference: Item numbers stated are valid for 1 pc. When ordering individual components, please indicate the desired quantity. Order hanger bolts separately.
Running position: Top
Running track length: 2,300.00 mm
Supplied with: Upper track rod 4 - 5 wall attachments 2 door stoppers 2 running gears Lower guide Hex key Installation plan included in fitting set, also available for planning and execution upon request
