Hafele 940.81.002 Hawa Symmetric 80/G Sliding Door Hardware SetHafele 940.81.002 Sliding Door Hardware, Hawa Symmetric 80/G, set offers a sophisticated solution for creating a seamless access point with two sliding doors. Designed for symmetrical openings, this system accommodates door weights of up to 80 kg, ensuring smooth and quiet operation without the need for a running track or bottom guide. The top guidance system allows for easy adjustments, and doors can be hung and corrected even after the pocket wall is closed. Ideal for installations where aesthetic and functionality converge, it is suitable for doors made of tempered safety glass, with thicknesses ranging from 8 to 16 mm. The system supports door widths from 500 to 1,200 mm and heights starting at 3,000 mm, making it versatile for various architectural applications. Included in the set are essential components such as four running gears, suspension carriages, a track buffer, cover caps, and more, ensuring all necessary parts are at hand for a streamlined installation process. For optimal performance, the system is compatible with all floor guide versions, although these must be ordered separately. Elevate your design with Hafele’s reliable sliding door hardware, engineered for a maintenance-free experience and crafted for enduring elegance.
Sliding Door Hardware, Hawa Symmetric 80/G, set

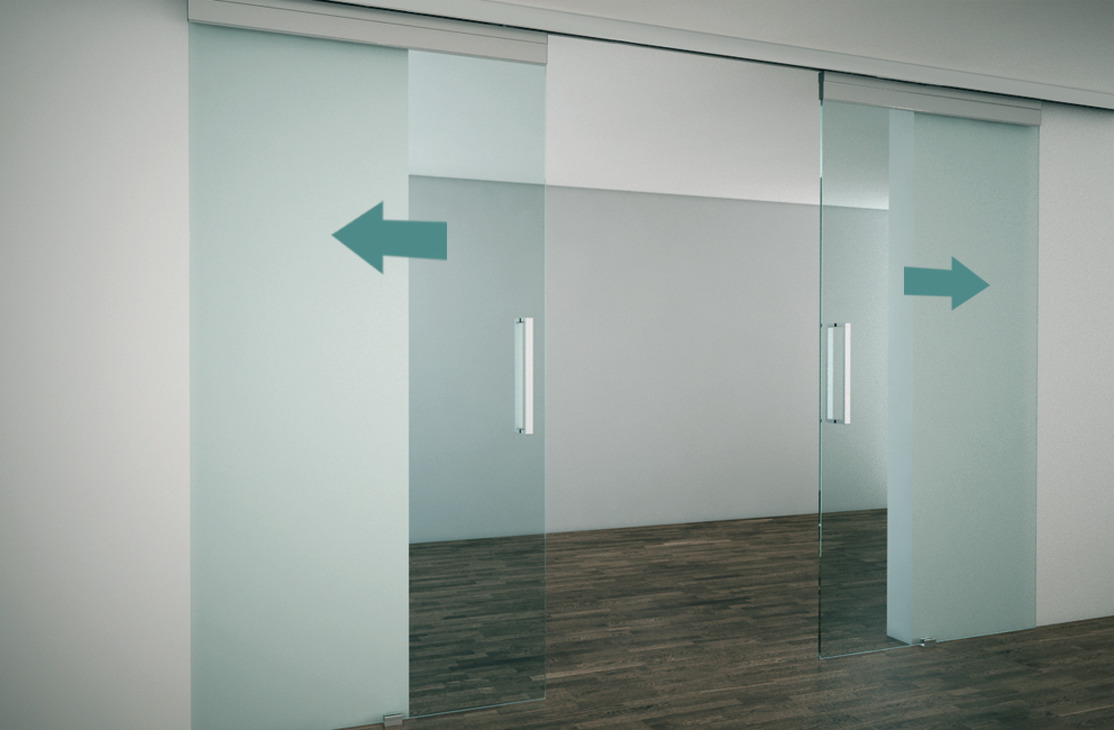

Symmetrical opening of 2 sliding doors, guidance at top, re-adjustment possible, for door weights up to 80 kg, without running track and bottom guide
Smooth quiet operation Maintenance-free When mounting this system inside a pocket the installation has to be completed before closing the pocket wall; it is recommended to provide a service opening Doors can be hung and adjusted after the pocket wall is closed
Can be used with all floor guide versions. See Junior 80 G. Please order separately
Attributes
Adjustment facility: Door height adjustable
Area of application: For 2 doors
Controller installation options: Ceiling installation

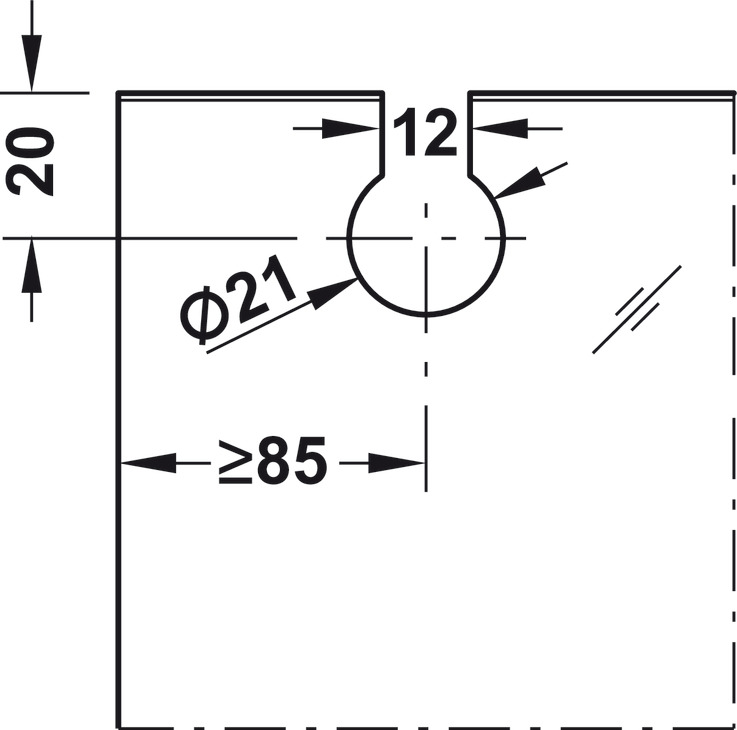

Door processing: With glass preparation
Door weight max.: 176 lbs.
For door height: ≥3,000 mm
For door material: glass
For door weight: ≤80 kg
For door width: 500 – 1,200 mm
For glass thickness with tempered safety glass: 8–16 mm
For glass type: Tempered safety glass
Installation: Suspension with form-fitting glass connection with glass holders
Model: 80 G Symmetric without soft and self closing mechanism with track buffer on one side
Model series: Junior
Number of doors: 2.00
Number of doors per system max.: 2
Order reference: Please order tracks, profiles and floor guide separately.
Running position: Top
Suitable for: Symmetrical opening of 2 sliding doors
Supplied with: 4 Running gears 4 suspension carriages 1 track buffer 4 cover caps 1 locking wrench 2 deflection rollers 2 clamping pieces 1 toothed belt 2 rubber wall buffer
Version: without running track, without floor guide
