Hafele 940.83.015 Slido D-Line 11 50C-120C Sliding Door Hardware Set, No TrackHafele 940.83.015 Sliding Door Hardware, Slido D-Line11 50C to 120C, is designed for seamless operation of 1-leaf to 4-leaf wooden and sliding frame doors. This set, which does not include a running track, offers versatile installation options with ceiling and wall mounting capabilities. The door height is adjustable, ensuring a perfect fit in various settings. Equipped with a soft and self-closing mechanism on one side, this hardware provides low opening force for easy operation. It has been tested for closing speeds of up to 0.5 m/s, making it both efficient and safe. The hardware accommodates door widths starting at 499 mm and is suitable for door weights of up to 80 kg, with an opening force of 18 N for a 50 kg door. The Hafele system includes essential components such as two running gears (one with a soft and self-closing mechanism), a clear threshold floor guide, and a track buffer with a retaining spring. It supports door thicknesses ranging from 28 to 45 mm and is compatible with various glass thicknesses. The integrated flange clip installation allows for tool-free setup, streamlining the installation process for builders and homeowners alike.
Sliding Door Hardware, Slido D-Line11 50C/80C/120C, set without running track
for 1-leaf and 4-leaf wooden and sliding frame doors, ceiling installation and wall mounting, door height adjustable, With soft and self closing mechanism on one side, Door width =>499 mm
Soft and self closing mechanism: Low opening force – easy and convenient operation Tested with increased closing speed up to 0.5 m/s Can be retrofitted or replaced at any time Accessibility: Opening force with door weight 50 kg: 20 N / 80 kg: 23 N Shock absorber: Closing speed with shock absorber tested up to 0.4 m/s
Attributes
Adjustment facility: Height adjustment facility: -3 – 3 mm, Height: (1/8") +/-3

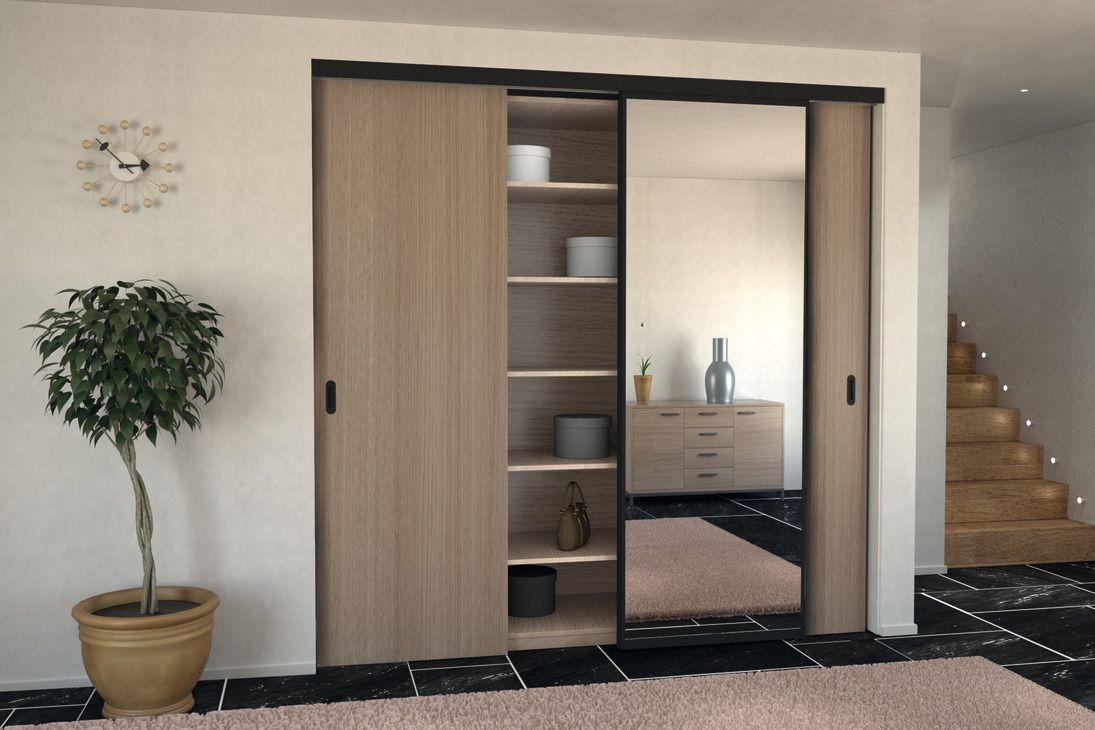

Area of application: For wooden and frame doors for 1-leaf to 4-leaf sliding doors

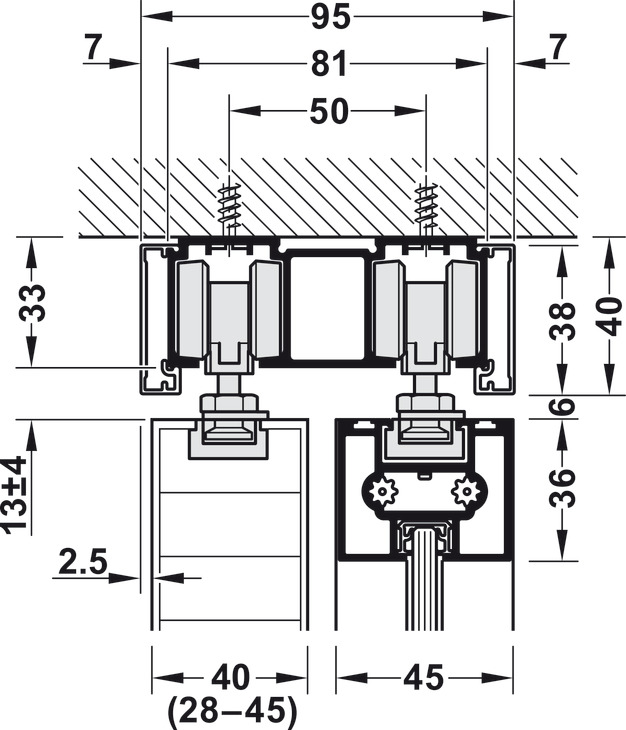

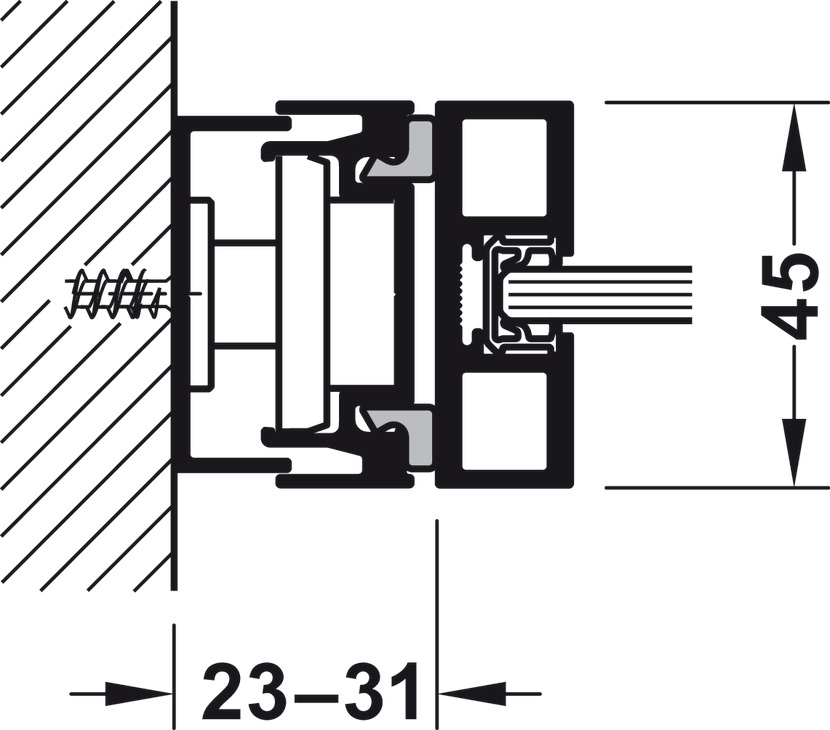

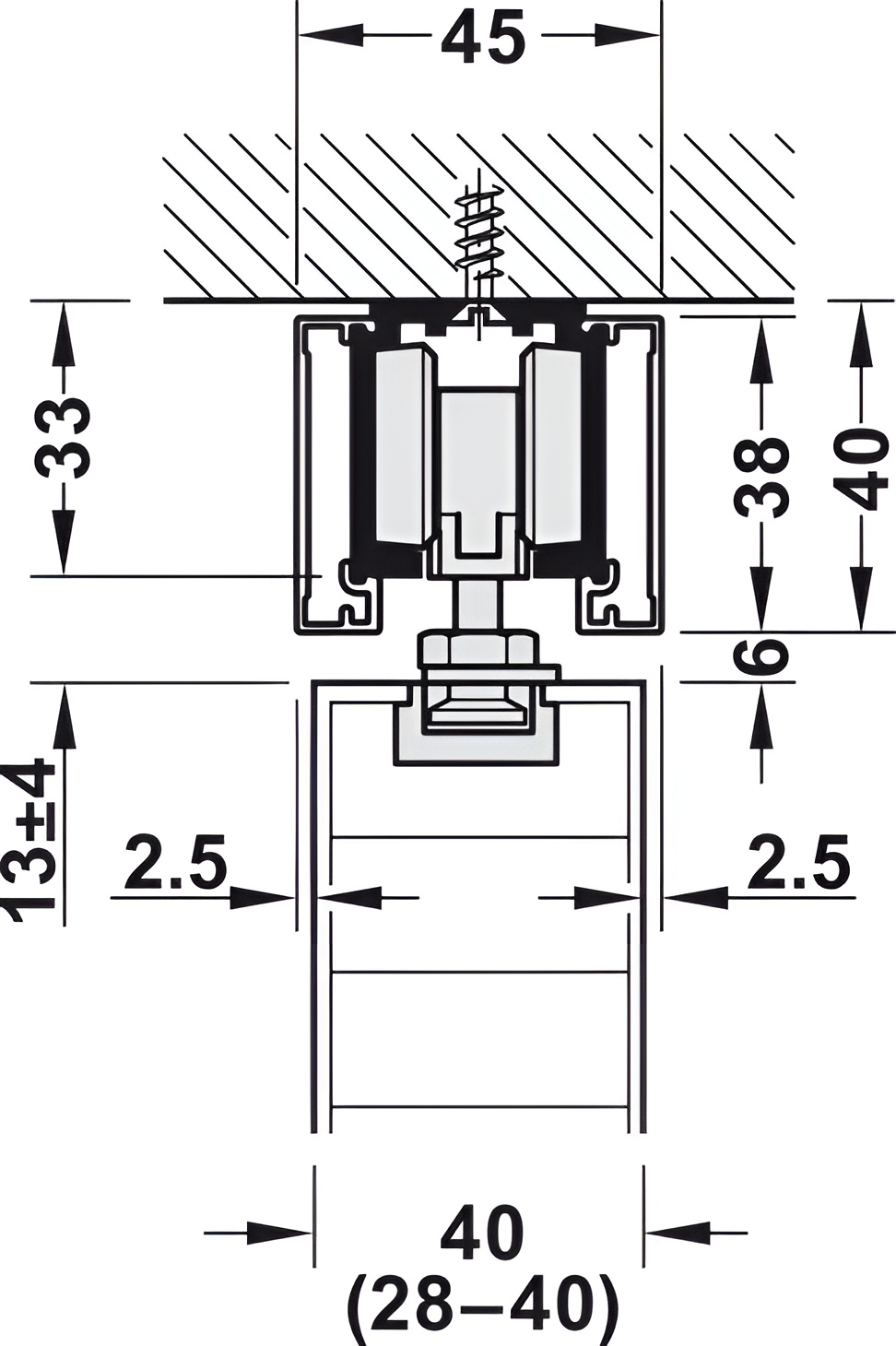

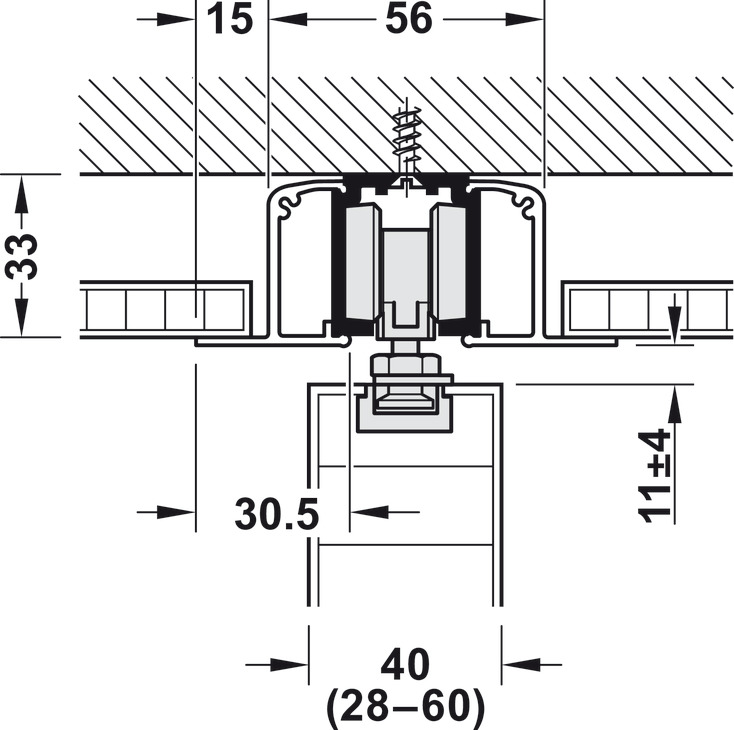

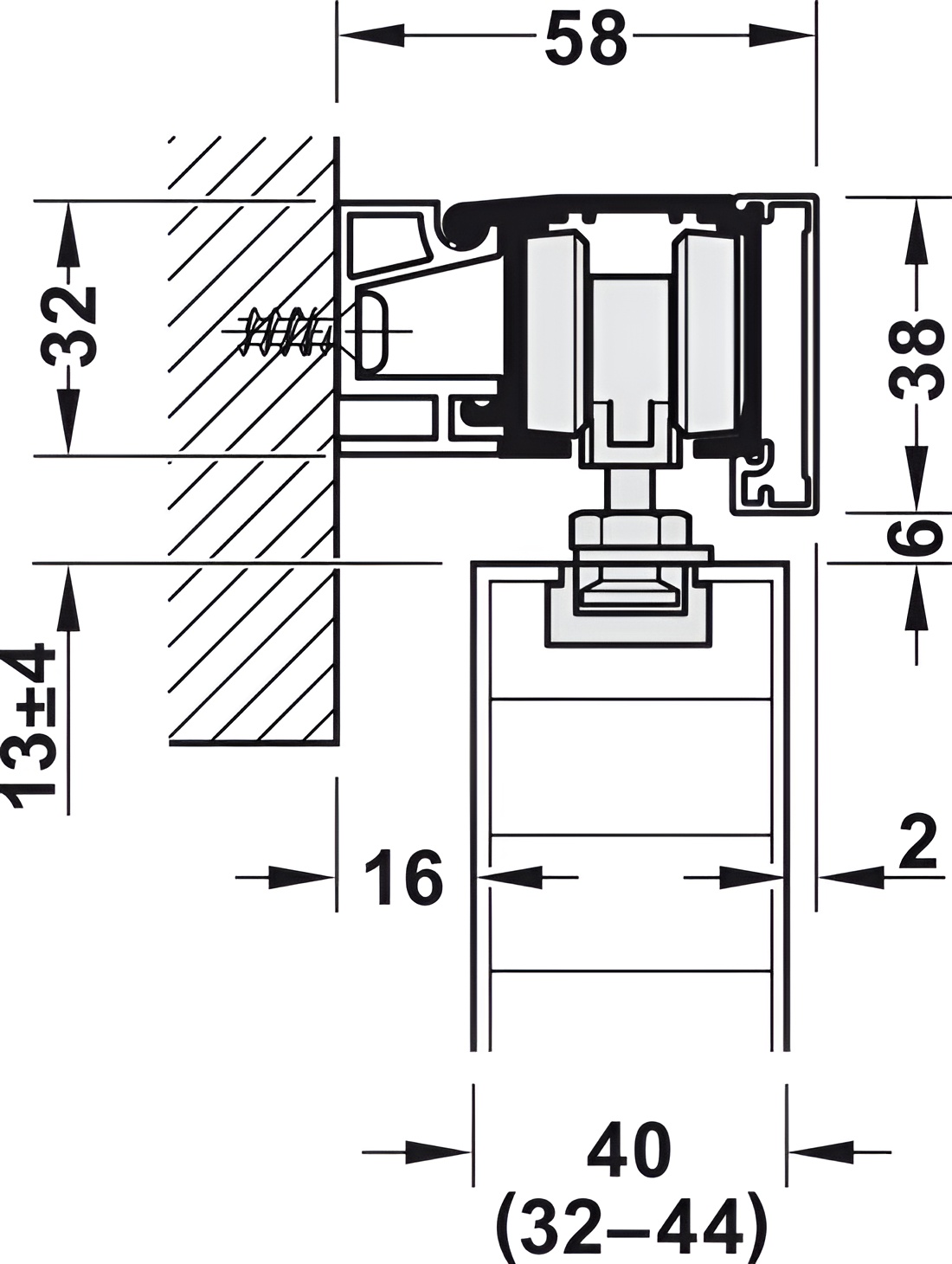

Controller installation options: Ceiling installation, Wall mounting

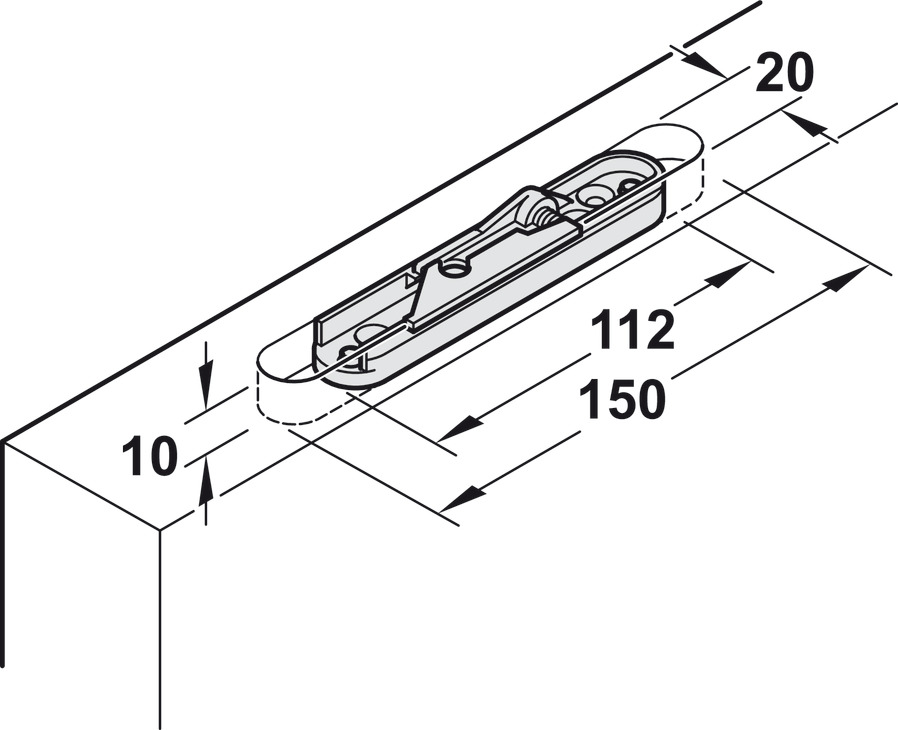

Door processing: With recess
For door material: wood, frame doors
For door thickness: 28 – 45 mm
For door weight: ≤80 kg

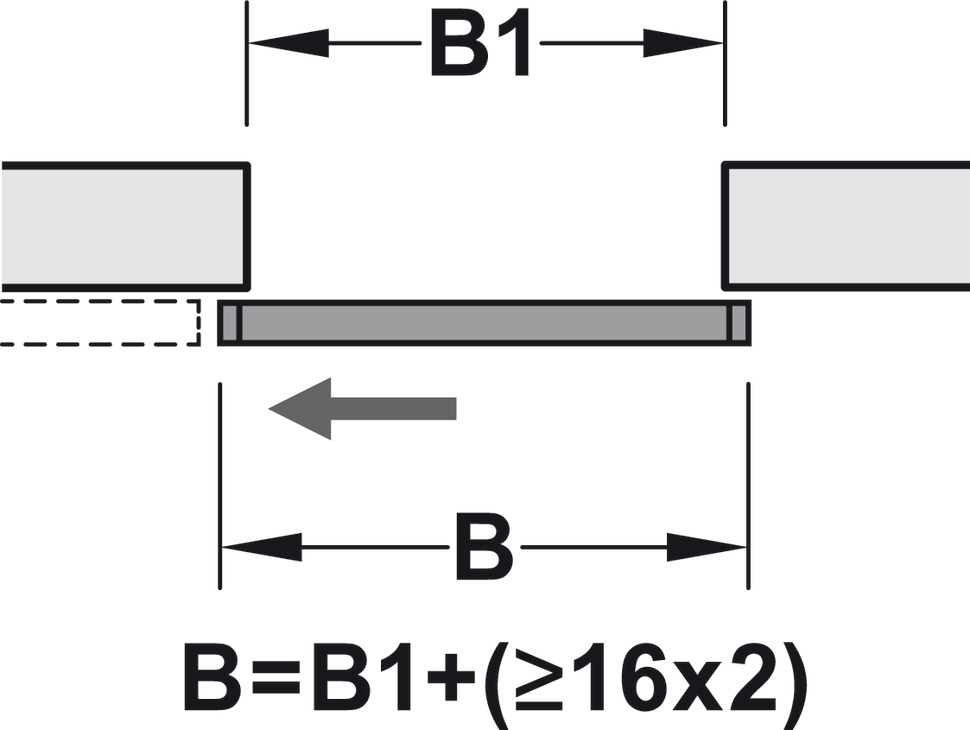

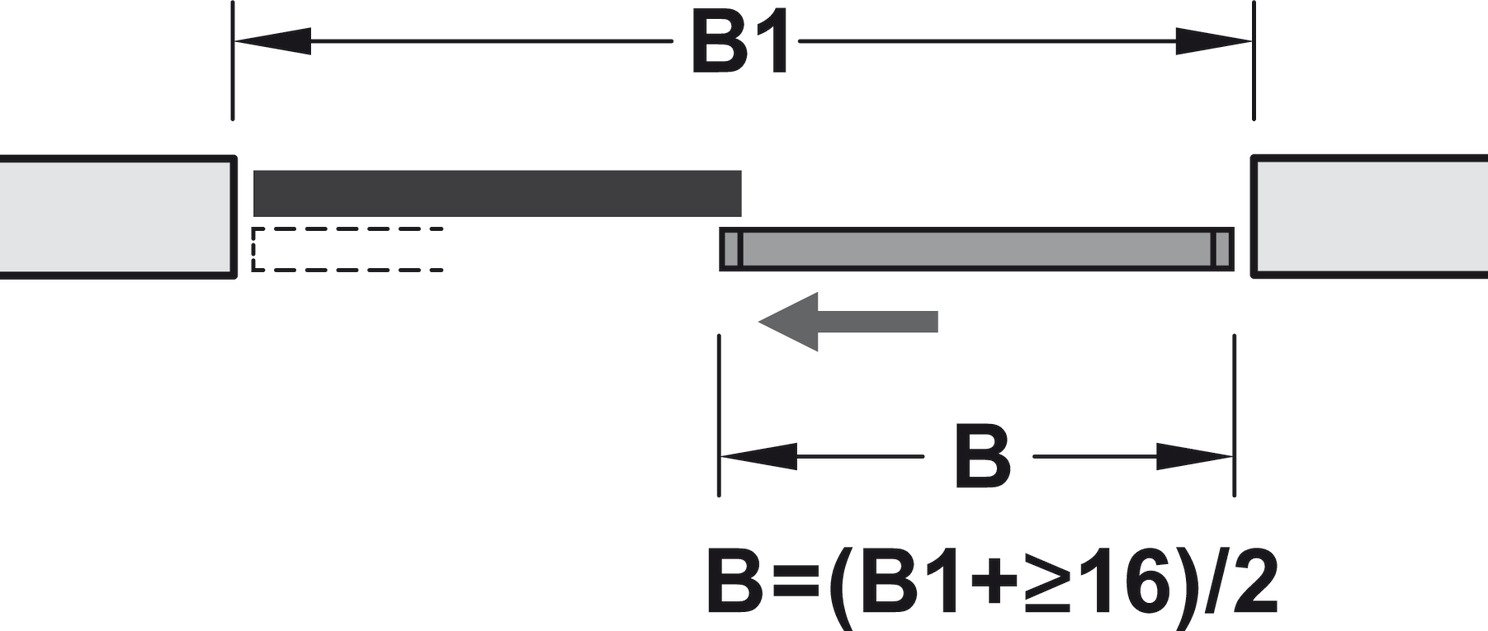

For door width: ≥499 mm
For glass thickness with laminated glass: 6-8.7 mm
For glass thickness with tempered safety glass: 6 mm, 8 mm, 5 mm
Installation: Suspension with integrated flange clip (without tools)
Max. door weight: 176.00 lb
Model: 80C
Note on door height: 3,000 mm for frame doors
Note on door width: 1,500 mm for frame doors
Number of doors: 1.00
Number of doors per system max.: 1 to 4

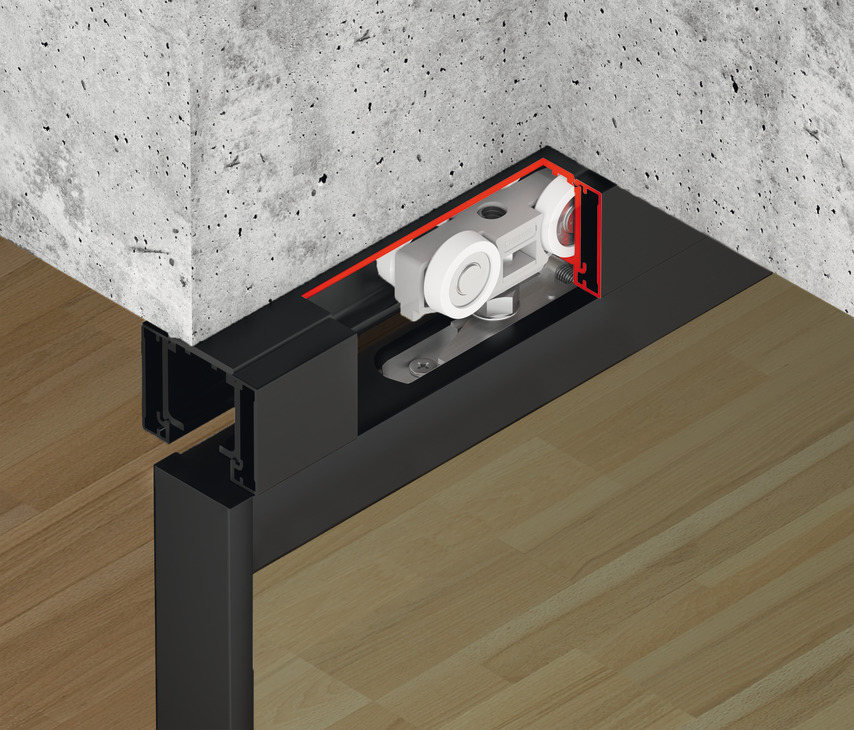

Running gear version: Running gear with axle bearing
Running position: Top
Soft closing mechanism: with soft and self closing mechanism on one side, with track buffer on one side

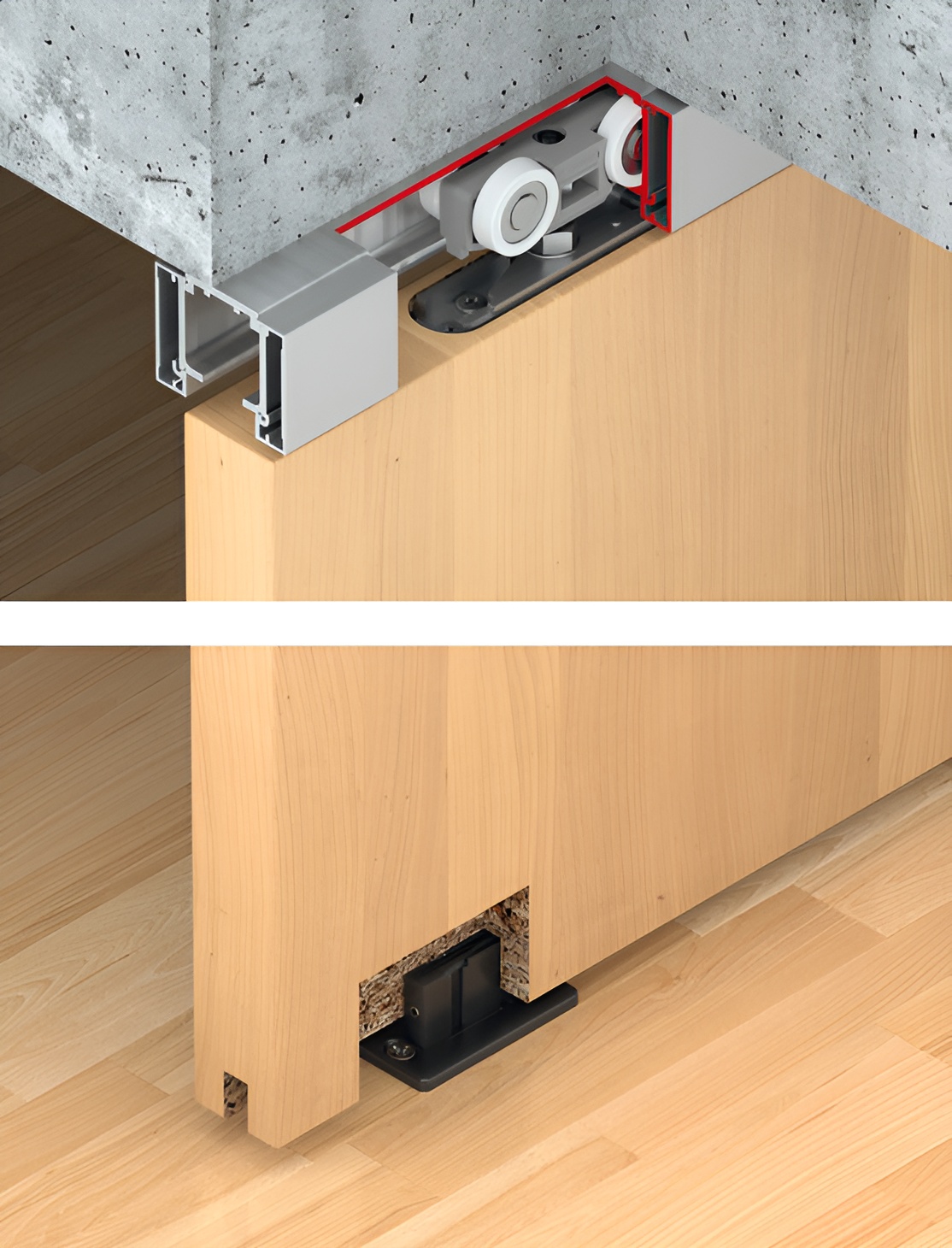

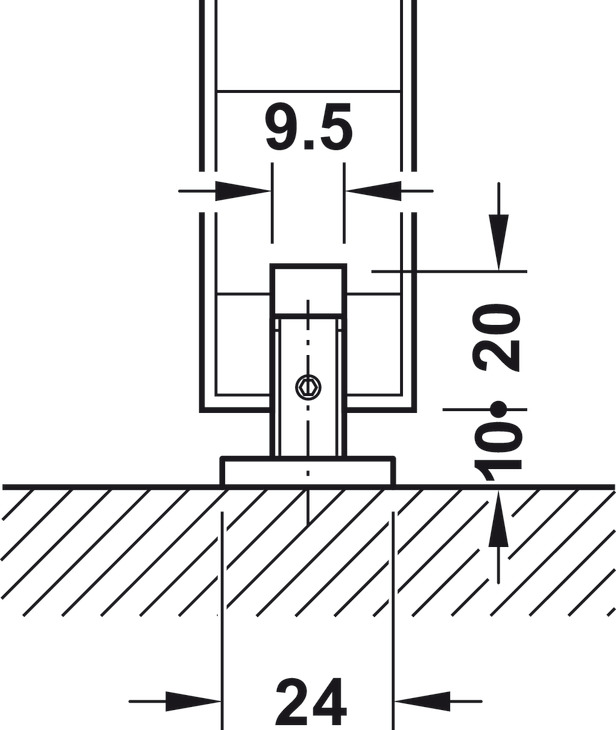

Supplied with: 2 running gears (1 with soft and self closing mechanism) 1 clear threshold floor guide 1 track buffer with retaining spring 1 release device with stopper for soft and self closing mechanism
