Hafele 941.07.176 Solid Stainless Steel Track Set, Tritec, is designed to provide a seamless solution for sliding wood doors with a length of 2.3 meters. Engineered for smooth, quiet operation, this system is maintenance-free, ensuring long-lasting performance without the hassle of upkeep. Installation is straightforward, making it an ideal choice for both building professionals and knowledgeable homeowners. The track set accommodates a single wood door with a thickness ranging from 35 to 45 mm (1 3/8" to 1 3/4") and supports a weight of up to 100 kg (220 lbs). The height adjustment facility allows for easy modifications within a range of -3 to +3 mm, ensuring a perfect fit for various applications. Crafted from durable stainless steel, the components promise both aesthetic appeal and resilience. For those looking to install two doors, additional running gears will be required. The package includes an upper track rod, wall attachments, door stoppers, running gears, and a face spanner wrench, along with an installation plan for added convenience. Whether enhancing residential spaces or commercial environments, the Hafele Tritec track set is a reliable choice for contemporary sliding door solutions.
Solid Stainless Steel Track Set, Tritec
For 1 Sliding Wood Door, 2.3 m Length
Adjustment facility: Height adjustment facility: -3 – 3 mm, Height: (1/8") ±3 mm
Area of application: For 1 sliding wood door
For door material: wood
For door thickness: 35 – 45 mm
For door thickness max.: 1 3/4"
For door thickness min.: 1 3/8"
For door weight: ≤100 kg
Load bearing capacity: 220 lbs.
Material/finish: Stainless steel
Number of doors: 1.00
Order reference: Item numbers stated are valid for 1 pc. When ordering individual components, please indicate the desired quantity. Order hanger bolts separately.
Running position: Top

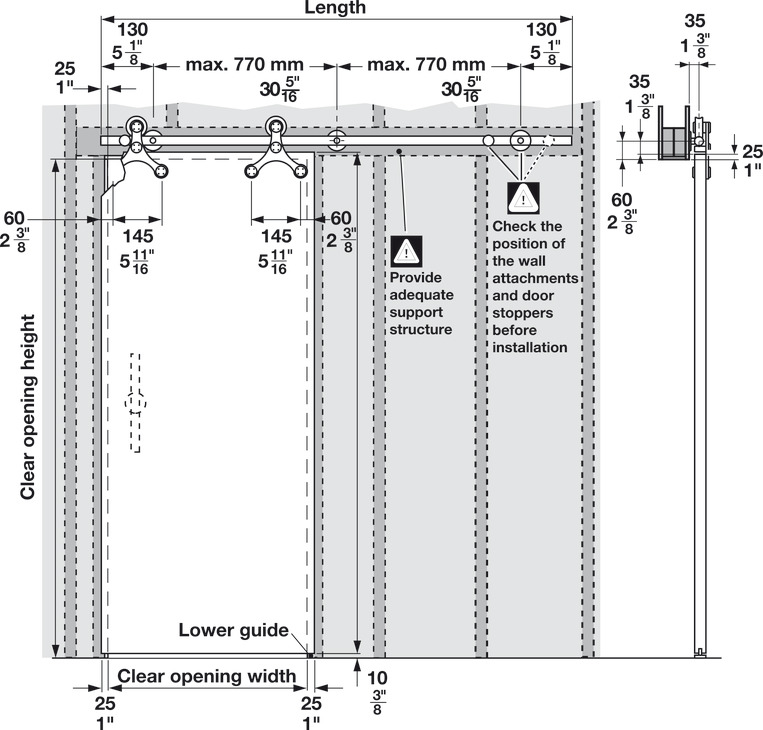

Supplied with: Upper track rod 3-4 wall attachments 2 door stoppers 2 running gears Lower guide Face spanner wrench Installation plan included in fitting set, also available for planning and execution upon request
