Hafele 942.41.000 Sliding Door Hardware, Hawa Super 500/B, set offers an innovative top hung system designed specifically for single and bypassing sliding wood doors. This robust hardware ensures smooth and effortless operation, thanks to its vertically adjustable features that allow height adjustments from -2 to +2 mm, accommodating various installation requirements. Engineered for durability, the system excels in wear and tear resistance, making it a reliable choice for heavy usage. Capable of supporting door weights up to 500 kg (approximately 1100 lbs.), it is suitable for a wide range of applications. The installation is straightforward with a recessed suspension bracket, and the system is designed for ceiling installation, ensuring a clean aesthetic. Included in the set are two running gears, two suspension brackets with a support carriage, M12 hanger bolt, two spring buffers for recess mounting, and a floor guide, providing everything needed for a comprehensive setup. The Hafele Hawa Super 500/B is perfect for those seeking a functional yet elegant solution for their sliding doors, with a minimum door thickness of 1 3/8". For two-leaf sliding doors, simply order two sets to enhance your space seamlessly.
Sliding Door Hardware, Hawa Super 500/B, set
Top Hung System, without double running track
Adjustment facility: Height adjustment facility: -2 – 2 mm, Height ±2 mm
Area of application: For single and bypassing sliding wood doors
Controller installation options: Ceiling installation
Door processing: With recess
For door material: wood
For door thickness min.: 1 3/8"
For door weight: ≤500 kg

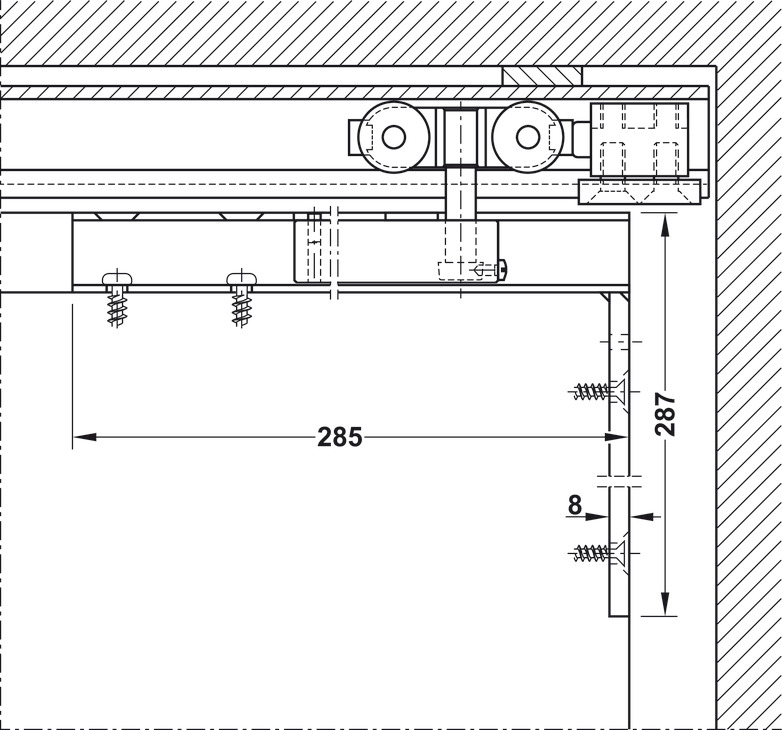

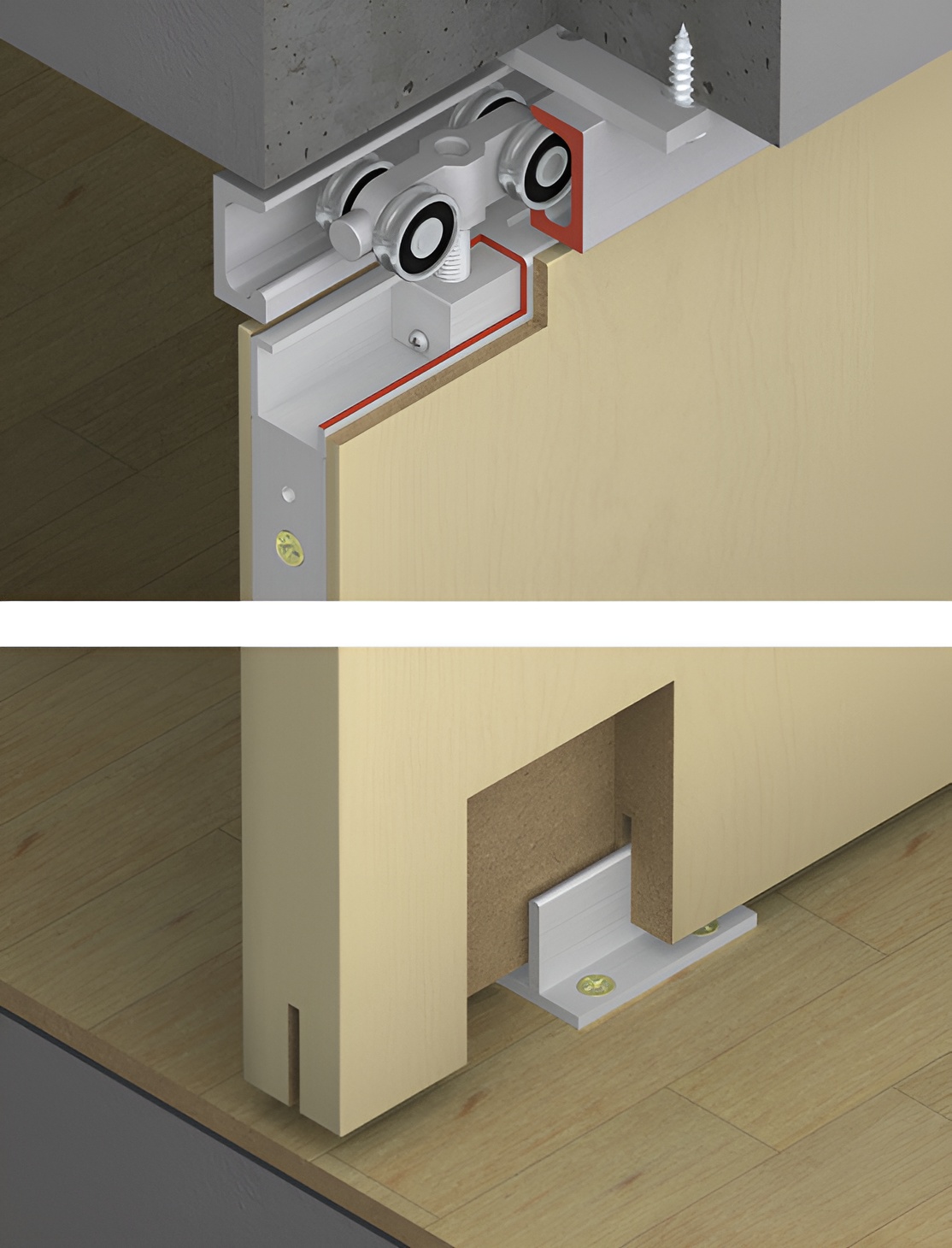

Installation: Suspension with recessed suspension bracket
Load bearing capacity: 1100 lbs.
Max. door weight: 1,100.00 lb
Model: 500 B
Number of doors: 1.00
Number of doors per system max.: 1 to 2
Order reference: Order 2 sets for 2-leaf sliding doors.
Running position: Top
Suitable for: Minimum installation height

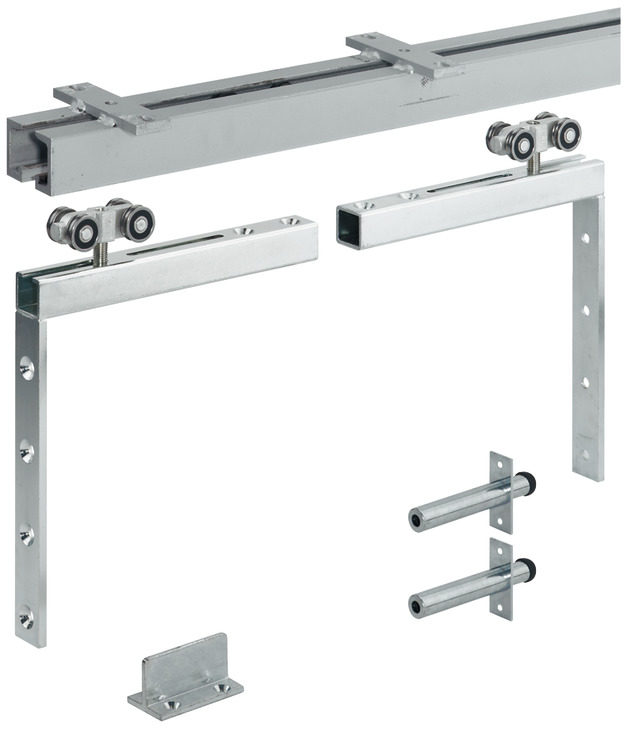

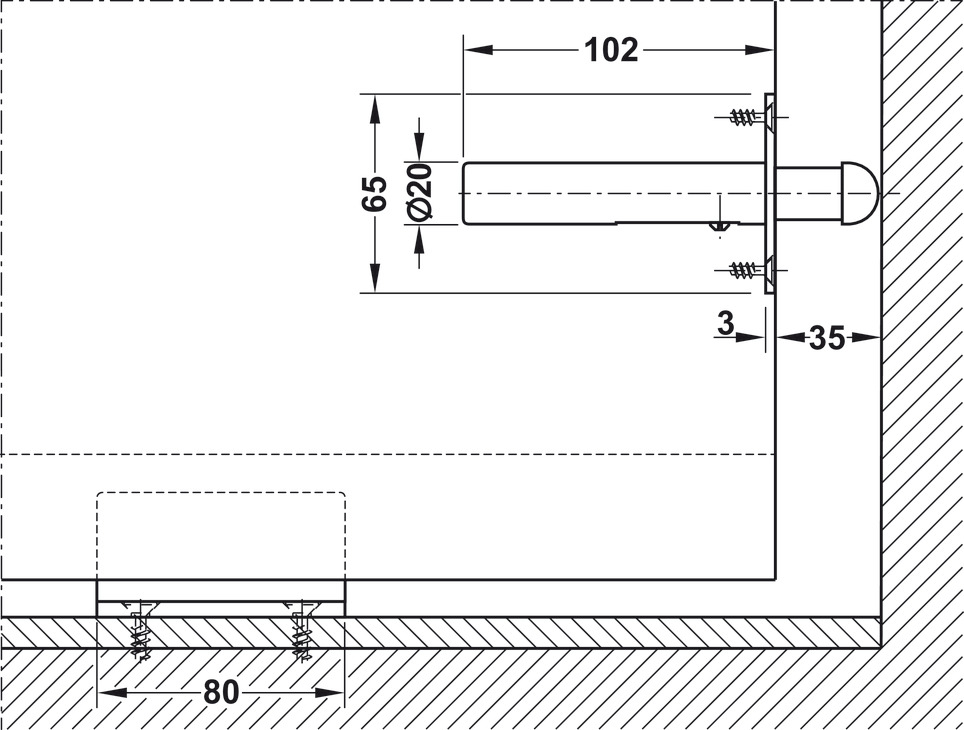

Supplied with: 2 running gears 2 suspension brackets with support carriage and M12 hanger bolt 2 spring buffers for recess mounting in door leaf 1 floor guide
