Hafele 942.51.721 Upper Guide Channel, 25 x 25 (1" x 1") offers a reliable solution for interior sliding doors, ensuring smooth and rattle-free operation. Designed for use exclusively with steel tracks, this upper guide channel measures 2.1 meters (6' 10 11/16") in length, making it suitable for doors with a height of up to 7' 10 1/2". The channel accommodates doors with thicknesses ranging from a minimum of 1 3/16" to a maximum of 2 3/8", providing versatility for various applications. The single-track version simplifies installation, with a straightforward mortise setup that ensures the running gear fits tightly around the casing. It is essential that the weight of the sliding door is supported by the casing above the wheel, promoting stability and performance. With its easy installation process, the Hafele Upper Guide Channel is ideal for building professionals and knowledgeable homeowners looking to enhance their interior spaces. Additionally, it ships conveniently via UPS, making it a practical choice for those in need of quick and efficient solutions. Trust in Hafele's commitment to quality and innovation for your next project.

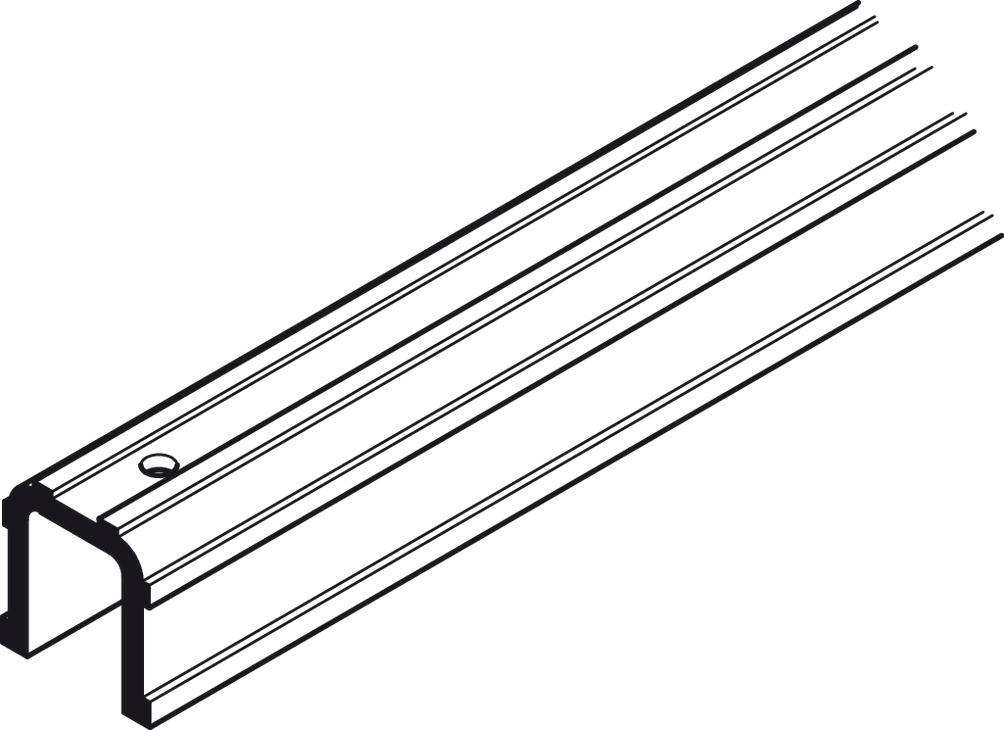

Upper Guide Channel, 25 x 25 (1" x 1")
Straightaway 115, 2.1 m Length
For door height (inches): 7' 10 1/2"
For door thickness max.: 2 3/8"
For door thickness min.: 1 3/16"

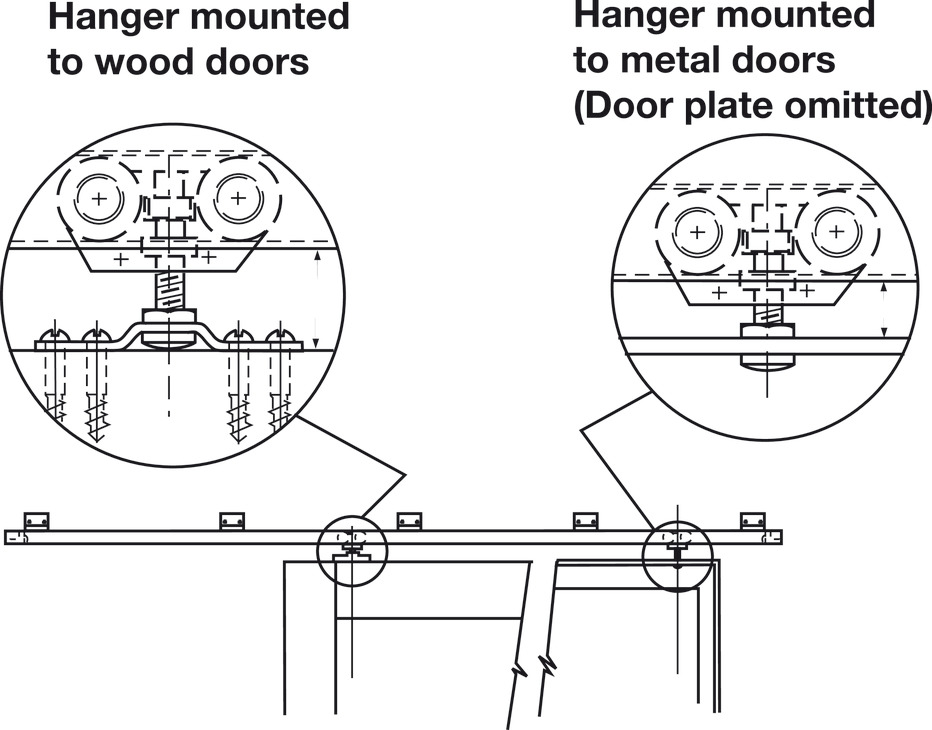

Installation: Simple installation Mortise for lower running gear must fit tight around the running gear’s casing Weight of sliding door must be carried on top of casing above the wheel
Length: 2,100 mm
Length (inch): 6’ 10 11/16"
Product type: Upper Guide Channel
Track version: Single
